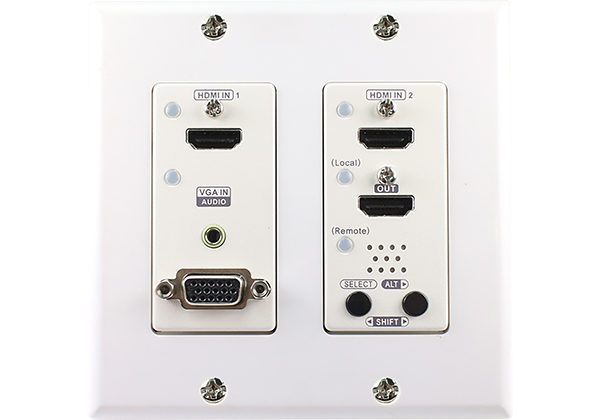

EVBMV-A1391WL
Wall Plate 4K HDBaseT Transmitter with 3-Input Switch, 100 m (PoC)
The EVBMV-A1391WL is a metal wall-plate transmitter accepting two HDMI inputs and a VGA input with analog stereo audio. It combines the selected source onto one CAT.5e/6/7 cable running to a remote HDBaseT receiver, and can also drive a local HDMI output. It suits meeting rooms and classrooms where laptops of mixed vintage plug in at the wall.
HDBaseT Extenders
Uncompressed HD and 4K video over one CAT.x cable, together with IR, RS-232 and Ethernet on supported models. Wall-plate, compact and multi-output transmitters for meeting rooms and AV installs.
EVBMV-A1391WL
Wall Plate 4K HDBaseT Transmitter with 3-Input Switch, 100 m (PoC)
The EVBMV-A1391WL is a metal wall-plate transmitter accepting two HDMI inputs and a VGA input with analog stereo audio. It combines the selected source onto one CAT.5e/6/7 cable running to a remote HDBaseT receiver, and can also drive a local HDMI output. It suits meeting rooms and classrooms where laptops of mixed vintage plug in at the wall.
EVBMV-A1371WL
Wall Plate 4K HDBaseT Transmitter with 3-Input Switch, 70 m (PoC)
The EVBMV-A1371WL is a metal wall-plate transmitter with two HDMI inputs and one VGA input with analog stereo audio. The selected source travels over one CAT.5e/6/7 cable to a remote HDBaseT receiver, with a local HDMI output also provided. It is aimed at meeting rooms and classrooms that need a single wall connection point for several source types.
EVBMN-M110
4K HDMI HDBaseT Extender Set with IR, Serial and LAN, 100 m (PoC)
The EVBMN-M110 set (EVBMN-110L transmitter and EVBMN-110R receiver) uses HDBaseT to move uncompressed HDMI to a remote display. IR, serial and a three-port Ethernet switch travel on the same cable, so source and display can be controlled and networked from either end. It is intended for conference rooms, digital signage and home AV installations.
EVBMN-M107
4K HDMI HDBaseT Extender Set with IR, Serial and LAN, 70 m (PoC)
The EVBMN-M107 set (EVBMN-107L transmitter and EVBMN-107R receiver) uses HDBaseT to carry uncompressed HDMI to a remote display. IR, serial and a three-port Ethernet switch share the same cable, allowing control and networking at both ends. It suits conference rooms, digital signage and home AV systems with runs of up to 70 m.

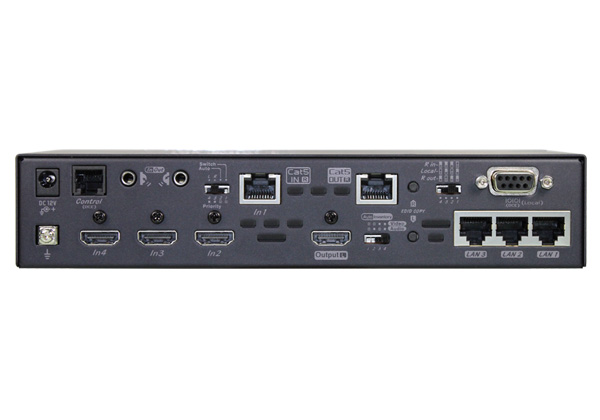

EVBMN-1492X
4K HDMI HDBaseT Repeater with Auto Switch, IR, LAN and Serial, 100 m
The EVBMN-1492X selects among three HDMI inputs and one HDBaseT input, then outputs to a local HDMI display and a remote HDBaseT receiver. Because it accepts HDBaseT in, it can also extend an existing run beyond a single cable limit. IR, serial and LAN pass-through make it a fit for boardrooms, classrooms and small offices.

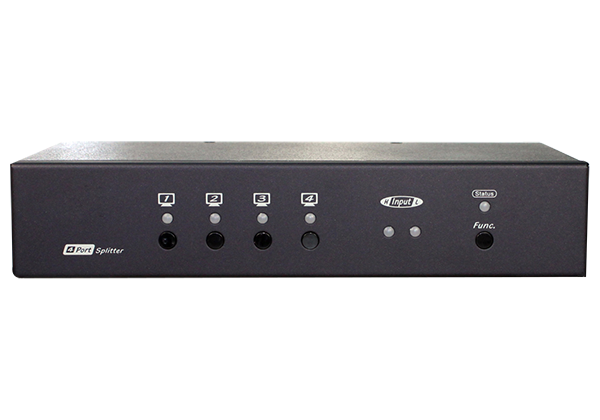

EVBM-1094L
HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter and Local Out, 100 m (PoC)
The EVBM-1094L auto-switches between two HDMI sources and distributes the picture to one local display and four remote HDBaseT receivers. Uncompressed 1080p video runs up to 100 m per CAT.5e/6/7 link. It is designed for offices, boardrooms and classrooms where one source must reach several screens.
EVBM-1074L
HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter and Local Out, 70 m (PoC)
The EVBM-1074L auto-switches between two HDMI sources and distributes the picture to one local display and four remote HDBaseT receivers. Uncompressed 1080p video runs up to 70 m per CAT.5e/6/7 link. It is designed for offices, boardrooms and classrooms where one source must reach several screens.

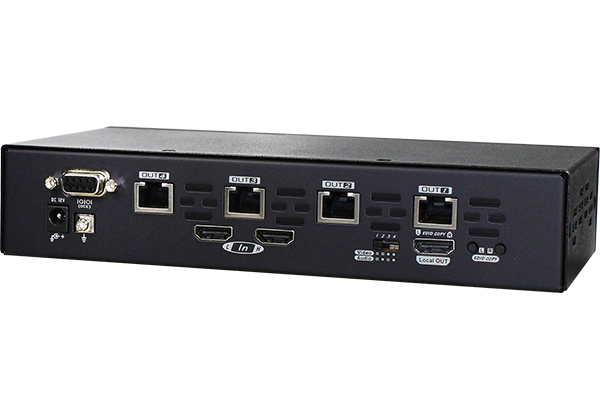

EVBM-S1094L
HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter, Serial Control, 100 m (PoC)
The EVBM-S1094L selects between two HDMI inputs and distributes video to a local display and four remote HDBaseT receivers, each up to 100 m at 1080p. A DB9 serial port with adjustable baud rate lets it integrate with central control panels. It suits boardrooms, classrooms and offices with control-system integration.
No products match these filters.
Choosing the right model
HDBaseT keeps latency low because the video is not compressed. Many sets can also send power over the same cable (PoC), which saves a power outlet at the display end. Use solid-core CAT.6 or better for the longest runs.
