HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter, Serial Control, 100 m (PoC)
Two-input HDMI switcher with four HDBaseT outputs, a local output and DB9 serial control for 100 m runs.
EVBM-S1094L
- Auto-switches between two video inputs and feeds a local display and four remote displays over HDBaseT.
- Auto-switch behaviour requires no learning for first-time users.
- Uncompressed HDBaseT video with low latency.
- Inputs support resolutions up to 1080p at 60 Hz (4:4:4); HDCP 1.4 compliant.
- DB9 serial control with adjustable baud rate for central control panels.
- Up to 100 m at 1080p on each of the four RJ45 outputs.
- PoC allows power to flow from transmitter to receiver or the reverse.

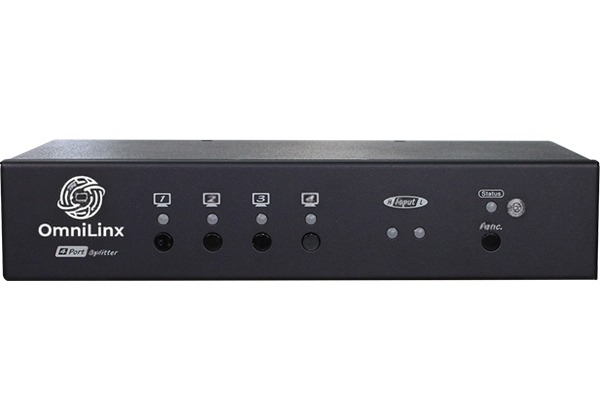

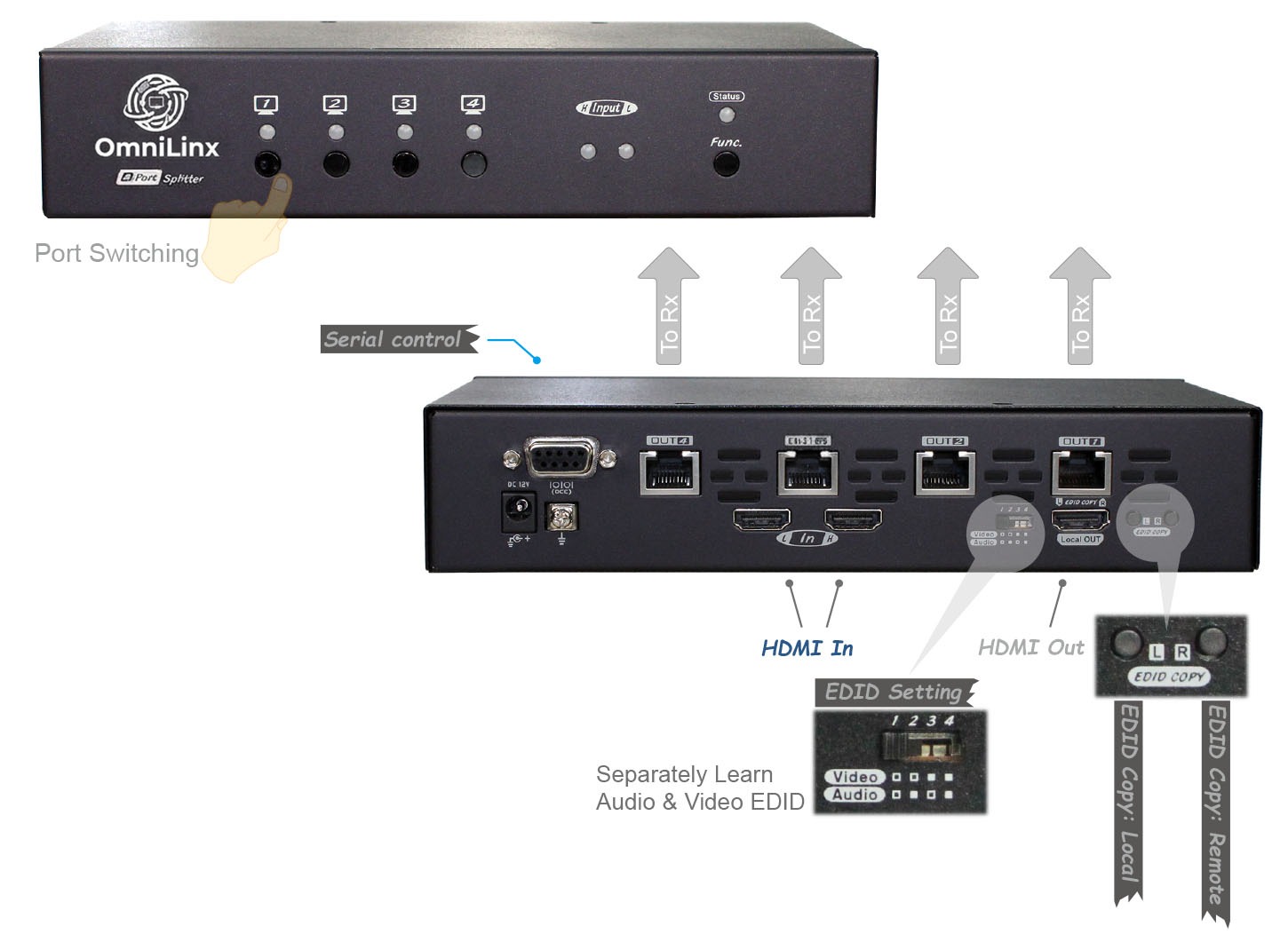

- Front IR sensor, EDID copy buttons and EDID slide switch.
RS-232 ControlIR ControlEDID ManagementHDCP 1.4
Overview

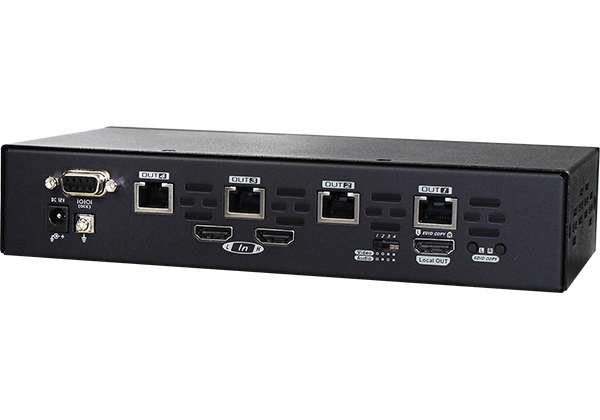

HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter, Serial Control, 100 m (PoC)
The EVBM-S1094L selects between two HDMI inputs and distributes video to a local display and four remote HDBaseT receivers, each up to 100 m at 1080p. A DB9 serial port with adjustable baud rate lets it integrate with central control panels. It suits boardrooms, classrooms and offices with control-system integration.
At a glance
- Category
- HDBaseT Extenders
- Video interface
- HDMI
- Ports
- 2 ports
- Max. resolution
- Full HD (1080p@60Hz)
- Distance
- 100M@1080P
- HDCP
- HDCP 1.4
Features
- Auto-switches between two video inputs and feeds a local display and four remote displays over HDBaseT.
- Auto-switch behaviour requires no learning for first-time users.
- Uncompressed HDBaseT video with low latency.
- Inputs support resolutions up to 1080p at 60 Hz (4:4:4); HDCP 1.4 compliant.
- DB9 serial control with adjustable baud rate for central control panels.
- Up to 100 m at 1080p on each of the four RJ45 outputs.
- PoC allows power to flow from transmitter to receiver or the reverse.
- Front IR sensor, EDID copy buttons and EDID slide switch.
Specifications
| Model Name | Transmitter |
|---|---|
| EVBM-S1094L | |
| MAX.Resolution | Full HD (1080p@60Hz) |
| Video Input | HDMI x 2 |
| Video Output | RJ-45 x 4 (Local) HDMI x 1 (HDBaseT) |
| IR Control | IR Sensor x 1 (Front) |
| Serial Control | DB9 x 1 |
| Slide Switch | EDID Setting x 1 |
| Push Buttons | Video Switch x 4 Func x 1 EDID Copy x 2 |
| LED Indicator | Status LED x 1 Input LED x 2 Output LED x 4 |
| HDCP Compliance | HDCP 1.4 |

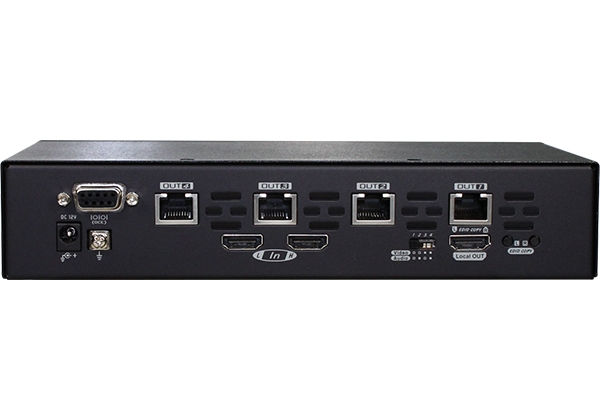

| HDBaseT Interface | RJ45 x 4 ( CAT.5e/6/7 ) |
| Extension Range | 100M@1080P |
| Power Supply | DC 12V ( PoC ) |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 35 x 190 x 125 |
| Weight (g) | 1250 |
Specifications are subject to change. Please confirm critical values with us before ordering.

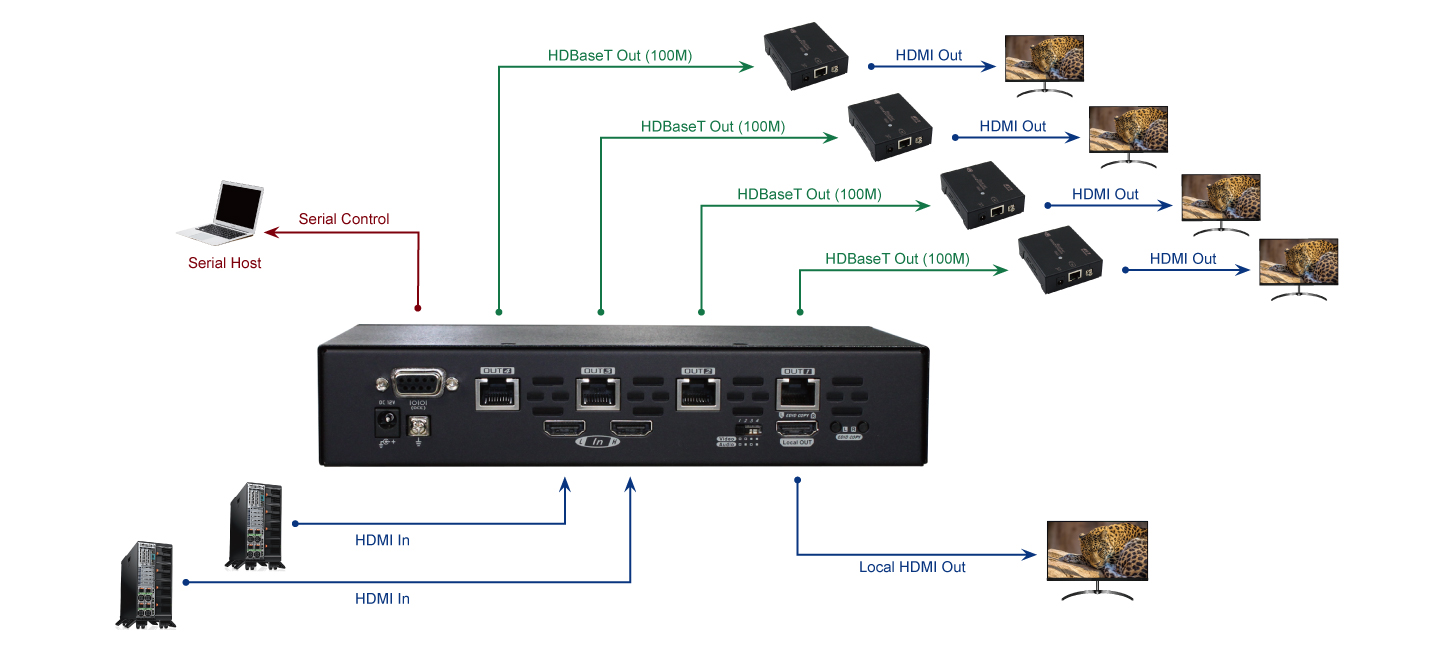

Connection
