4K Dual-Display DisplayPort KVM Extender over Multi-Mode Fiber, 1 km
Fiber KVM extender carrying two DisplayPort displays, USB 2.0, audio, IR and serial up to 1 km.
FXXPS-M043 New
- Remote access to a dual-monitor PC over two duplex SC multi-mode fiber cables (OM3, 50/125 um) up to 1 km.
- Two DisplayPort channels at up to 4K at 30 Hz (4:4:4).
- USB 2.0 extension with one USB-B and four USB-A ports; the front USB ports give easy access.
- IR extension from console unit to computer unit.
- RS-232 serial extension from 9600 to 115200 bps, with baud rate selectable by OSD and buttons.
- EDID pass-through and HDCP 1.4 compliance.
- Smart audio extension automatically embeds and extracts audio.
- Plug and play for Windows, Mac, Linux and Chrome OS; powered from 12 to 48 V DC (PoC); fiber isolates EMI and electrical noise.
Dual Monitor4K@30HzBidirectional IR ExtensionRS-232 ExtensionUSB 2.0USB HIDMulti-Mode FiberHDCP 1.4
Overview
4K Dual-Display DisplayPort KVM Extender over Multi-Mode Fiber, 1 km

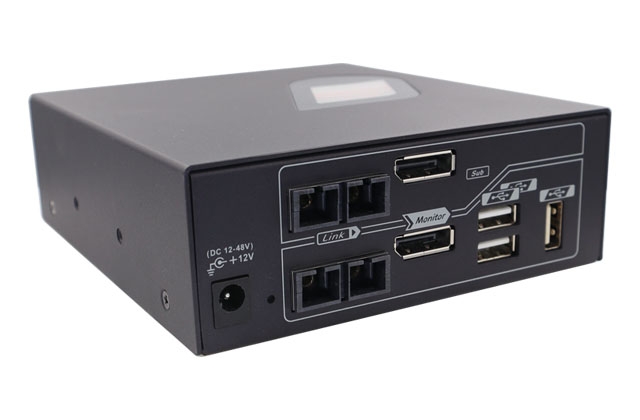

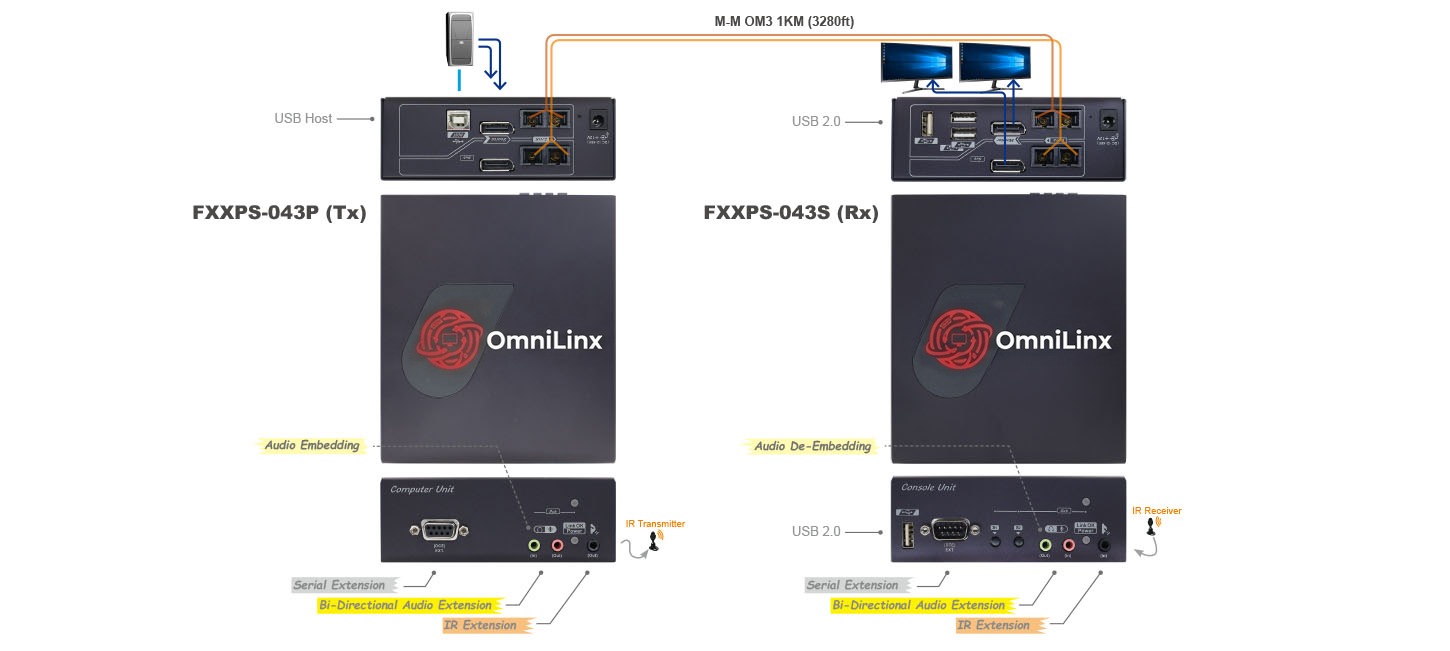

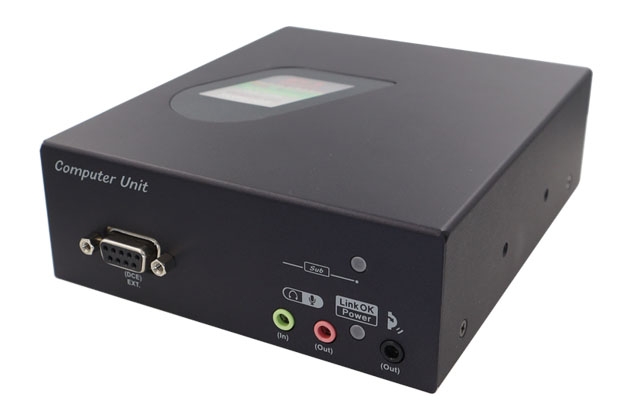

The FXXPS-M043 (FXXPS-043P transmitter, FXXPS-043S receiver) links a dual-monitor PC to a remote workstation over two duplex SC multi-mode fiber cables. It carries two DisplayPort streams, USB 2.0, audio, IR and RS-232. It is suited to control rooms and industrial sites where electrical isolation matters.
At a glance
- Category
- Fiber Extenders
- Video interface
- DisplayPort
- Max. resolution
- 3840 x 2160@30Hz (4:4:4)
- Distance
- 1 KM ( SC, Multi-Mode )
- HDCP
- HDCP 1.4
Features
- Remote access to a dual-monitor PC over two duplex SC multi-mode fiber cables (OM3, 50/125 um) up to 1 km.
- Two DisplayPort channels at up to 4K at 30 Hz (4:4:4).
- USB 2.0 extension with one USB-B and four USB-A ports; the front USB ports give easy access.
- IR extension from console unit to computer unit.
- RS-232 serial extension from 9600 to 115200 bps, with baud rate selectable by OSD and buttons.
- EDID pass-through and HDCP 1.4 compliance.
- Smart audio extension automatically embeds and extracts audio.
- Plug and play for Windows, Mac, Linux and Chrome OS; powered from 12 to 48 V DC (PoC); fiber isolates EMI and electrical noise.
Specifications
| Model Name | FXXPS-M043 | |
|---|---|---|

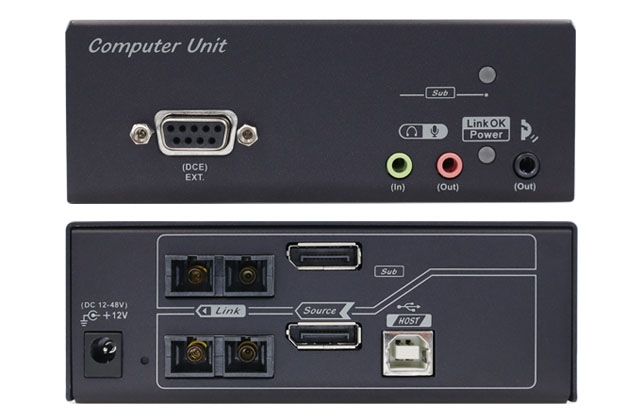

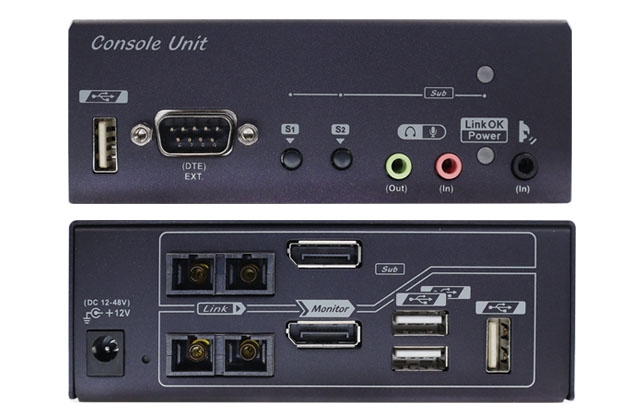

| FXXPS-043P ( Transmitter ) | FXXPS-043S ( Receiver ) | |
| MAX. Resolution | 3840 x 2160@30Hz (4:4:4) | |
| Video Extension | DisplayPort x 2 ( In ) | DisplayPort x 2 ( Out ) |
| USB 2.0 Extension | USB-B x 1 | USB-A x 4 |
| Audio Extension | 3.5mm SPK Jack x 1 ( In ) ( Audio Embed Function ) | 3.5mm SPK Jack x 1 ( Out ) ( Audio Extract Function ) |
| Microphone Extension | 3.5mm MIC Jack x 1 ( Out ) ( Audio Extract Function ) | 3.5mm MIC Jack x 1 ( In ) ( Audio Embed Function ) |
| IR Extension | 3.5mm IR Jack x 1 ( Out ) | 3.5mm IR Jack x 1 (In ) |
| Serial Extension | DB-9 x 1 ( RS-232 DCE ) | DB-9 x 1 ( RS-232 DTE ) |
| Push Buttons | Reset x 1 | Reset x 1 Baud Rate Button x 2 |
| LED Indicator | Power / Connection Status x 2 | Power / Connection Status x 2 |
| HDCP Compliance | HDCP 1.4 | |
| Link Port ( 1.25Gbps, 850nm ) | Duplex SC x 2 ( 50/125μm, OM3 ) | Duplex SC x 2 ( 50/125μm, OM3 ) |
| Maximum Distance | 1 KM ( SC, Multi-Mode ) | |
| Power Supply | DC 12V~48V ( PoC ) | DC 12V~48V ( PoC ) |
| Operation Environment | 0~40°C, Humidity<80% | |
| Storage Temperature | -20~60°C | |
| Enclosure | Aluminum | |
| H x W x D (mm) | 44 x 122 x 140 | 44 x 122 x 140 |
| Weight (g) | 400 | 450 |
Specifications are subject to change. Please confirm critical values with us before ordering.

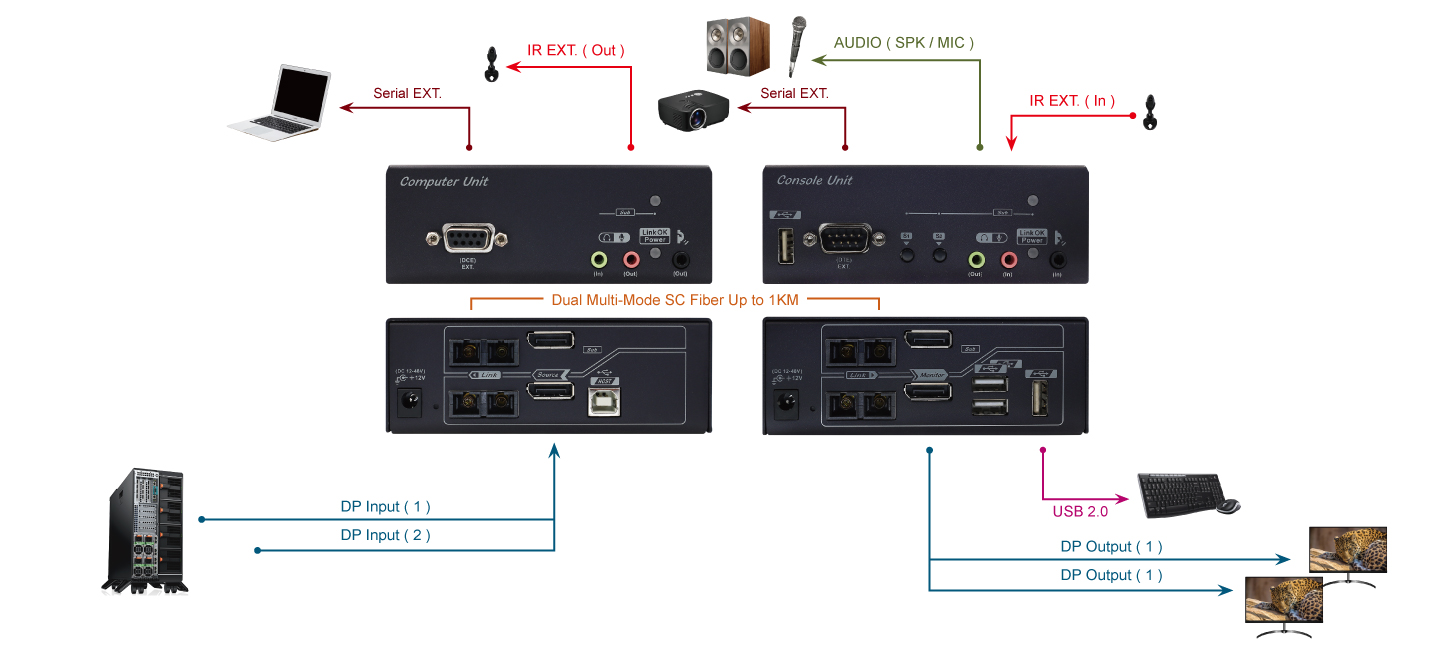

Connection
