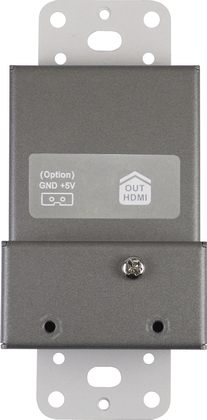

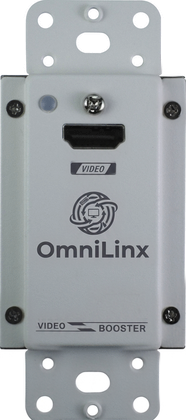

US Wall Plate 4K HDMI Video Booster Transmitter
Single-gang US wall plate that boosts an HDMI signal up to 15 m at 4K.
VBSTM-AK01LW
- Extends HDMI up to 15 m at 4K2K (3840 x 2160) or 25 m at 1080p over HDMI cable.
- Automatic EQ adjusts sharpness for clarity.
- Compatible with common resolutions including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA and XGA.
- HDMI v1.4b compliant; HDTV, 3D HDTV, HDCP and Blu-ray ready.
- Plug and play; no software needed.
- Powered by the HDMI source, with an optional power port on the rear plate.
- Fits standard US 1-gang Decora openings, and is also compatible with 2, 3 and 4-gang boxes.
- Metal enclosure with a power LED.
4K@60Hz 4:2:04K@30HzHDCP 1.4
Overview
US Wall Plate 4K HDMI Video Booster Transmitter
The VBSTM-AK01LW is the transmitter of a wall-plate HDMI booster pair (VBSTM-AK01RW receiver) for standard US Decora openings. It conditions the HDMI signal for runs of up to 15 m at UHD or 25 m at Full HD over HDMI cable. It suits conference rooms and AV installations that need clean wall connections.
At a glance
- Category
- Wall Plates & Table Boxes
- Video interface
- HDMI
- Max. resolution
- UHD (3840 x 2160)
- Distance
- 15M @ UHD (3840 x 2160), 25M @ Full HD (1920 x 1080)
Features
- Extends HDMI up to 15 m at 4K2K (3840 x 2160) or 25 m at 1080p over HDMI cable.
- Automatic EQ adjusts sharpness for clarity.
- Compatible with common resolutions including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA and XGA.
- HDMI v1.4b compliant; HDTV, 3D HDTV, HDCP and Blu-ray ready.
- Plug and play; no software needed.
- Powered by the HDMI source, with an optional power port on the rear plate.
- Fits standard US 1-gang Decora openings, and is also compatible with 2, 3 and 4-gang boxes.
- Metal enclosure with a power LED.
Specifications
| Model Name | VBSTM-AK01LW | |
|---|---|---|
| VBSTM-AK01LW (Transmitter) | VBSTM-AK01RW (Receiver) | |
| Front Plate | HDMI x 1 (for source) | HDMI x 1 (for monitor) |
| Rear Plate | HDMI x 1 (for monitor) | HDMI x 1 (for source) |
| Video Resolution (Max.) | UHD (3840 x 2160) | |
| Extension Distance (Max.) | 15M @ UHD (3840 x 2160) 25M @ Full HD (1920 x 1080) | |
| LED Indicator | Power (Single color) | |
| TMDS Clock Rate (Max.) | 300 MHz | |
| Power Supply | Power by HDMI Input (Optional Power Supply Port In The Rear Plate) | |
| Enclosure | Metal | |
| Weight (g) | 106 | |
| H x W x D (mm) | 22 x 51 x 80 | |
Specifications are subject to change. Please confirm critical values with us before ordering.

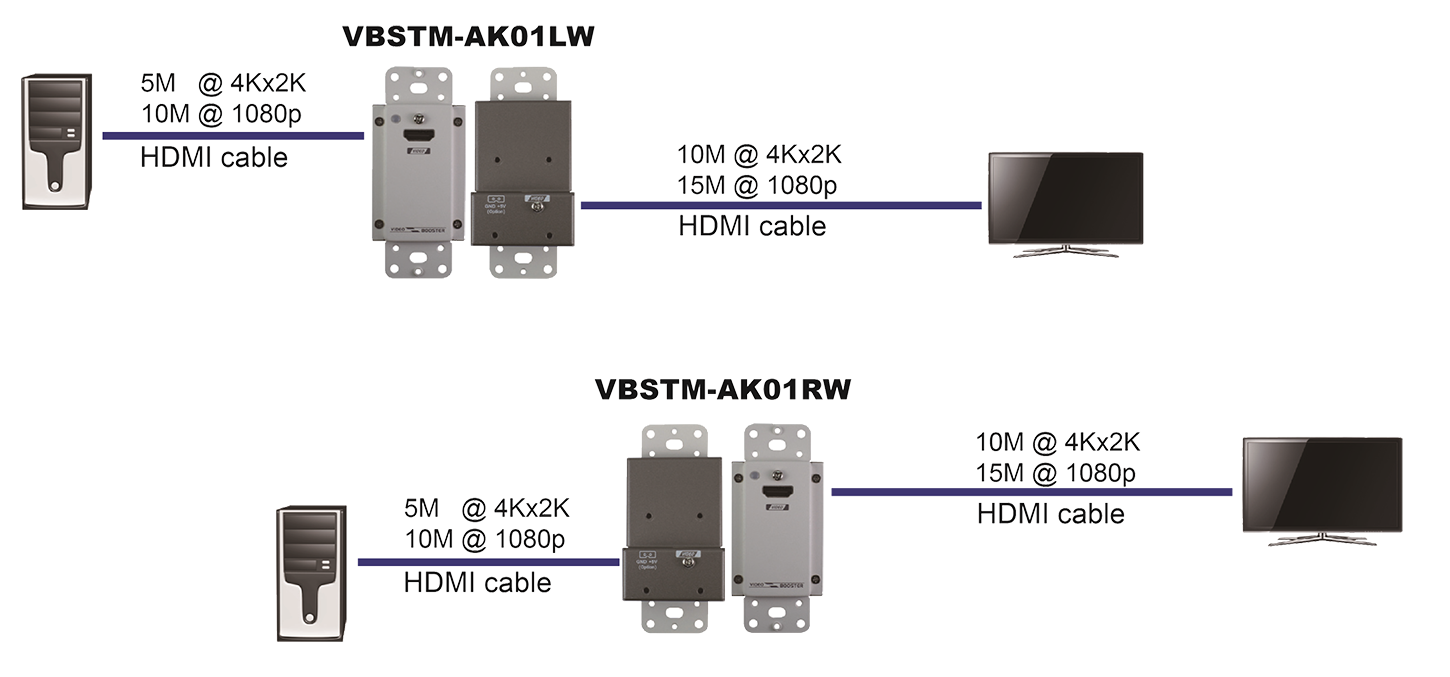

Connection
