16-Port VGA KVM Switch with OSD, PS/2, USB and Audio
Rack-mounted 2U KVM switch for sixteen VGA computers, with on-screen menu and cascading.
UCANV-116D
- Sixteen VGA computer ports, each on a USB combo connection, with stereo audio input and output on every port.
- Console side offers VGA, PS/2, two USB HID ports and audio, and computer side supports USB and PS/2 hosts.
- 2U rack-height chassis; cascading expands the number of computers that can be managed.
- On-screen display for naming computers (up to 14 characters), selecting by name, checking status and auto scan.
- Four-character password per computer protects against unauthorised access.
- Control by hotkey, serial, OSD or the front-panel push buttons.
- Resolution up to 1920x1440 at 60Hz (4:4:4), DDC2B compatible.
- Programmable scan filters skip unused ports; settings and names are kept in non-volatile memory.
- Keyboard state is saved and restored on each switch, and Sun keyboard emulation is supported.
- Secure-fit cables are used for the computer connections. A version with a built-in power adapter is also available.
USB HIDHotkey Control
Overview
16-Port VGA KVM Switch with OSD, PS/2, USB and Audio

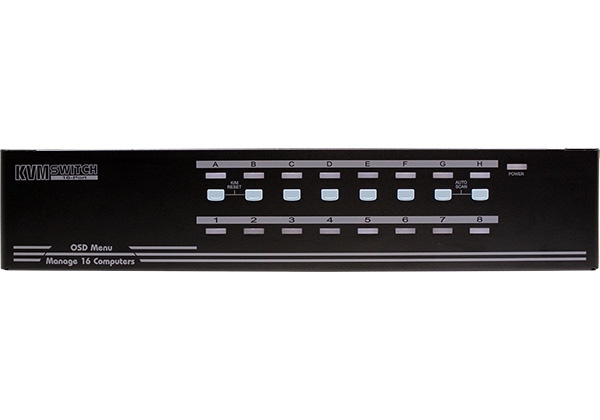

The UCANV-116D lets one keyboard, mouse and VGA monitor, plus stereo audio, control up to sixteen computers from a 2U rack unit. An on-screen display handles naming, selection, scanning and password protection. Units can be cascaded to grow the system, making it a fit for server rooms where rack space is limited.
At a glance
- Category
- KVM Switches
- Video interface
- VGA
- Ports
- 16 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 ), DDC2B
Features
- Sixteen VGA computer ports, each on a USB combo connection, with stereo audio input and output on every port.
- Console side offers VGA, PS/2, two USB HID ports and audio, and computer side supports USB and PS/2 hosts.
- 2U rack-height chassis; cascading expands the number of computers that can be managed.
- On-screen display for naming computers (up to 14 characters), selecting by name, checking status and auto scan.
- Four-character password per computer protects against unauthorised access.
- Control by hotkey, serial, OSD or the front-panel push buttons.
- Resolution up to 1920x1440 at 60Hz (4:4:4), DDC2B compatible.
- Programmable scan filters skip unused ports; settings and names are kept in non-volatile memory.
- Keyboard state is saved and restored on each switch, and Sun keyboard emulation is supported.
- Secure-fit cables are used for the computer connections. A version with a built-in power adapter is also available.
Specifications
| Model Name | UCANV-116D |
|---|---|

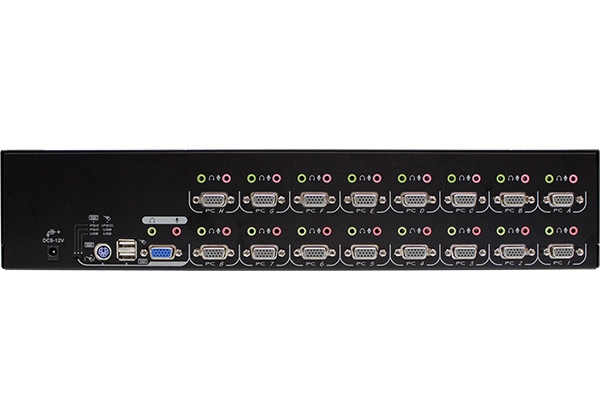

| Computer/Server Ports (input) | VGA x 16 ( USB Combo Port ) Audio in x 16 Audio out x 16 |
| Console Ports (output) | VGA x 1 PS/2 x 1 USB HID Type A x 2 Audio in x 1 Audio out x 1 |
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ), DDC2B |
| Push Buttons | Port Selection x 8 |
| Control Methods | Hotkey / Serial / OSD / Push Button |
| Computer Naming | 14-Character |
| Hot Plug-and-Play | Yes |
| Security Control | 4-Character Password Per CPU |
| On-Screen Display (OSD) | Yes |
| LED Indicators | PC-Ready x 16, PC-Select x 16, Power x 1 |
| Operation Environment | DC 9~12V |
| Storage Temperature | 0~40°C, Humidity<80% |
| Power Supply | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | XX x XXX x XXX |
Specifications are subject to change. Please confirm critical values with us before ordering.
