German Wall Plate VGA Extender over CAT.x, 165 m
German-format wall-plate VGA extender sending video up to 165 m over CAT5/5e/6 UTP.
EV-MG20WW
- Links the transmitter and receiver over CAT5, CAT5e or CAT6 UTP cable.
- Extends video up to 165 m.
- Resolutions up to 1920 x 1080 (Full HD) and 1920 x 1200 (WUXGA), including XGA, SXGA, UXGA and WSXGA.
- EDID copy selects the best resolution for the connected display.
- EQ adjustment tunes sharpness for clear images.
- Plug and play on Windows, Mac, Sun and Linux; no driver or software needed.
- Wall-mount design saves space and simplifies installation.
- Suited to public displays, exhibits, retail, courtrooms and stock tickers.
EDID Management
Overview
German Wall Plate VGA Extender over CAT.x, 165 m

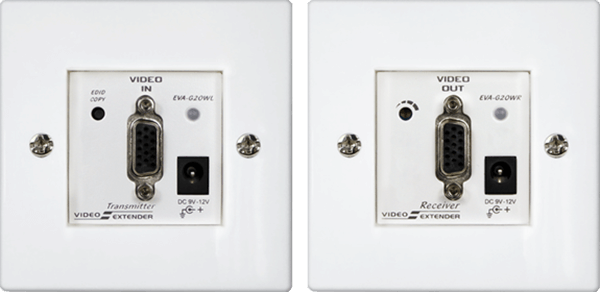

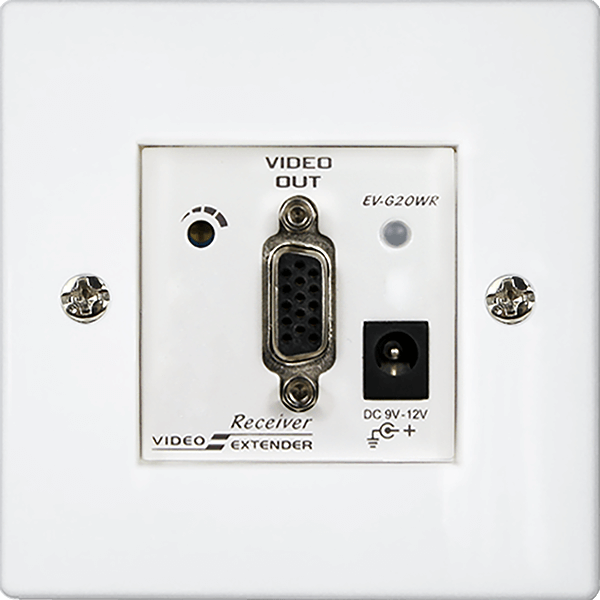

The EV-MG20WW (EV-G20WL transmitter, EV-G20WR receiver) is a wall-plate pair that carries VGA video over UTP cable to displays up to 165 m away. It supports resolutions up to Full HD and WUXGA and installs without drivers. It suits retail, courtrooms, exhibits and public information displays.
At a glance
- Category
- Wall Plates & Table Boxes
- Video interface
- VGA
- Max. resolution
- 1920 x 1080 (Full HD)
- Distance
- 165M
Features
- Links the transmitter and receiver over CAT5, CAT5e or CAT6 UTP cable.
- Extends video up to 165 m.
- Resolutions up to 1920 x 1080 (Full HD) and 1920 x 1200 (WUXGA), including XGA, SXGA, UXGA and WSXGA.
- EDID copy selects the best resolution for the connected display.
- EQ adjustment tunes sharpness for clear images.
- Plug and play on Windows, Mac, Sun and Linux; no driver or software needed.
- Wall-mount design saves space and simplifies installation.
- Suited to public displays, exhibits, retail, courtrooms and stock tickers.
Specifications
| Model Name | EV-MG20WW | |
|---|---|---|
| EV-G20WL (Transmitter) | EV-G20WR (Receiver) | |
| Input | HDB15 x 1 | RJ-45 x 2 |
| Output | RJ-45 x 2 | HDB15 x 1 |
| LED | Power / EDID Copy x 1 (Dual Color) | Power x 1 |
| Video Resolution (Max.) | 1920 x 1080 (Full HD) | |
| Extension Distance | 165M | |
| Power Supply | DC 9-12V | |
| Enclosure | Plastic | |
Specifications are subject to change. Please confirm critical values with us before ordering.
