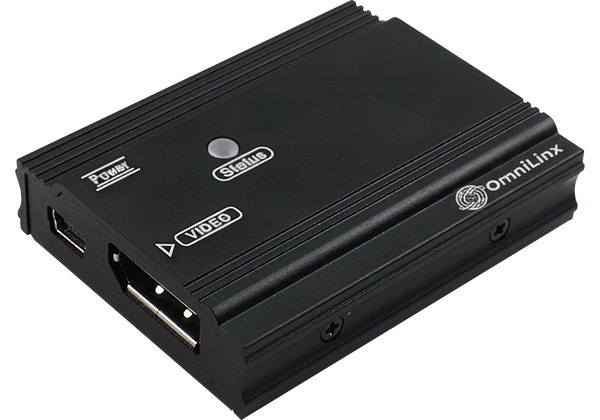

True 4K DisplayPort to HDMI 2.0 Converter
Active converter that turns a DisplayPort source into HDMI 2.0 output at up to 4K 60 Hz.
VKCPM-6G11
- Active conversion from DisplayPort to HDMI.
- HDMI 2.0 output at up to 4K 60 Hz (4:4:4), and 1080p with 12-bit Deep Color and 3D.
- TMDS clock rate up to 600 MHz.
- HDCP content protection supported.
- Enters power-saving mode automatically when the input signal is lost.
- Multi-color LED indicates status.
- Plug and play; compatible with resolutions from XGA to UHD.
- Metal and aluminum housing, powered by 5 V DC via Mini-USB.
4K@60Hz 4:4:44K@60Hz 4:2:04K@30HzHDCP 1.4
Overview
True 4K DisplayPort to HDMI 2.0 Converter

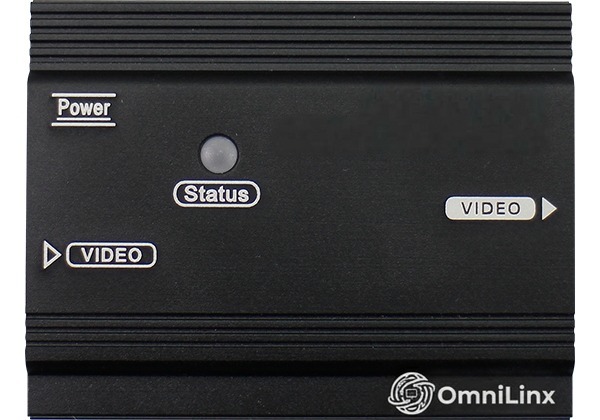

The VKCPM-6G11 is a compact active converter with one DisplayPort input and one HDMI 2.0 output. It lets DisplayPort computers drive HDMI displays at up to 3840 x 2160 at 60 Hz in 4:4:4. It is powered through Mini-USB and needs no configuration.
At a glance
- Category
- EDID, Boosters & Converters
- Video interface
- DisplayPort, HDMI
- Max. resolution
- 3840x2160@60Hz ( 4:4:4 )
- HDCP
- HDCP 1.4
Features
- Active conversion from DisplayPort to HDMI.
- HDMI 2.0 output at up to 4K 60 Hz (4:4:4), and 1080p with 12-bit Deep Color and 3D.
- TMDS clock rate up to 600 MHz.
- HDCP content protection supported.
- Enters power-saving mode automatically when the input signal is lost.
- Multi-color LED indicates status.
- Plug and play; compatible with resolutions from XGA to UHD.
- Metal and aluminum housing, powered by 5 V DC via Mini-USB.
Specifications
| Model Name | VKCPM-6G11 |
|---|---|
| MAX. Video Resolution | 3840x2160@60Hz ( 4:4:4 ) |

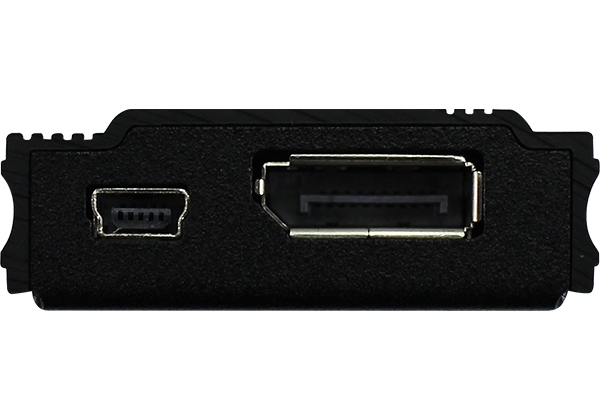

| Video Input | DisplayPort x 1 |

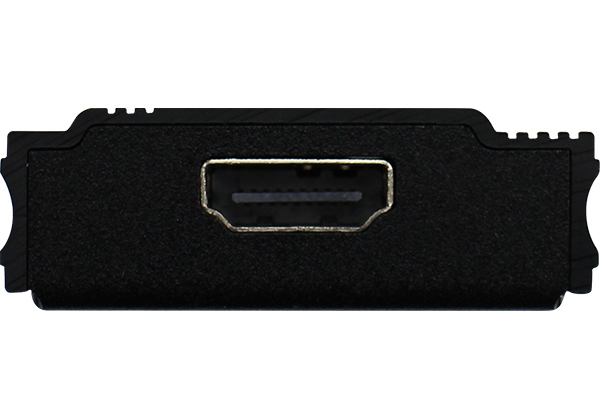

| Video Output | HDMI 2.0 x 1 |
| LED Indicator | Multi-Color x 1 |
| HDCP Compliance | HDCP 1.4 |
| Power Supply | DC 5V ( Mini-USB ) |
| Operating Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal + Aluminum |
| H x W x D (mm) | 15 x 47 x 58 mm |
| Weight (g) | 150 |
Specifications are subject to change. Please confirm critical values with us before ordering.

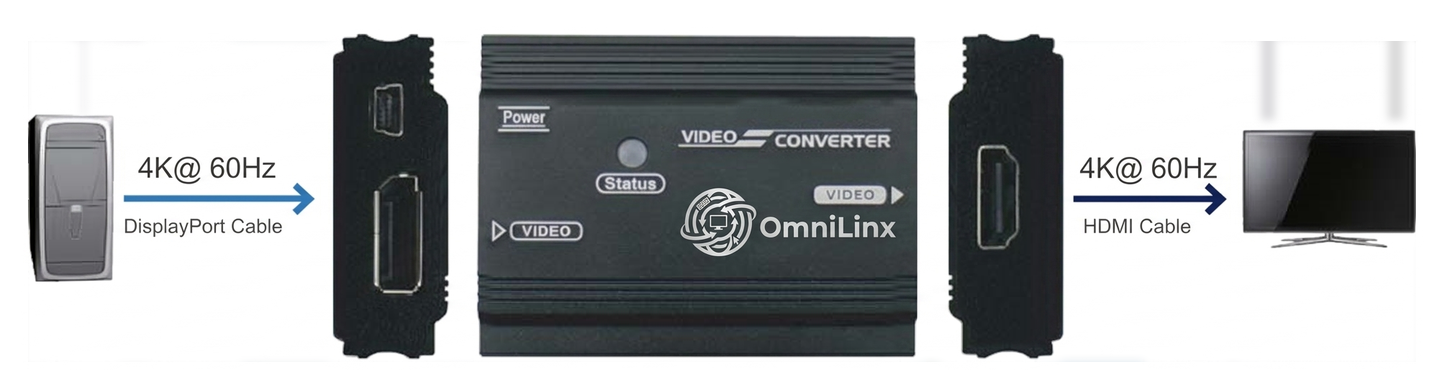

Connection
