Wall Plate 4K HDBaseT Transmitter with 3-Input Switch, 70 m (PoC)
Wall-plate HDBaseT transmitter that switches two HDMI sources and one VGA source onto a single CATx link.
EVBMV-A1371WL
- Carries HDMI or VGA with analog audio up to 70 m at 1080p and 35 m at 4K over HDBaseT.
- Resolutions reach UHD 3840 x 2160, at 30 Hz in 4:4:4 or 60 Hz in 4:2:0, and Full HD 1920 x 1080.
- Inputs: two HDMI and one VGA with analog stereo audio; outputs: one HDMI and one RJ45 HDBaseT port.
- Auto EQ adjusts sharpness for a clear picture over the cable run.
- Screen Shift Mode lets users reposition the image, and Resolution Alternation Mode helps when several similar video timings are detected.
- Source order can be set, and auto-sensing selects the most recently connected source.
- HDCP 1.4 compliant, with 3D video and Blu-ray support over a single CATx cable.
- PoC (power over cable), RJ11 serial control and EDID copy button; no drivers or software are needed.
4K@60Hz 4:2:04K@30HzRS-232 ControlEDID ManagementMulti-FormatHDCP 1.4

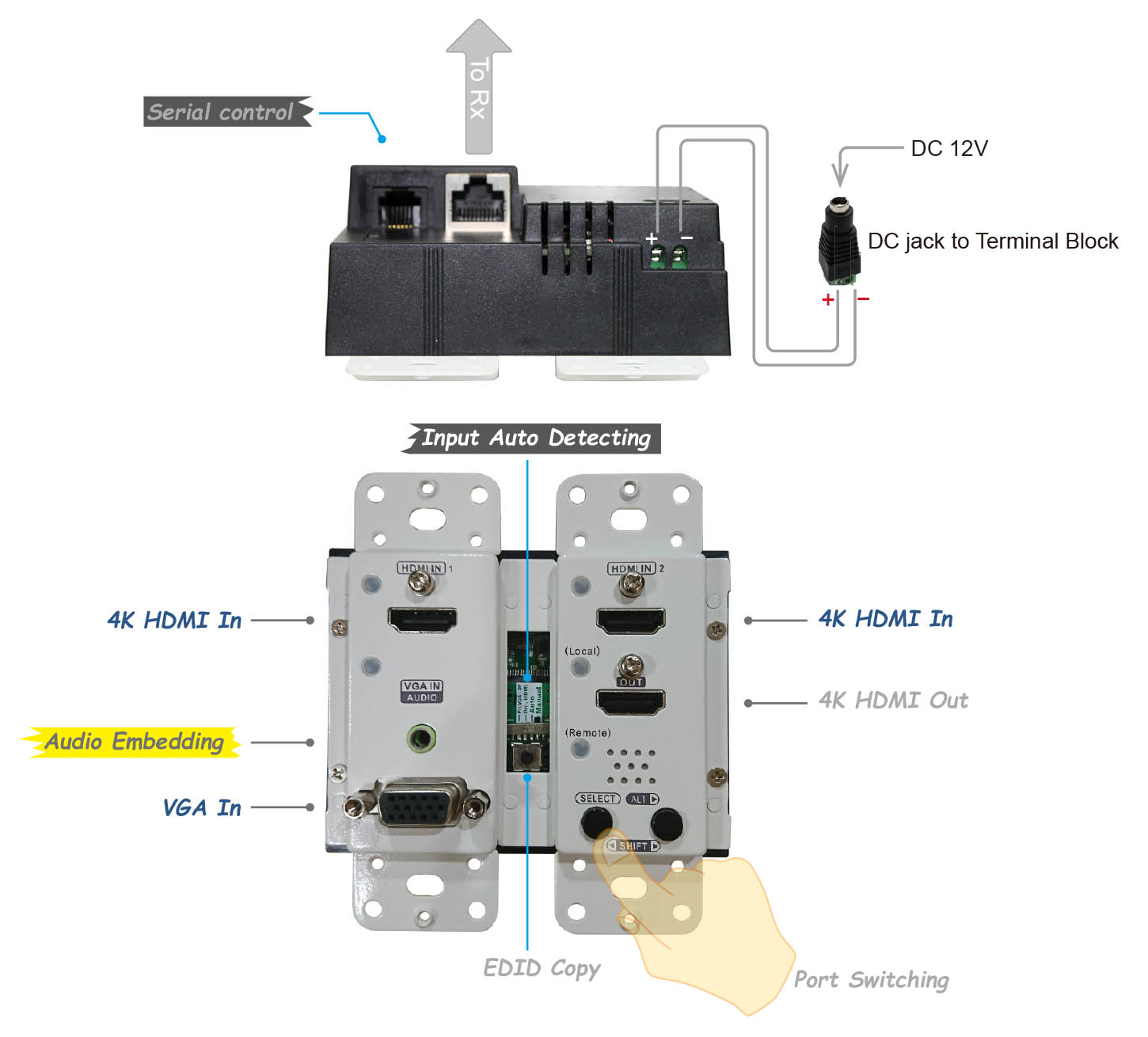

Overview
Wall Plate 4K HDBaseT Transmitter with 3-Input Switch, 70 m (PoC)

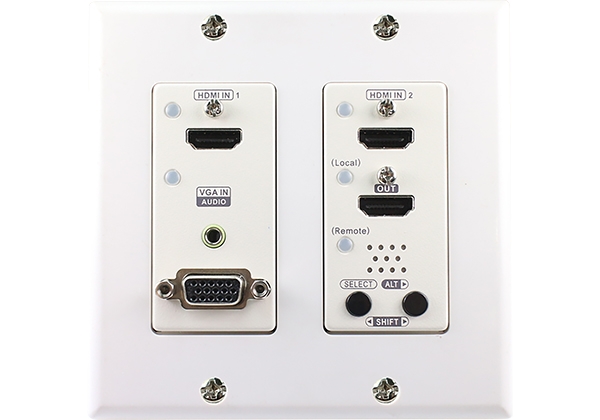

The EVBMV-A1371WL is a metal wall-plate transmitter with two HDMI inputs and one VGA input with analog stereo audio. The selected source travels over one CAT.5e/6/7 cable to a remote HDBaseT receiver, with a local HDMI output also provided. It is aimed at meeting rooms and classrooms that need a single wall connection point for several source types.
At a glance
- Category
- HDBaseT Extenders
- Video interface
- HDMI, VGA, Multi-format
- Ports
- 3 ports
- Max. resolution
- 3840x2160@30Hz ( 4:4:4 )
- Distance
- 70M @ Full HD 1080p, 35M @ 4K
- HDCP
- HDCP 1.4
Features
- Carries HDMI or VGA with analog audio up to 70 m at 1080p and 35 m at 4K over HDBaseT.
- Resolutions reach UHD 3840 x 2160, at 30 Hz in 4:4:4 or 60 Hz in 4:2:0, and Full HD 1920 x 1080.
- Inputs: two HDMI and one VGA with analog stereo audio; outputs: one HDMI and one RJ45 HDBaseT port.
- Auto EQ adjusts sharpness for a clear picture over the cable run.
- Screen Shift Mode lets users reposition the image, and Resolution Alternation Mode helps when several similar video timings are detected.
- Source order can be set, and auto-sensing selects the most recently connected source.
- HDCP 1.4 compliant, with 3D video and Blu-ray support over a single CATx cable.
- PoC (power over cable), RJ11 serial control and EDID copy button; no drivers or software are needed.
Specifications
| Model Name | Transmitter |
|---|---|
| EVBMV-A1371WL ( PoC ) | |
| MAX.Resolution | 3840x2160@30Hz ( 4:4:4 ) 3840x2160@60Hz ( 4:2:0 ) |
| Video Input | HDMI x 2 VGA + Analog Stereo x 1 |
| Video Output | HDMI x 1 RJ45 x 1 ( HDBaseT ) |
| Serial Control | RJ11 x 1 |
| Push Buttons | Source Select x 1 Function x 1 EDID Copy x 1 |
| LED Indicator | Output LED( Monitor ) x 2 Input LED( Source ) x 3 |
| HDCP Compliance | HDCP 1.4 |
| HDBaseT Interface | RJ45 x 1 ( CAT.5e/6/7 ) |
| Extension Distance | 70M @ Full HD 1080p 35M @ 4K |
| Power Supply | DC 12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |

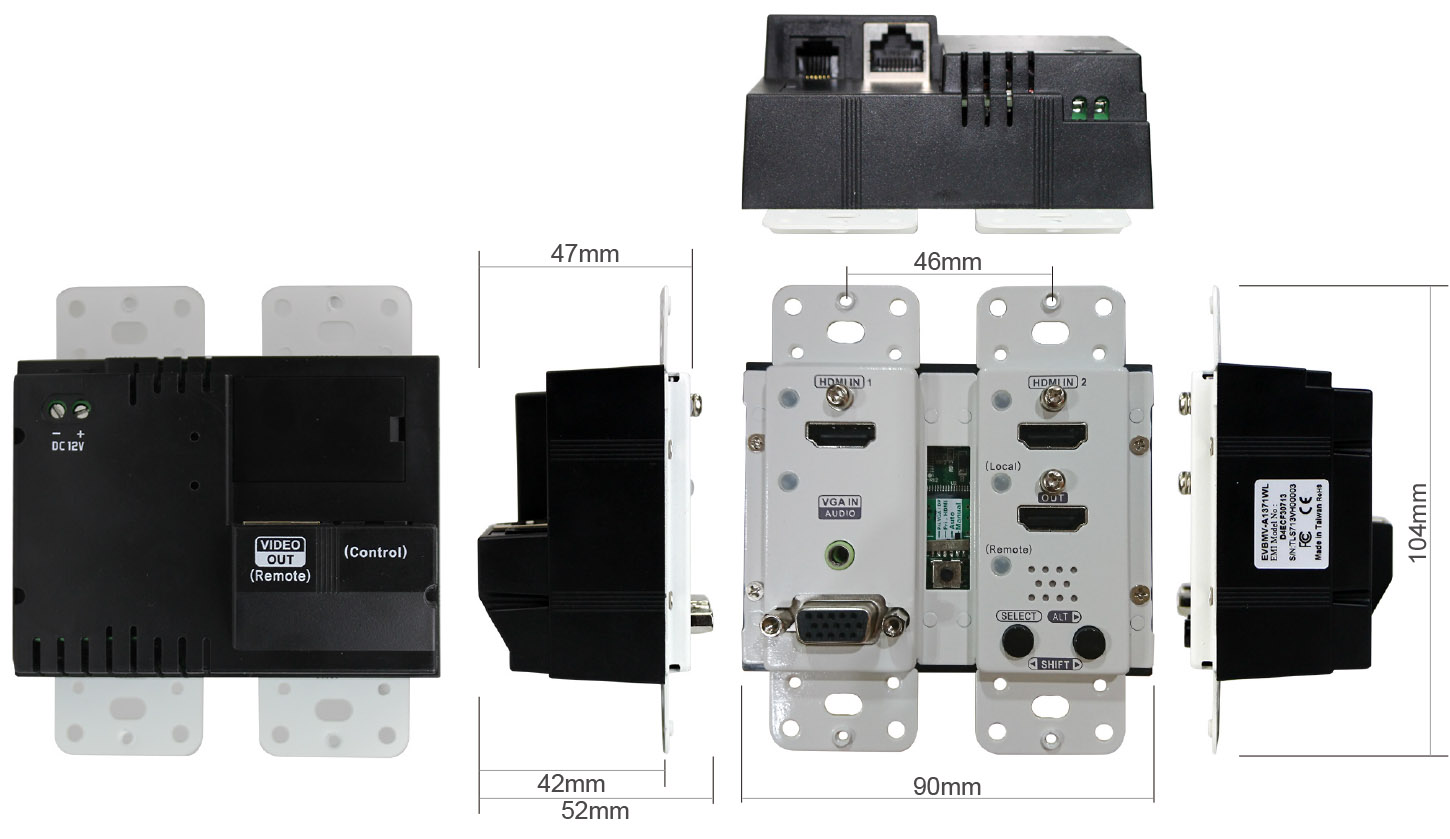

| Dimension(mm) | 103 x 91 x 46 |
| Weight(g) | 225 |
Specifications are subject to change. Please confirm critical values with us before ordering.

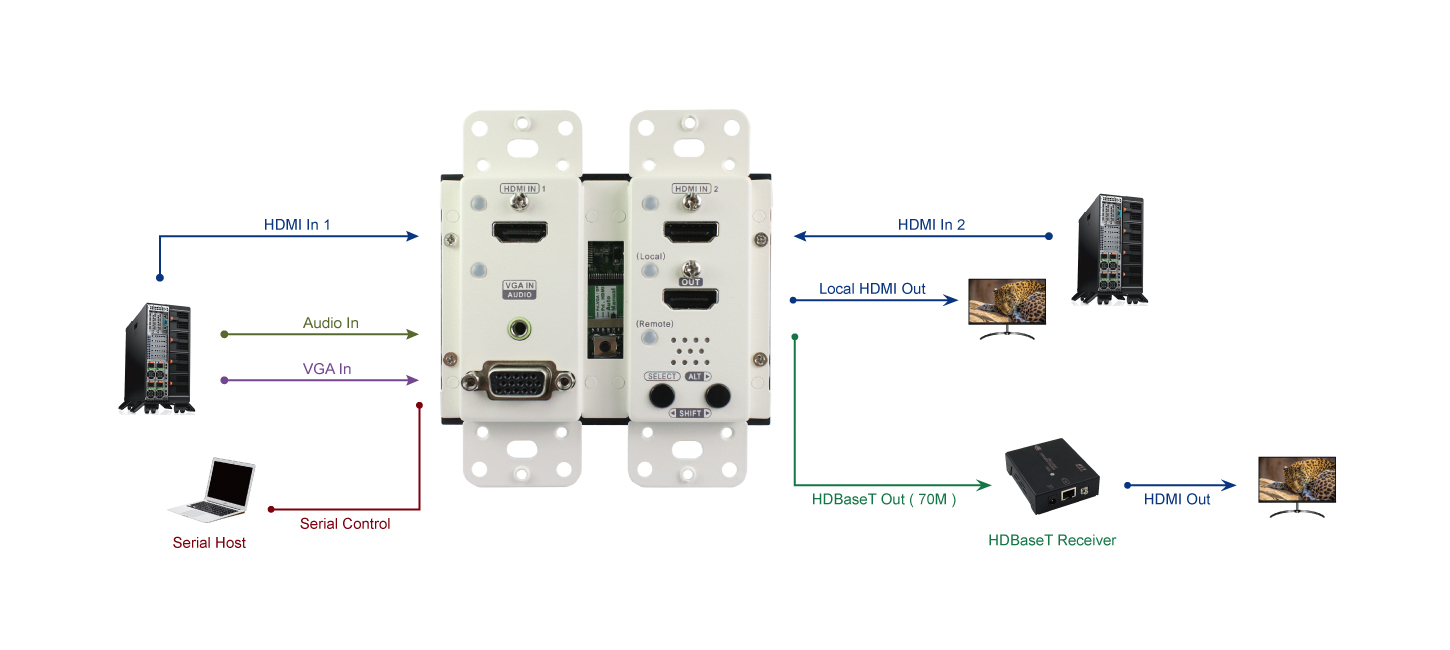

Connection
