8-Port VGA KVM Switch with OSD, PS/2 and USB, 1U Rack
1U rack-mount KVM switch with on-screen menu for eight VGA computers, USB or PS/2.
UCNV-108D
- Controls eight VGA computers from one keyboard, mouse and monitor; computers can connect over USB or PS/2.
- 1U-height rack form factor.
- Cascading expands capacity as the installation grows.
- OSD with computer naming (14 characters), selection by name, status indication and auto scan.
- Programmable scan filters skip unused ports, and settings and names persist in non-volatile memory.
- Four-character password for each computer blocks unauthorised access.
- Hotkey, OSD and front-panel push-button control; plug-and-play setup.
- Resolution up to 1920x1440 at 60Hz (4:4:4), DDC2B compatible.
- Keyboard state is saved and restored when switching, and Sun keyboard emulation is supported.
- Secure-fit cables included for the computer connections.
USB HIDHotkey Control
Overview

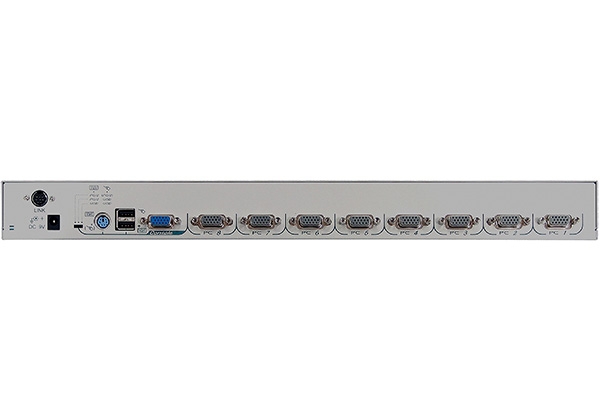

8-Port VGA KVM Switch with OSD, PS/2 and USB, 1U Rack
The UCNV-108D shares one USB or PS/2 keyboard, mouse and a VGA monitor across eight computers. It fits a single rack unit, and its OSD offers named ports, auto scan and password locking. Cascading allows larger installations, so it suits server rooms and equipment racks.
At a glance
- Category
- KVM Switches
- Video interface
- VGA
- Ports
- 8 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 ), DDC2B
Features
- Controls eight VGA computers from one keyboard, mouse and monitor; computers can connect over USB or PS/2.
- 1U-height rack form factor.
- Cascading expands capacity as the installation grows.
- OSD with computer naming (14 characters), selection by name, status indication and auto scan.
- Programmable scan filters skip unused ports, and settings and names persist in non-volatile memory.
- Four-character password for each computer blocks unauthorised access.
- Hotkey, OSD and front-panel push-button control; plug-and-play setup.
- Resolution up to 1920x1440 at 60Hz (4:4:4), DDC2B compatible.
- Keyboard state is saved and restored when switching, and Sun keyboard emulation is supported.
- Secure-fit cables included for the computer connections.
Specifications
| Model Name | UCNV-108D |
|---|---|
| Computer/Server Ports (input) | VGA x 8 ( USB Combo Port ) |
| Console Ports (output) | VGA x 1 PS/2 x 1 USB HID Type A x 2 |
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ), DDC2B |
| Push Buttons | Port Selection x 8 |
| Control Methods | Hotkey / OSD / Push Button |
| Computer Naming | 14-Character |
| Hot Plug-and-Play | Yes |
| Security Control | 4-Character Password Per CPU |
| On-Screen Display (OSD) | Yes |
| LED Indicators | PC-Ready x 8, PC-Select x 8, Power x 1 |
| Operation Environment | DC 9~12V |
| Storage Temperature | 0~40°C, Humidity<80% |
| Power Supply | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 44 x 438 x 180 |
Specifications are subject to change. Please confirm critical values with us before ordering.
