4x16 HDMI Video Matrix Switch Splitter with IR and RS-232
The VGM-S4116 takes four HDMI inputs and distributes the selected source to sixteen HDMI outputs. A 2-bus matrix mode allows two sources to be shown at the same time. Front-panel buttons, an IR remote and RS-232 control (including a graphical control utility) make it suitable for signage, control rooms, training suites and AV installations.

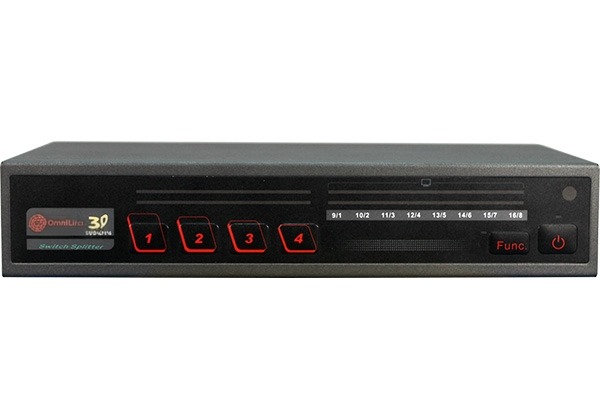

At a glance
- Category
- Video Switches & Splitters
- Video interface
- HDMI
- Ports
- 4 x 16
- Max. resolution
- 1920 x 1200 @60Hz (4:4:4)
- HDCP
- HDCP 1.3 Compliant

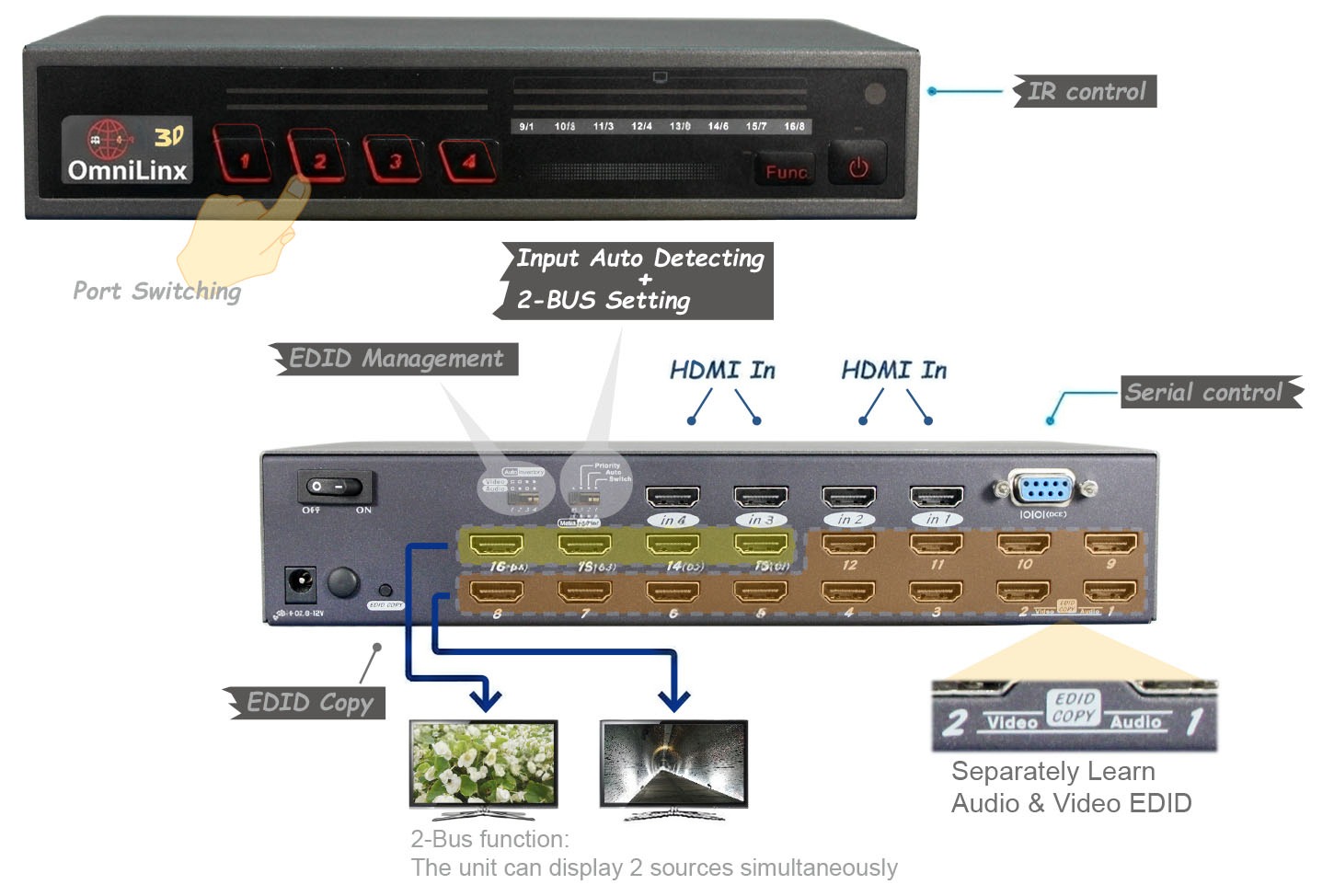

Features
- Four HDMI inputs and sixteen HDMI outputs, with the selected source sent to every display.
- Matrix mode runs two buses, so two different sources can be shown on separate groups of displays at once.
- Four selection modes: Switch, Auto-Sensing, Priority and Matrix. Auto-sensing routes the most recently connected source to the outputs.
- Control from front-panel buttons, an IR remote, or an RS-232 serial connection on a DB-9 port, either by simple commands or through a GUI.
- Each display output can be switched on or off individually.
- Resolutions up to 1920x1200 at 60Hz (4:4:4) and 1920x1080 at 60Hz, with 2048x1152 also supported; HDMI 1.3b, HDCP and 3D video compliant.
- EDID Copy and EDID presets, with separate audio and video EDID learning for home-theatre and multimedia systems.
- Non-volatile memory keeps settings through a power loss.
- The graphical interface shows connection status and lets you name sources and displays and assign your own icons.
- Metal enclosure, DC 12V power, 130 x 50 x 255 mm.

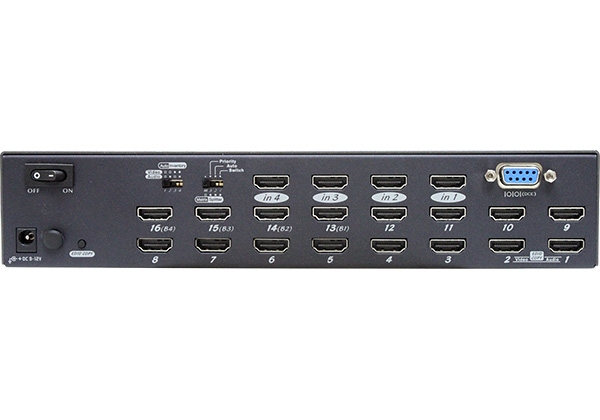

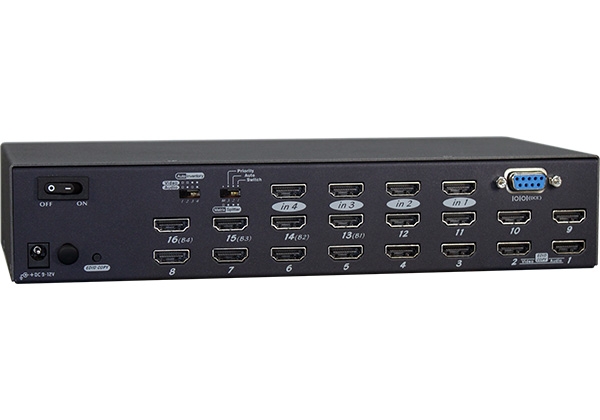

Specifications
| Model Name | VGM-S4116 |
|---|---|
| Video Resolution (Max.) | 1920 x 1200 @60Hz (4:4:4) 1920 x 1080 @60Hz (4:4:4) |
| Video Input | HDMI x 4 |
| Video Output | HDMI x 16 |
| IR Control | IR Sensor ( Front ) |
| Serial Control | DB-9 x 1 ( RS-232 ) |
| Slide Switches | EDID Mode Switch ( Audio / Video ) x 1 Input Auto Detecting x 1 |
| Push Buttons | Input Selection x 4 Power x 1 Func x 1 EDID Copy x 1 |
| LED Indicator | Power LED x 1 Input x 2 Output x 8 |
| HDCP Compliance | HDCP 1.3 Compliant |
| Mode Configuration | Switch / Auto-Sensing / Priority / Matrix |
| Video & Audio Configruation | Auto / Inventory |
| Power Supply | DC 12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| Dimension H x W x D (mm) | 130 x 50 x 255 |
| Weight (g) | 1200 |
Specifications are subject to change. Please confirm critical values with us before ordering.
Connection
