USB 3.2 Gen 2 Type-C Cable with E-Mark, 10 Gbps, 1 m
1 m USB Type-C cable with an E-mark chip, 10 Gbps data and up to 3 A power delivery.
CBS-100VCGJ
- USB 3.2 Gen 2 compliant, with data rates up to 10 Gbps.
- Supports up to 3 A power delivery.
- Built-in E-mark chip.
- Carries data and video up to 4K at 60 Hz (4:4:4).
- USB Type-C connectors at both ends, 1 m length.
- PVC and ABS overmold; RoHS and REACH compliant.
PD Charge4K@60Hz 4:4:44K@60Hz 4:2:04K@30HzUSB 3.2 Gen 2USB 3.2 Gen 1USB 2.0USB HIDType-C PDHDCP 2.2HDCP 1.4
Overview

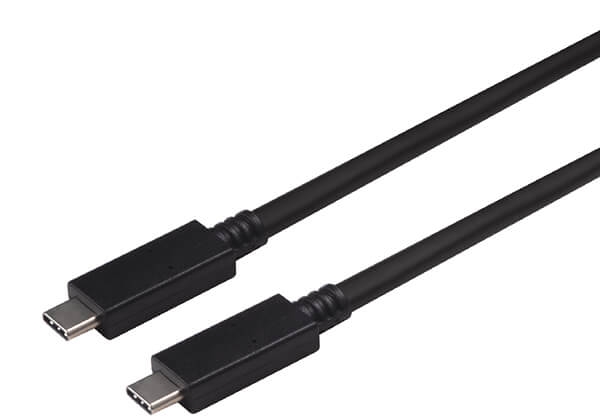

USB 3.2 Gen 2 Type-C Cable with E-Mark, 10 Gbps, 1 m
The CBS-100VCGJ is a USB Type-C to Type-C cable meeting USB 3.2 Gen 2 at 10 Gbps. A built-in E-mark chip lets connected devices identify its capabilities. It handles data, up to 3 A of power and 4K at 60 Hz video.
At a glance
- Category
- Cables & Accessories
- Video interface
- USB
- Max. resolution
- 4K@60Hz ( 4:4:4 )
Features
- USB 3.2 Gen 2 compliant, with data rates up to 10 Gbps.
- Supports up to 3 A power delivery.
- Built-in E-mark chip.
- Carries data and video up to 4K at 60 Hz (4:4:4).
- USB Type-C connectors at both ends, 1 m length.
- PVC and ABS overmold; RoHS and REACH compliant.
Specifications
| Model Name | CBS-100VCGJ |
|---|---|
| Video Resolution (Max.) | 4K@60Hz ( 4:4:4 ) |
| Input Port | USB Type-C |
| Output Port | USB Type-C |
| Bandwidth | 10Gbps |
| Certified | E-mark IC |
| Overmold | PVC、ABS |
| Length | 1 Meter |
| Power output | 0~3Amp |
| Operation Environment | 0~60°C, Humidity<80% |
| Storage Temperature | -20~65°C |
| Weight (g) | 45 |
Specifications are subject to change. Please confirm critical values with us before ordering.
