Dual-Station VGA and USB KVM Extender over CAT.x, 150 m
Extends VGA video and USB keyboard and mouse up to 150 m over Cat5, with two-user access.
EUC-222
- Extends VGA and USB signals up to 150 m (490 ft) between the computer unit and the console unit over Category 5 UTP cable.
- Dual-console design: a local and a remote user can work on the same computer, or one console can manage two computers in different locations.
- Computer-side connection supports USB or PS/2, and both units use RJ-45 for the extension link.
- Video compensation on the console unit is adjusted by hotkey to suit the cable length and keep the picture sharp.
- Privacy function turns off the computer unit's video output temporarily, for 5, 15, 30 or 60 seconds.
- A dedicated hotkey scheme lets you cascade the extender with a compatible KVM switch without hotkey conflicts.
- Supports resolutions of 1280 x 1024 at 150 m and is DDC2B compatible; works with XGA, VGA and SVGA systems.
- Works with common USB mice, including optical models.
- Audible beeps confirm hotkey operations. Powered by an external DC 9V, 500mA adapter.
Overview
Dual-Station VGA and USB KVM Extender over CAT.x, 150 m
The EUC-222 is a two-unit kit made up of a console unit (EUC-12S) and a computer unit (EUC-21P). It moves a computer up to 150 m from its keyboard, mouse and monitor using standard CATx cabling. Both ends have console connections, so a local and a remote user can share one computer or manage two, which suits control rooms, labs and shared workspaces.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- VGA
- Max. resolution
- 1280 x 1024* @ 150 Meters
Features
- Extends VGA and USB signals up to 150 m (490 ft) between the computer unit and the console unit over Category 5 UTP cable.
- Dual-console design: a local and a remote user can work on the same computer, or one console can manage two computers in different locations.
- Computer-side connection supports USB or PS/2, and both units use RJ-45 for the extension link.
- Video compensation on the console unit is adjusted by hotkey to suit the cable length and keep the picture sharp.
- Privacy function turns off the computer unit's video output temporarily, for 5, 15, 30 or 60 seconds.
- A dedicated hotkey scheme lets you cascade the extender with a compatible KVM switch without hotkey conflicts.
- Supports resolutions of 1280 x 1024 at 150 m and is DDC2B compatible; works with XGA, VGA and SVGA systems.
- Works with common USB mice, including optical models.
- Audible beeps confirm hotkey operations. Powered by an external DC 9V, 500mA adapter.
Specifications
| Model Name | EUC-222 | |
|---|---|---|
| EUC-12S (Station Unit) | EUC-21P (Computer Unit) | |
| Computer Interface | PS/2, USB | PS/2, USB |
| Console Interface | Keyboard/Mouse: USB Emulated Monitor: HDB15 | Keyboard/Mouse: USB Emulated Monitor: HDB15 |
| Extension Port | 1 | 1 |
| Extension Interface | RJ-45 | RJ-45 |
| Power Supply (Min.) | External Power Adapter DC 9V, 500mA | |
| Resolution | 1280 x 1024* @ 150 Meters | |
| DDC2B Compatible | Yes | |
Specifications are subject to change. Please confirm critical values with us before ordering.

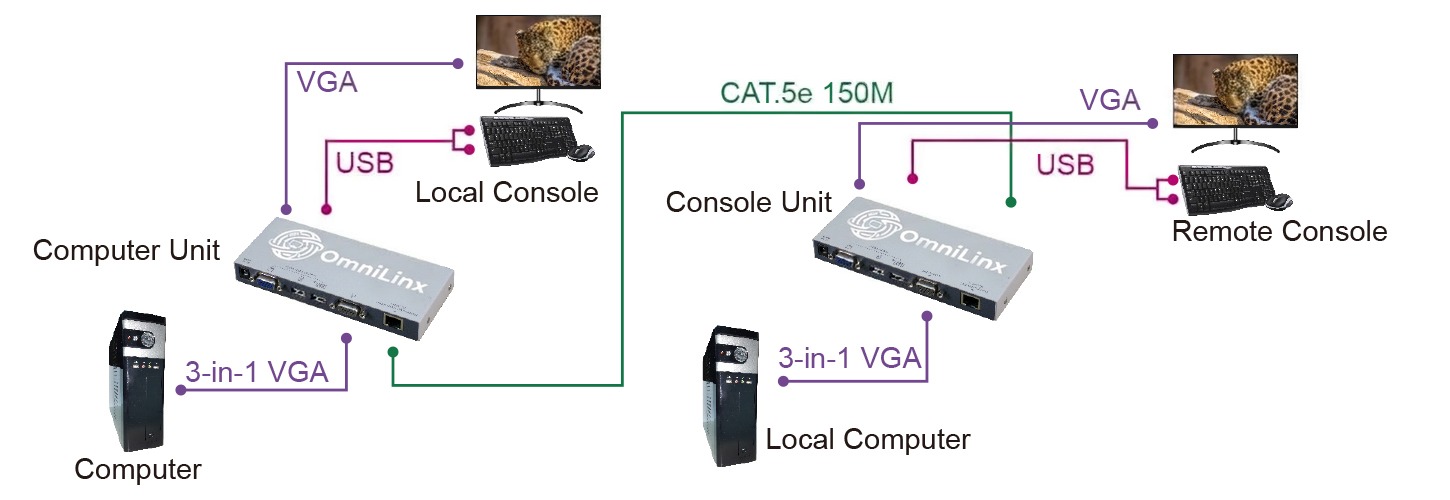

Connection
