10-Port VGA Extender Transmitter over CAT.x with IR Control
VGA transmitter that sends one source to ten CAT5 outputs, with a local VGA view and IR control.
ERV-1210L
- Transmits VGA to up to ten remote receiver units (sold separately) over CAT5, CAT5e or CAT6.
- Supports resolutions up to 1280 x 1024 over high-quality CAT5 cable.
- Maximum distance is listed at 150 m; the repeater unit can send VGA up to 250 m.
- Duplicates the input for local use through VGA outputs.
- Gain (equalization) selector for signal clarity.
- IR remote control, within 5 m, switches video and audio on or off for selected CAT5 output ports.
- DDC2B compatible, with a common-mode noise suppression circuit; DC 9V power.
- Used for public broadcasting, exhibits, retail, courtrooms, stock tickers and bus stations.
Overview

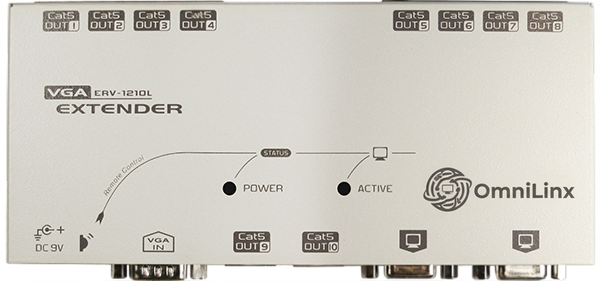

10-Port VGA Extender Transmitter over CAT.x with IR Control
The ERV-1210L is a VGA transmitter and splitter that sends one signal to up to ten remote units over CAT5 cabling and also provides local VGA outputs. A gain control tunes picture clarity, and an IR remote turns individual outputs on or off. It suits lobbies, exhibits, retail and transport displays.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- VGA
- Max. resolution
- 1280 X 1024
- Distance
- 150 Meters
Features
- Transmits VGA to up to ten remote receiver units (sold separately) over CAT5, CAT5e or CAT6.
- Supports resolutions up to 1280 x 1024 over high-quality CAT5 cable.
- Maximum distance is listed at 150 m; the repeater unit can send VGA up to 250 m.
- Duplicates the input for local use through VGA outputs.
- Gain (equalization) selector for signal clarity.
- IR remote control, within 5 m, switches video and audio on or off for selected CAT5 output ports.
- DDC2B compatible, with a common-mode noise suppression circuit; DC 9V power.
- Used for public broadcasting, exhibits, retail, courtrooms, stock tickers and bus stations.
Specifications
| Model Name | ERV-1210L |
|---|---|
| Video Resolution (max.) | 1280 X 1024 |
| RJ-45 Connector(Extension Output) | VGA x 10 |
| Cable Between Units | CAT5, CAT5e or CAT6 |
| Max. Distance | 150 Meters |
| VGA Input/Output | HDB15 (male) x 1 / HDB15(male) x 2 |
| Power Supply | DC 9V |
| DDC2B Compatiable | Yes |
| Remote Control | Yes |
Specifications are subject to change. Please confirm critical values with us before ordering.

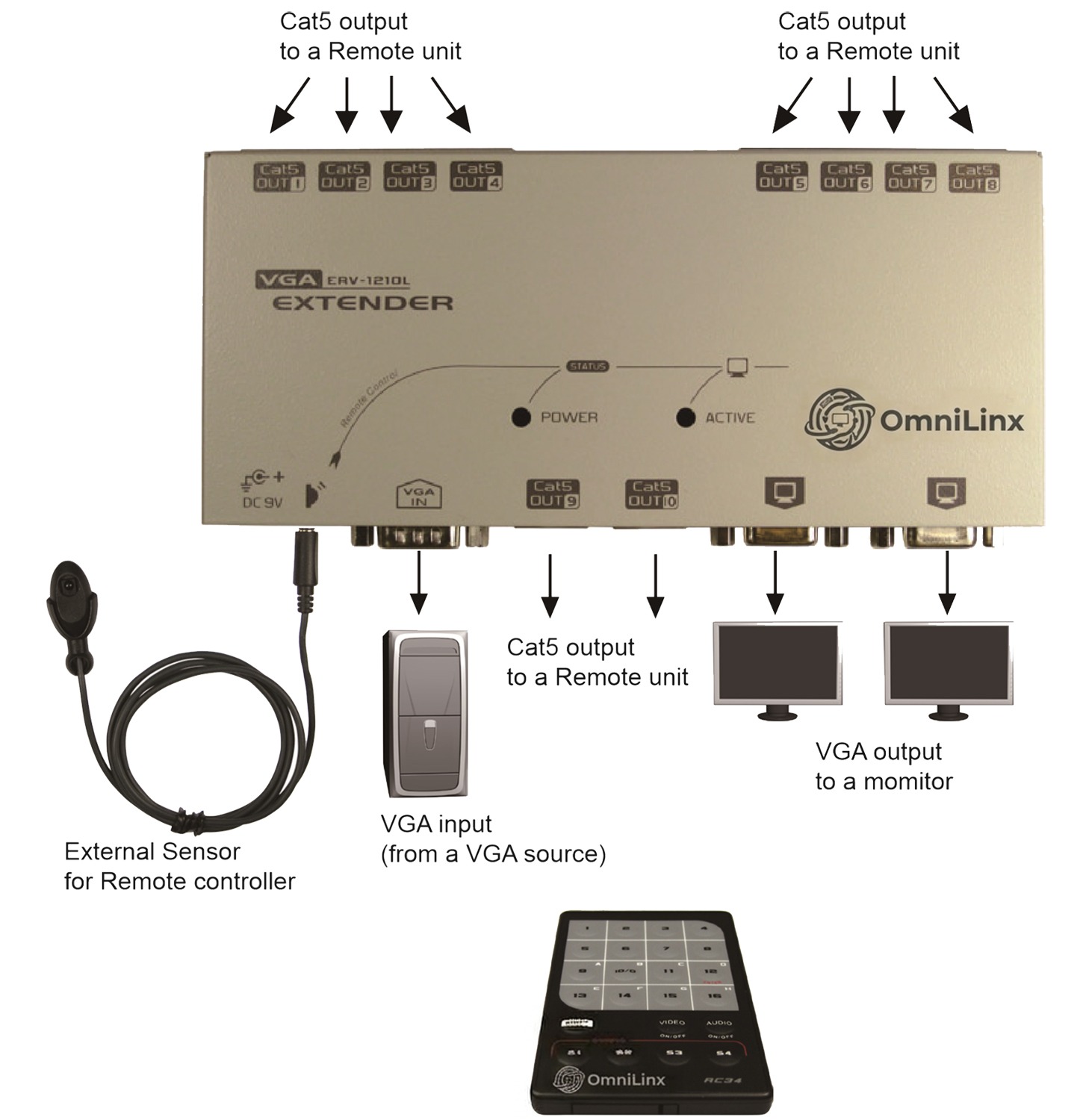

Connection
