2-Port Dual-Monitor 4K HDMI KVM Switch with USB 3.2 Gen 1
Share one keyboard, mouse and two 4K displays between two HDMI computers.
MAAG-G322
- Switches two computers, each driving two HDMI displays, from a single keyboard, mouse and monitor pair.
- Video up to 4096x2160 and 3840x2160 at 60Hz with 4:4:4 colour sampling, including HDR10 content.
- HDCP 2.2 and 1.4 compliant, with DDC pass-through for protected content.
- EDID can be set to Auto, Default or Copy from the connected monitors, which keeps display layouts stable and compatible when switching.
- USB 3.2 Gen 1 ports are provided at both front and rear for peripherals, so permanent and temporary devices both have a convenient connection point.
- Selection by front-panel button or keyboard hotkey, with a buzzer to confirm each switch.
- Auto scan cycles through the computers at 3, 8, 15 or 30 seconds, and manual scan is also available.
- Keyboard and mouse work plug-and-play on Windows and macOS, with no drivers or software.
- Audio is supported through a 3.5mm speaker output, and HDMI-embedded audio is passed through as well.
- Metal housing, DC 9-12V power.
Dual Display4K@60Hz 4:4:44K@60Hz 4:2:04K@30HzUSB 3.2 Gen 1USB 2.0USB HIDHotkey ControlEDID ManagementHDCP 2.2HDCP 1.4
Overview

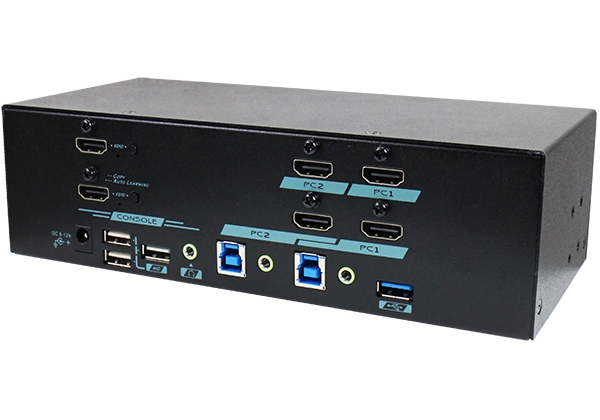

2-Port Dual-Monitor 4K HDMI KVM Switch with USB 3.2 Gen 1
The MAAG-G322 lets one console, consisting of a keyboard, mouse, two HDMI monitors and speakers, operate two computers. Each computer connects with two HDMI video cables and a USB 3.2 Gen 1 link, and a single button or hotkey moves the whole workstation to the other machine. It suits multi-display desks, design and trading workstations, and any setup that pairs two PCs with a dual-screen layout.
At a glance
- Category
- KVM Switches
- Video interface
- HDMI
- Ports
- 2 ports
- Max. resolution
- 4096x2160@60Hz (4:4:4)
- HDCP
- HDCP 2.2 / 1.4
Features
- Switches two computers, each driving two HDMI displays, from a single keyboard, mouse and monitor pair.
- Video up to 4096x2160 and 3840x2160 at 60Hz with 4:4:4 colour sampling, including HDR10 content.
- HDCP 2.2 and 1.4 compliant, with DDC pass-through for protected content.
- EDID can be set to Auto, Default or Copy from the connected monitors, which keeps display layouts stable and compatible when switching.
- USB 3.2 Gen 1 ports are provided at both front and rear for peripherals, so permanent and temporary devices both have a convenient connection point.
- Selection by front-panel button or keyboard hotkey, with a buzzer to confirm each switch.
- Auto scan cycles through the computers at 3, 8, 15 or 30 seconds, and manual scan is also available.
- Keyboard and mouse work plug-and-play on Windows and macOS, with no drivers or software.
- Audio is supported through a 3.5mm speaker output, and HDMI-embedded audio is passed through as well.
- Metal housing, DC 9-12V power.
Specifications
| Model Name | MAAG-G322 |
|---|---|
| Computer/Server Ports (input) | HDMI x 4 ( Dual Display x 2 PCs ) USB 3.2 Gen 1 Type B x 2 Audio Jack in x 2 |

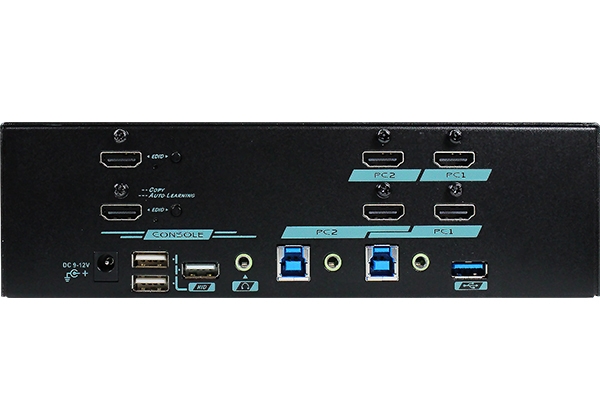

| Console Ports (output) | HDMI x 2 ( Dual Display ) USB 3.2 Gen 1 Type A x 2 ( Rear & Front ) USB HID Type A x 4 (Rear & Front) Audio Jack out x 1 |
| Video Resolution (Max.) | 4096x2160@60Hz (4:4:4) 3840x2160@60Hz (4:4:4) |
| Push Buttons | Port Selection x 1 Auto EDID & EDID Copy Function x 2 |
| HDCP Compliance | HDCP 2.2 / 1.4 |
| Control Methods | Hotkey / Push Button |
| LED Indicator (Power / Status) | Computer Ready x 2 (Green) Computer Selected x 2 (Red) EDID Copy x 2 |
| EDID Management | Copy / Auto / Default |
| Automatic scan interval | 3, 8, 15, 30 seconds |
| Power Supply | DC 9~12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 64 x 220 x 100 |
| Weight (g) | 1000 |
Specifications are subject to change. Please confirm critical values with us before ordering.

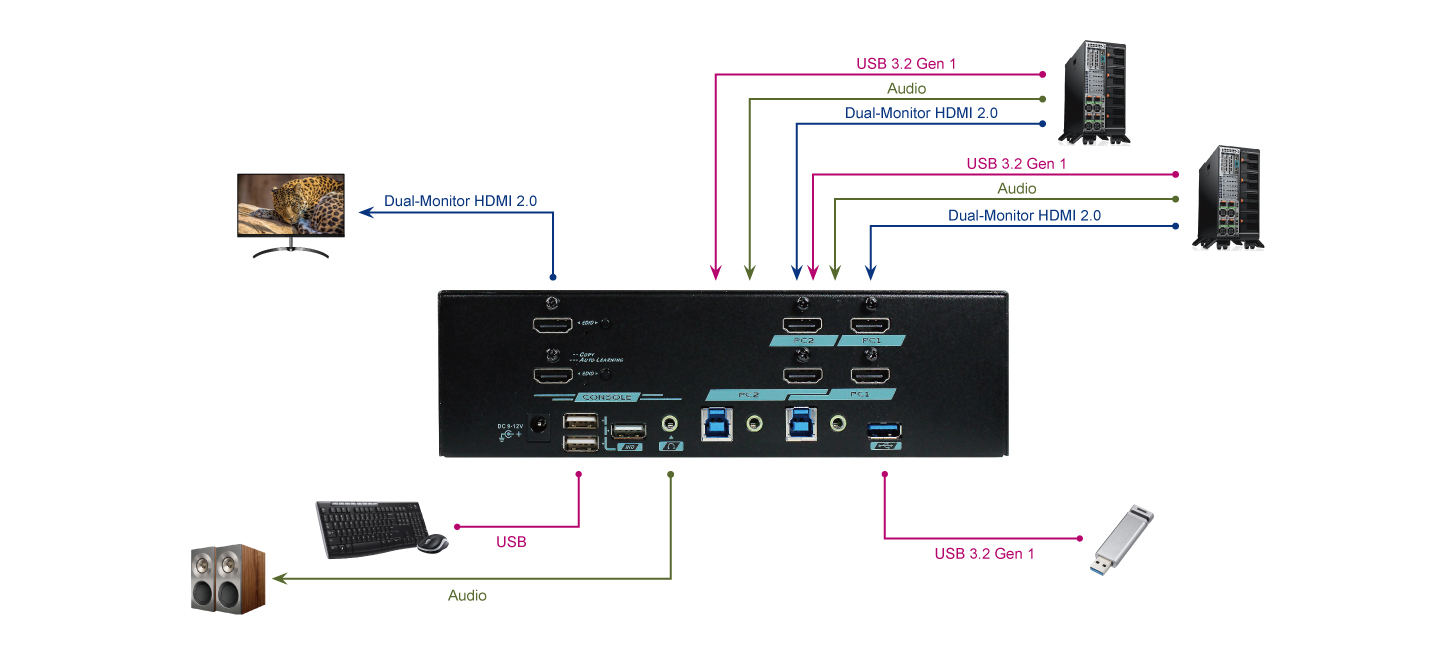

Connection
