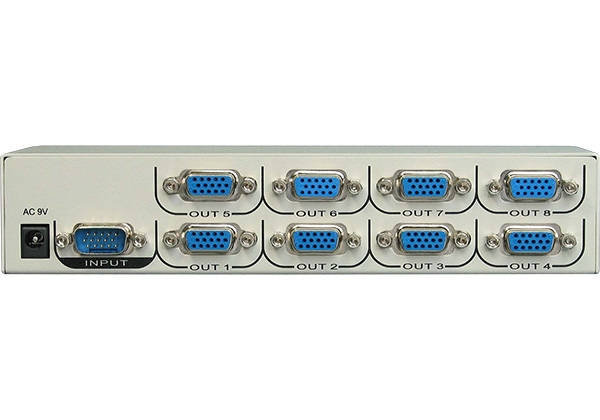

8-Port VGA Video Splitter
Duplicates one VGA source to 8 VGA displays, cascadable.
VSA-18
- One VGA input is replicated to 8 VGA outputs.
- Supports resolutions up to 1920x1440 at 60Hz (4:4:4).
- Transmission distance up to 65 m, depending on cable length and quality.
- Automatic power saving puts the splitter to sleep when no video input is present.
- Cascading splitters increases the number of outputs.
- Power and active LEDs show unit status.
- Metal housing, DC 5V power, 40 x 195 x 70 mm (H x W x D), 710 g.
Overview
8-Port VGA Video Splitter
The VSA-18 sends a single VGA input to 8 VGA outputs so the same image appears on every connected display. It needs no software or interface card; connect the cables and power it up. It suits offices, meeting rooms, classrooms and similar multi-display setups.
At a glance
- Category
- Video Switches & Splitters
- Video interface
- VGA
- Ports
- 8 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 )
Features
- One VGA input is replicated to 8 VGA outputs.
- Supports resolutions up to 1920x1440 at 60Hz (4:4:4).
- Transmission distance up to 65 m, depending on cable length and quality.
- Automatic power saving puts the splitter to sleep when no video input is present.
- Cascading splitters increases the number of outputs.
- Power and active LEDs show unit status.
- Metal housing, DC 5V power, 40 x 195 x 70 mm (H x W x D), 710 g.
Specifications
| Model Name | VSA-18 |
|---|---|
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ) |
| Video Input | VGA x 1 ( Male ) |
| Video Output | VGA x 8 ( Female ) |
| LED Indicator | Power LED x 1 Active LED x 1 |
| Power Supply | DC 5V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| Dimension H x W x D (mm) | 40 x 195 x 70 |
| Weight (g) | 710 |
Specifications are subject to change. Please confirm critical values with us before ordering.
Connection
