8-Port HDMI Video Splitter with EDID and HDCP
Rack-mount splitter that copies one HDMI source to eight HDMI displays.
VSM-108
- One HDMI input is duplicated to eight HDMI outputs.
- Supports resolutions up to 1920x1080 at 60Hz (4:4:4), including UXGA, WUXGA and Full HD 1080p.
- EDID and HDCP support; Blu-ray ready.
- Passes audio from HDMI and audio-over-DVI sources.
- Automatic power saving when the video input is lost.
- Cascading increases outputs.

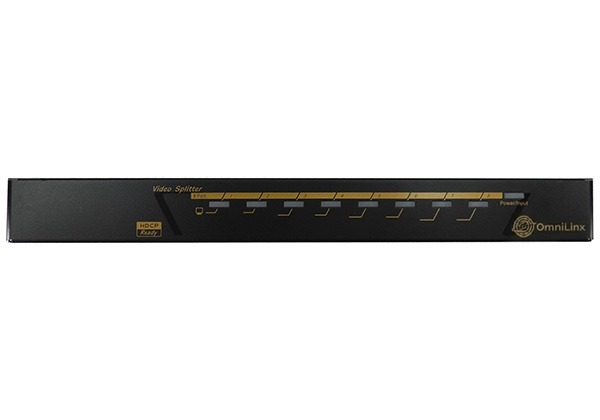

- A status LED plus one LED per output show signal activity.
- Metal rack-mount enclosure, DC 12V power, 44 x 438 x 180 mm and 3.5 kg.
Overview
8-Port HDMI Video Splitter with EDID and HDCP

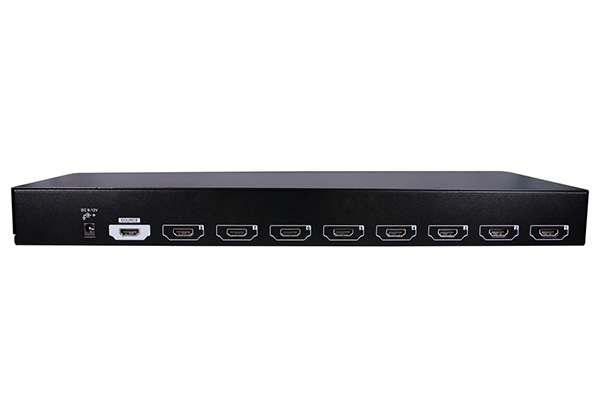

The VSM-108 takes one HDMI input and delivers it to eight HDMI outputs in a rack-mountable chassis. It supports EDID and HDCP and passes audio from HDMI or audio-over-DVI sources. Cascading expands output count, which suits digital signage, showrooms and training rooms.
At a glance
- Category
- Video Switches & Splitters
- Video interface
- HDMI
- Ports
- 8 ports
- Max. resolution
- 1920 x 1080@60Hz ( 4:4:4 )
- HDCP
- HDCP supports
Features
- One HDMI input is duplicated to eight HDMI outputs.
- Supports resolutions up to 1920x1080 at 60Hz (4:4:4), including UXGA, WUXGA and Full HD 1080p.
- EDID and HDCP support; Blu-ray ready.
- Passes audio from HDMI and audio-over-DVI sources.
- Automatic power saving when the video input is lost.
- Cascading increases outputs.
- A status LED plus one LED per output show signal activity.
- Metal rack-mount enclosure, DC 12V power, 44 x 438 x 180 mm and 3.5 kg.
Specifications
| Model Name | VSM-108 |
|---|---|
| Video Resolution (Max.) | 1920 x 1080@60Hz ( 4:4:4 ) |
| Video Input | HDMI x 1 |
| Video Output | HDMI x 8 |
| HDCP Compliance | HDCP supports |
| LED Indicator | Status LED x 1 (Multi-Color) Video Output x 8 |
| Power Supply | DC 12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| Dimension H x W x D (mm) | 44 x 438 x 180 |
| Weight (g) | 3500 |
Specifications are subject to change. Please confirm critical values with us before ordering.

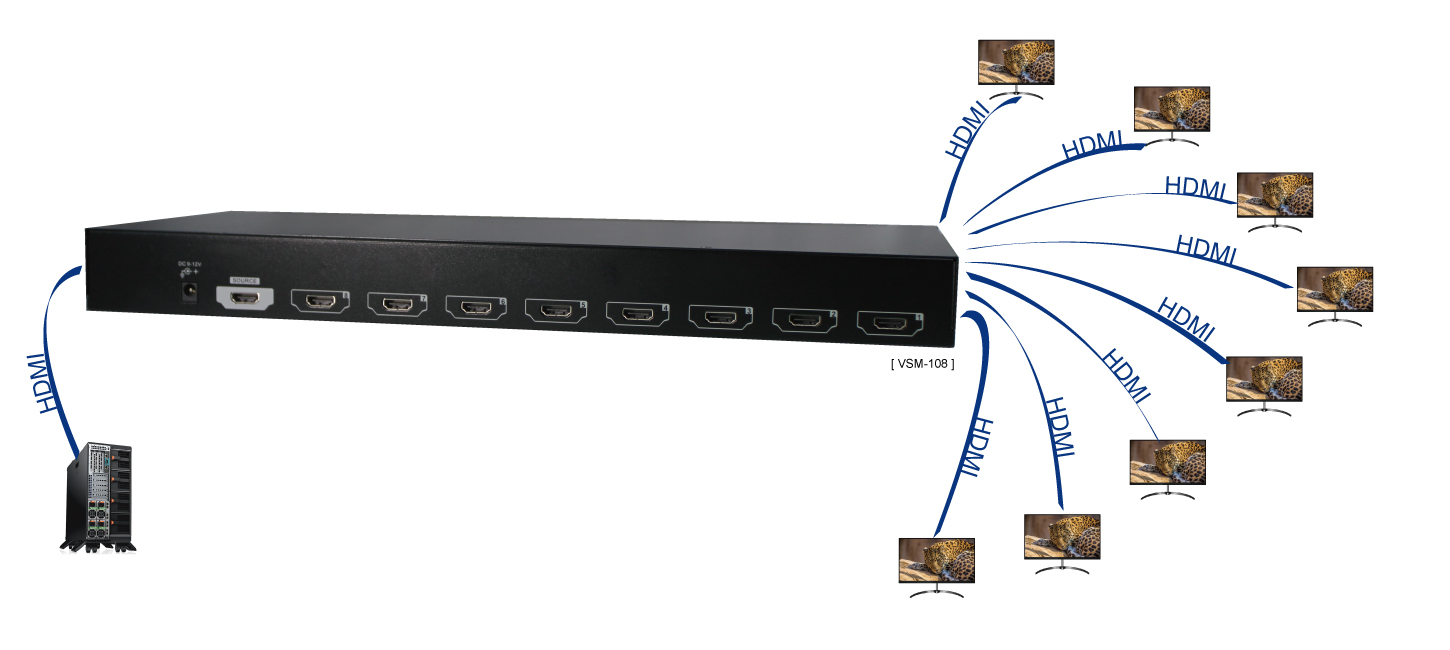

Connection
