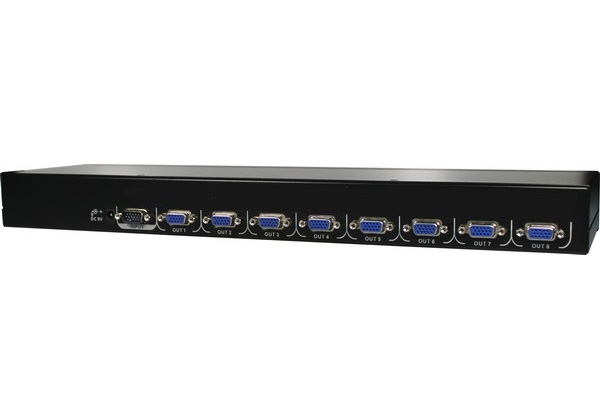

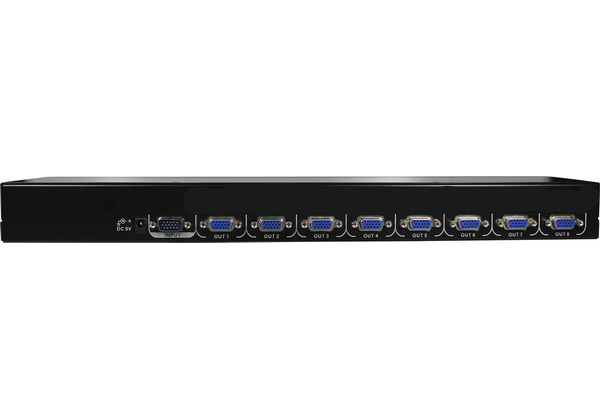

8-Port Rack-Mount VGA Video Splitter
Rack-mount splitter that duplicates one VGA source to eight VGA displays.
VSA-108
- One VGA input is replicated to eight VGA outputs.
- Supports UXGA (1600 x 1200), WUXGA (1920 x 1200) and 1920x1440 at 60Hz (4:4:4).
- Compatible with common resolutions from XGA to WUXGA.
- Automatic power saving when the video input is lost.
- Cascading increases outputs.

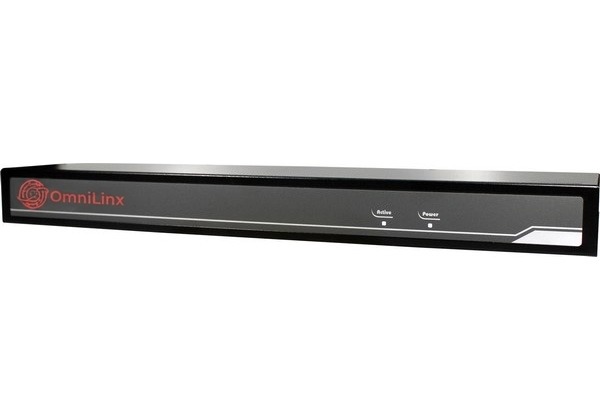

- Power and active LEDs monitor signal status.
- Rack-mountable metal enclosure, DC 9V power, 44 x 440 x 180 mm.
Overview
8-Port Rack-Mount VGA Video Splitter
The VSA-108 distributes one VGA input to eight VGA outputs in a rack-mountable metal chassis. It works without software, and several units can be cascaded for more outputs. It is suited to training rooms, control rooms and display walls.
At a glance
- Category
- Video Switches & Splitters
- Video interface
- VGA
- Ports
- 8 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 )
Features
- One VGA input is replicated to eight VGA outputs.
- Supports UXGA (1600 x 1200), WUXGA (1920 x 1200) and 1920x1440 at 60Hz (4:4:4).
- Compatible with common resolutions from XGA to WUXGA.
- Automatic power saving when the video input is lost.
- Cascading increases outputs.
- Power and active LEDs monitor signal status.
- Rack-mountable metal enclosure, DC 9V power, 44 x 440 x 180 mm.
Specifications
| Model Name | VSA-108 |
|---|---|
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ) |
| Video Input | VGA x 1 |
| Video Output | VGA x 8 |
| LED Indicator | Power LED x 1 Active LED x 1 |
| Power Supply | DC 9V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| Dimension H x W x D (mm) | 44 x 440 x 180 |
Specifications are subject to change. Please confirm critical values with us before ordering.
