Overview
4-Port HDMI Splitter with EDID, HDCP, IR and Serial Control

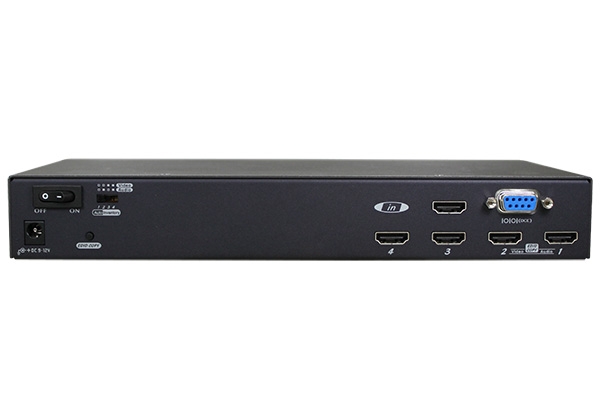

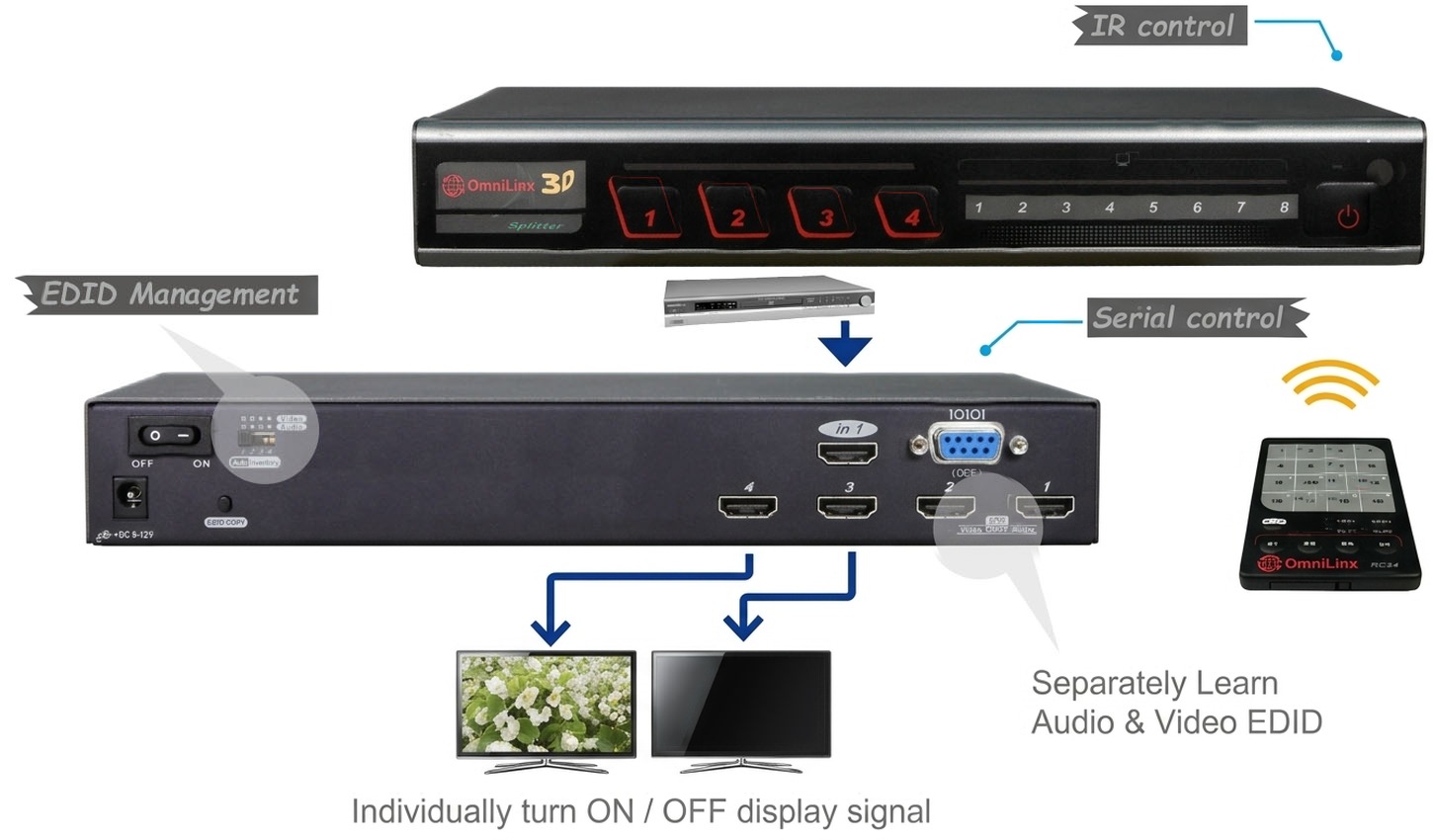

The VS3D-S1104 sends one HDMI source to four HDMI outputs, and each output can be turned on or off separately. Front buttons, an IR remote and RS-232 serial control are available. Flexible EDID tools, including separate audio and video learning, suit home-theatre and AV integration work.
At a glance
- Category
- Video Switches & Splitters
- Video interface
- HDMI
- Ports
- 4 ports
- Max. resolution
- 1920 x 1200 @60Hz (4:4:4)
- HDCP
- HDCP 1.3 Compliant
Features
- One HDMI input to four HDMI outputs; each output's AV signal can be turned on or off individually.
- Control by front-panel buttons, IR remote or RS-232 serial on a DB-9 port.
- Resolutions up to 1920x1200 at 60Hz (4:4:4) and 1920x1080 at 60Hz, with 2048x1152 also supported.
- HDCP compliant and HDMI 3D-ready, supporting 1080p at 24Hz and 720p at 60Hz and 50Hz mandatory 3D modes.
- EDID Copy and preset functions, with separate audio and video EDID learning; a default EDID is supplied if a display has none.
- Configurable audio channel setting for 5.1 and 7.1 AV receivers.
- Non-volatile memory keeps settings through a power loss, and an energy-saving function is included.
- Aluminium front panel and metal case, DC 12V power, 37 x 255 x 180 mm and 780 g.
Specifications
| Model Name | VS3D-S1104 |
|---|---|
| Video Resolution (Max.) | 1920 x 1200 @60Hz (4:4:4) 1920 x 1080 @60Hz (4:4:4) |
| Video Input | HDMI x 1 |
| Video Output | HDMI x 4 |
| IR Control | IR Sensor ( Front ) |
| Serial Control | DB-9 x 1 ( RS-232 ) |
| Slide Switches | EDID Mode Switch ( Audio / Video ) x 1 |
| Push Buttons | Output Selection x 4 Power x 1 EDID Copy x 1 |
| LED Indicator | Power LED x 1 Input x 1 Output x 8 |
| HDCP Compliance | HDCP 1.3 Compliant |
| Video & Audio Configruation | Auto / Inventory |
| 3D Mandatory Mode | 1920 x 1080p@ 24Hz 1280 x 720p@60 Hz 1280 x 720p@50Hz |
| Power Supply | DC 12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal ( Aluminum Front Panel + Metal Enclosure ) |
| Dimension H x W x D (mm) | 37 x 255 x 180 |
| Weight (g) | 780 |
Specifications are subject to change. Please confirm critical values with us before ordering.
