Dual-Console VGA and PS/2 KVM Extender over CAT.x, 150 m
Extends VGA video with PS/2 keyboard and mouse up to 150 m over Cat5, with two consoles.
EKP-221
- Extends VGA and PS/2 signals up to 150 m (490 ft) over Category 5 UTP cable.
- Dual consoles allow two users, local and remote, to share one or two computers.
- Console connectors are miniDIN6 keyboard and mouse plus an HDB15 monitor port; the console can be USB or PS/2.
- Video compensation is adjusted by hotkey for the cable length, and resolution can be synchronised between attached computers by hotkey.
- Supports 1024 x 768 at 150 m and is compatible with XGA, VGA and SVGA systems.
- Works with common wheel and optical mice.
- Beeps confirm key controls, with simple status indication.
- External DC 9V, 500mA adapter; each unit is 20 x 156 x 65 mm.
Overview
Dual-Console VGA and PS/2 KVM Extender over CAT.x, 150 m

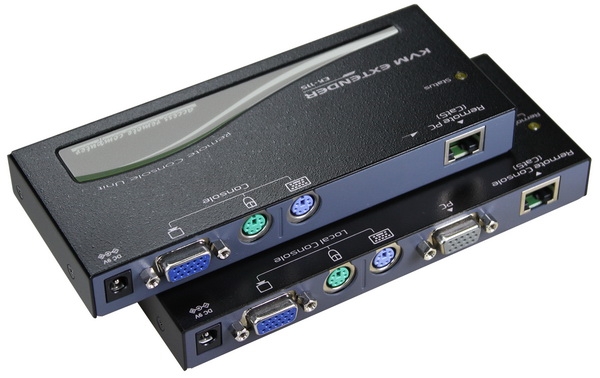

The EKP-221 pairs a console unit (EKP-11S) with a computer unit (EKP-21P) to place a PS/2 computer up to 150 m from its keyboard, mouse and monitor. Both ends carry console connectors, so two users can share one or two computers. It suits control rooms, workshops and any space where the computer should stay out of the work area.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- VGA
- Max. resolution
- 1024 x 768 @ 150m
Features
- Extends VGA and PS/2 signals up to 150 m (490 ft) over Category 5 UTP cable.
- Dual consoles allow two users, local and remote, to share one or two computers.
- Console connectors are miniDIN6 keyboard and mouse plus an HDB15 monitor port; the console can be USB or PS/2.
- Video compensation is adjusted by hotkey for the cable length, and resolution can be synchronised between attached computers by hotkey.
- Supports 1024 x 768 at 150 m and is compatible with XGA, VGA and SVGA systems.
- Works with common wheel and optical mice.
- Beeps confirm key controls, with simple status indication.
- External DC 9V, 500mA adapter; each unit is 20 x 156 x 65 mm.
Specifications
| Model Name | EKP-221 |
|---|---|
| Connection | CAT5-RJ45-Female |
| Console (Station) Unit Connectors | Console Keyboard: miniDIN6, Female x 1 Mouse: miniDIN6, Female x 1 Monitor: HDB15 Female x 1 (Blue) Computer N/A |
| Computer Unit Connectors | Console Keyboard: miniDIN6, Female x 1 Mouse: miniDIN6, Female x 1 Monitor: HDB15 Female x 1 (Blue) Computer HDB15 Female x 1 (Blue) for PS/2 Interface |
| Push Button | Control Status Selection |
| Video Resolution | 1024 x 768 @ 150m |
| Weight (g) | 305 - 315 |
| Power Consumption (Max.) | External Power Adapter DC 9V, 500mA |
| Dimensions H x W x D (mm) | 20 x 156 x 65 |
Specifications are subject to change. Please confirm critical values with us before ordering.

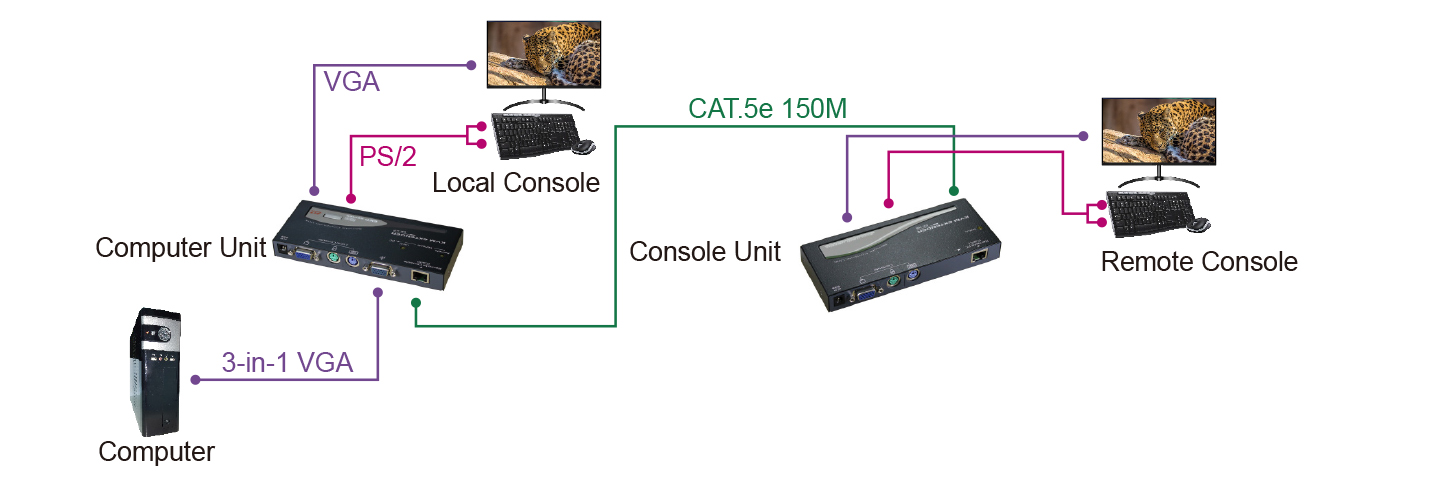

Connection
