4K HDMI HDBaseT Extender Set with IR, Serial and LAN, 100 m (PoC)
Transmitter and receiver pair that extends uncompressed 4K HDMI, IR, RS-232 and Ethernet over one CAT.x cable.
EVBMN-M110
- Sends uncompressed HDMI up to 100 m (330 ft) at 1080p and up to 70 m at 4K over CAT.5e/6/7.
- Supports resolutions up to 4K at 30 Hz (4:4:4) and HDR10.
- HDCP 1.4 compliant, with HDMI CEC support.
- HDBaseT delivers uncompressed video with low latency.
- Bidirectional IR extension via 3.5 mm jacks for controlling sources or displays from either side.
- RS-232 serial extension over DB9 connectors for control systems.
- LAN extension with three 10/100 Mbps RJ45 ports on each unit.
- PoC powers the pair from either the transmitter or the receiver side; plug-and-play with no software or drivers. STP cabling is advised in high-interference environments.
LAN Extension4K@60Hz 4:2:04K@30HzBidirectional IR ExtensionRS-232 ExtensionHDCP 1.4
Overview
4K HDMI HDBaseT Extender Set with IR, Serial and LAN, 100 m (PoC)

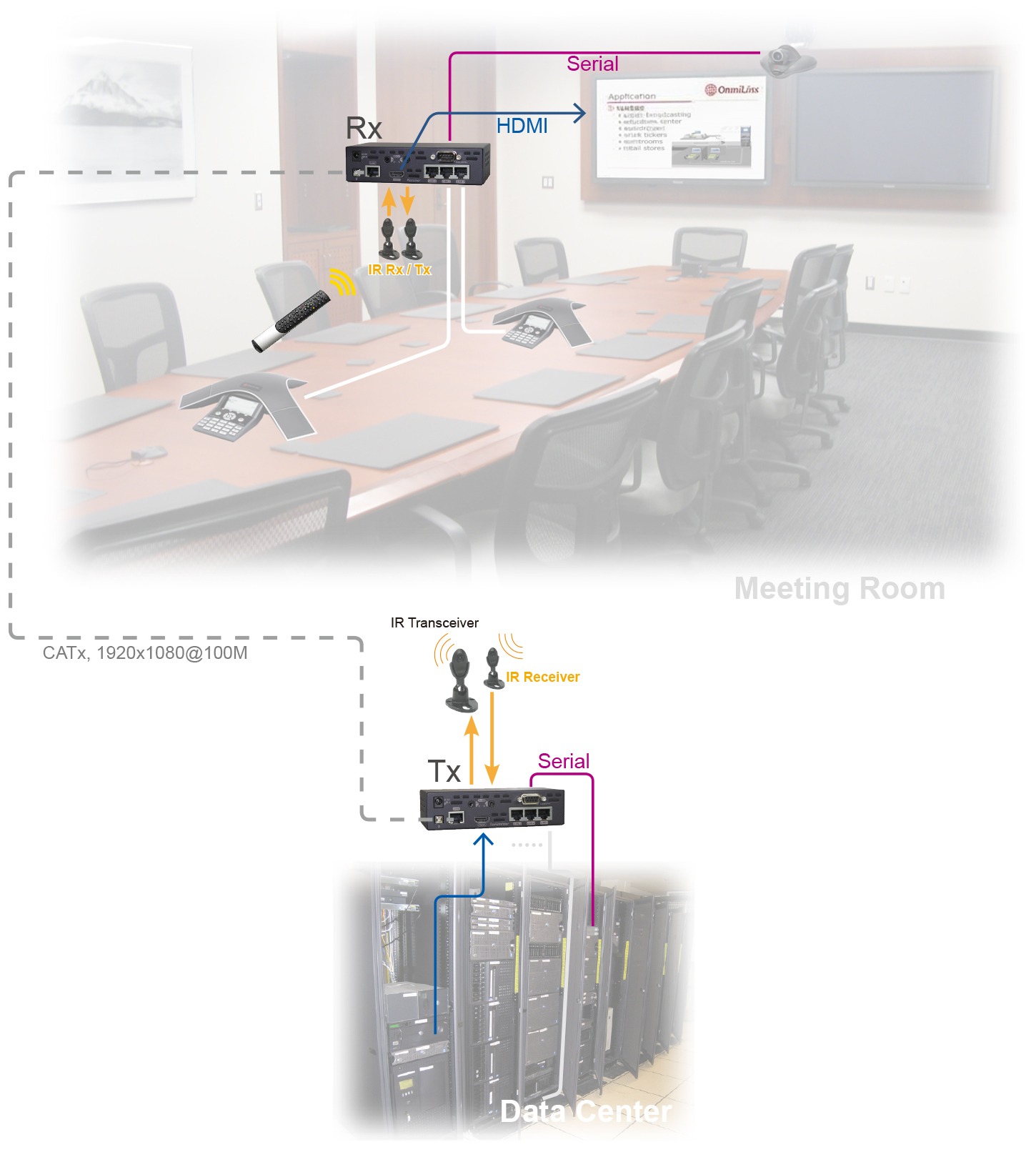

The EVBMN-M110 set (EVBMN-110L transmitter and EVBMN-110R receiver) uses HDBaseT to move uncompressed HDMI to a remote display. IR, serial and a three-port Ethernet switch travel on the same cable, so source and display can be controlled and networked from either end. It is intended for conference rooms, digital signage and home AV installations.
At a glance
- Category
- HDBaseT Extenders
- Video interface
- HDMI
- Max. resolution
- 3840x2160@30Hz ( 4:4:4 )
- Distance
- MAX. 70 Meters@4K, MAX. 100 Meters@1080P
- HDCP
- HDCP 1.4
Features
- Sends uncompressed HDMI up to 100 m (330 ft) at 1080p and up to 70 m at 4K over CAT.5e/6/7.
- Supports resolutions up to 4K at 30 Hz (4:4:4) and HDR10.
- HDCP 1.4 compliant, with HDMI CEC support.
- HDBaseT delivers uncompressed video with low latency.
- Bidirectional IR extension via 3.5 mm jacks for controlling sources or displays from either side.
- RS-232 serial extension over DB9 connectors for control systems.
- LAN extension with three 10/100 Mbps RJ45 ports on each unit.
- PoC powers the pair from either the transmitter or the receiver side; plug-and-play with no software or drivers. STP cabling is advised in high-interference environments.
Specifications
| Model Name | EVBMN-M110 ( PoC ) | |
|---|---|---|

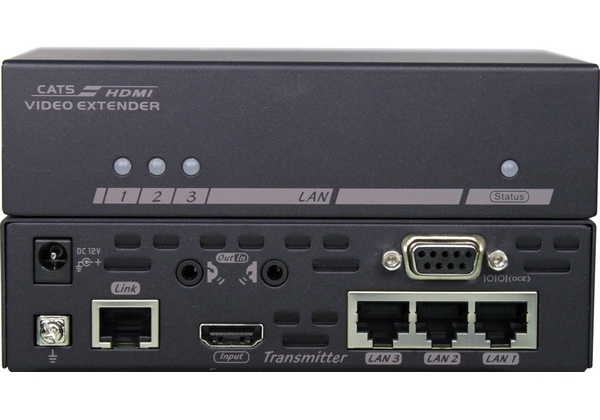

| EVBMN-110L (Transmitter) | EVBMN-110R (Receiver) | |
| MAX.Resolution | 3840x2160@30Hz ( 4:4:4 ) 3840x2160@60Hz ( 4:2:0 ) | |
| Video Interface | HDMI 1.4 x 1 ( In ) | HDMI 1.4 x 1 ( Out ) |
| Bidirectional IR Extension | 3.5mm IR Jack x 1 ( In ) 3.5mm IR Jack x 1 ( Out ) | 3.5mm IR Jack x 1 ( Out ) 3.5mm IR Jack x 1 ( In ) |
| Serial Extension | DB9 x 1 ( DCE ) | DB9 x 1 ( DTE ) |
| LAN Extension | RJ45 x 3 ( 10/100Mbps ) | RJ45 x 3 ( 10/100Mbps ) |
| LED Indicator | Status x 1 LAN x 3 | Status x 1 LAN x 3 |
| HDCP Compliance | HDCP 1.4 | |
| HDBaseT Interface | RJ45 x 1 ( CAT.5e/6/7 ) ( STP cabling is recommended for environments with high EMI or RFI. For the best performance results, please refer to the manual for further details. ) | |
| Extension Range | MAX. 70 Meters@4K MAX. 100 Meters@1080P | |
| Power Supply | DC 12V ( PoC ) | DC 12V ( PoC ) |
| Operation Environment | 0~40°C, Humidity<80% | |
| Storage Temperature | -20~60°C | |
| Enclosure | Metal | |
| H x W x D (mm) | 38 x 140 x 85 | 38 x 140 x 85 |
| Weight (g) | 500 | 500 |
Specifications are subject to change. Please confirm critical values with us before ordering.

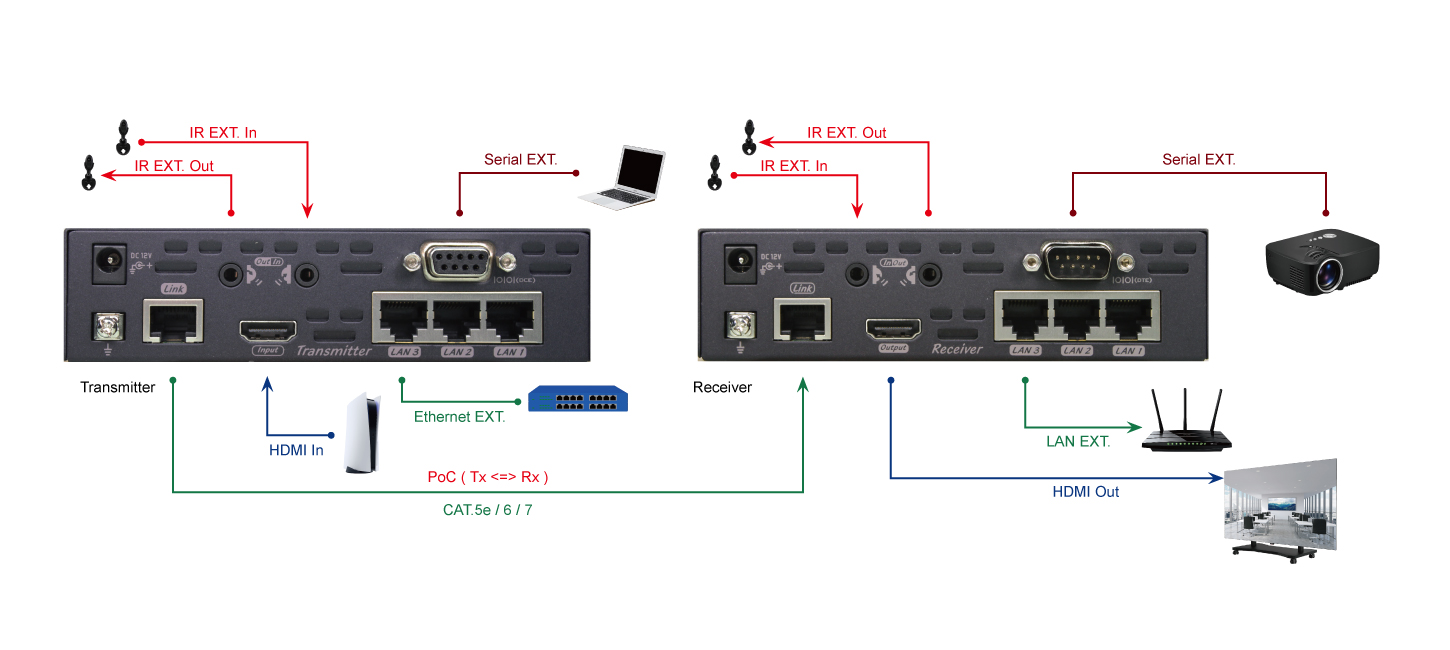

Connection
