4-Port USB 3.2 Gen 1 Switch with Hotkey, Serial and IR Control
Switch that lets four computers share USB peripherals, with USB 3.2 Gen 1 host support.
USW-K334
- Lets four host computers share and switch USB peripherals.
- Control by front-panel buttons, serial, hotkey or optional IR remote.
- Port rule slider divides peripherals into two or three groups.

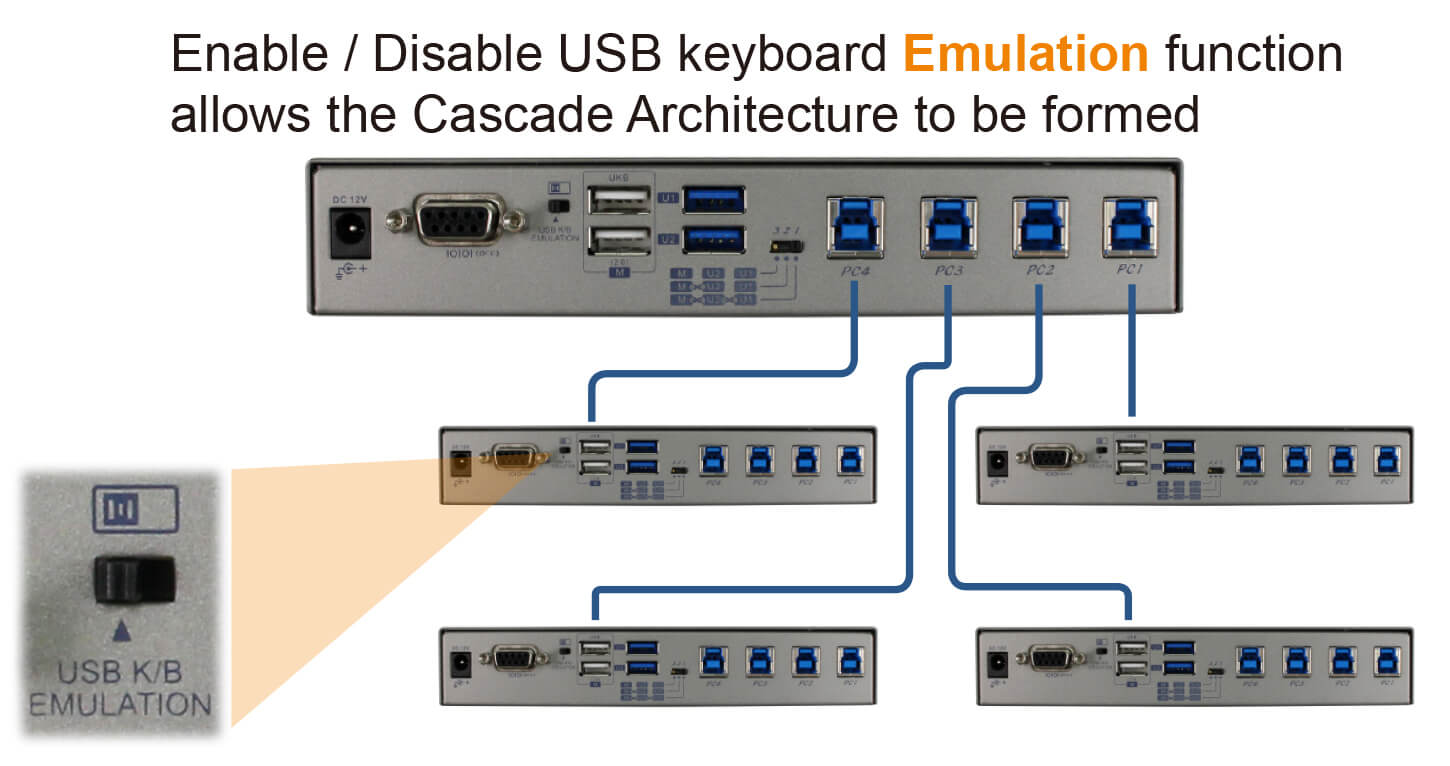

- Slide switch enables or disables USB keyboard emulation.
- Supports USB 3.2 Gen 1 SuperSpeed hosts and is compatible with USB 3.2 Gen 1, 2.0 and 1.1 data rates.
- Front-panel LEDs show connection and status for each host and peripheral.
- Plug and play with no drivers or software; works with Windows, Mac and Linux.
- Suits devices such as webcams, printers and scanners.
USB 3.2 Gen 1USB 2.0USB HIDRS-232 ControlHotkey ControlIR Control
Overview
4-Port USB 3.2 Gen 1 Switch with Hotkey, Serial and IR Control

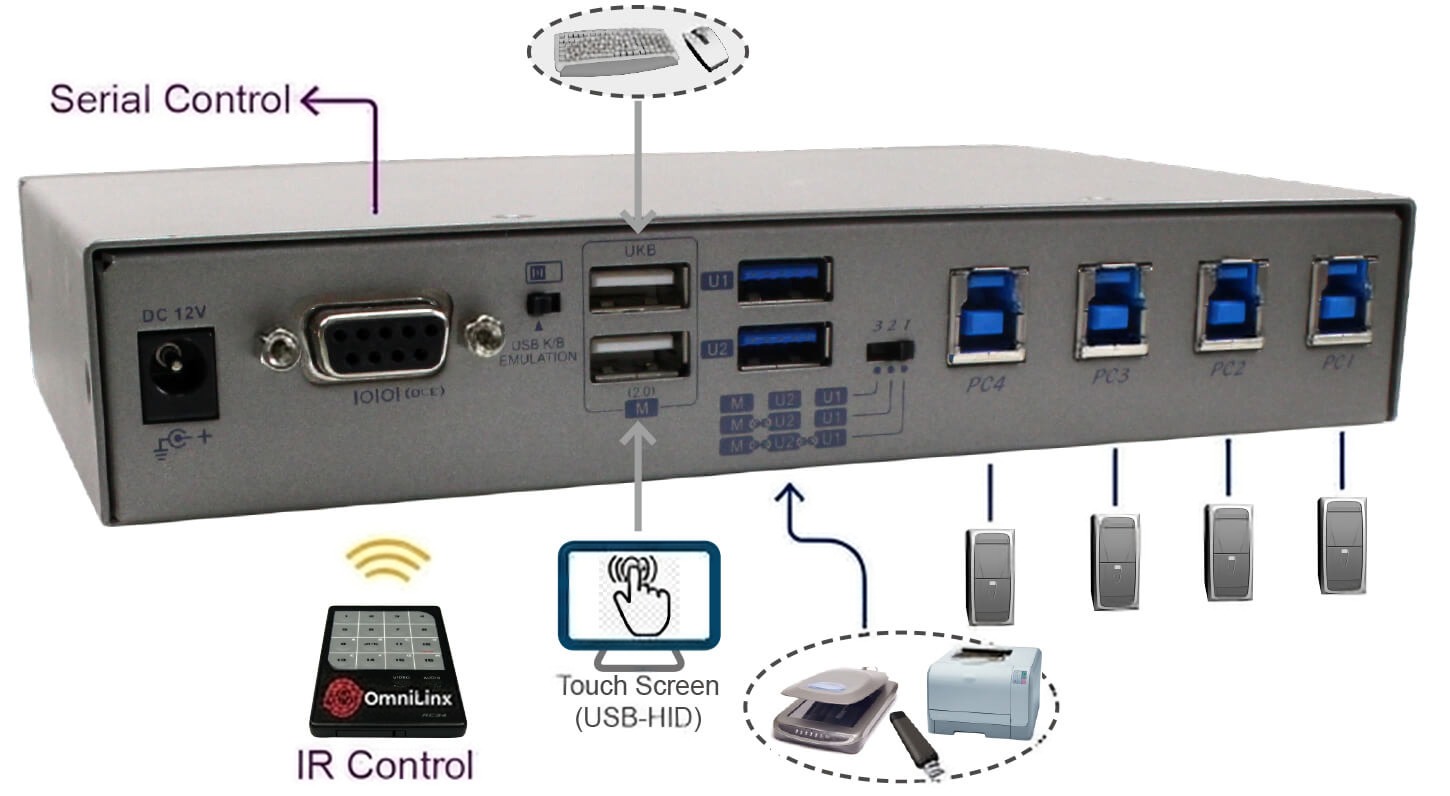

The USW-K334 connects four host computers to a pool of USB devices, switching them by front-panel buttons, hotkeys, RS-232 or optional IR remote. It has two USB peripheral ports and two keyboard/mouse ports, and port rules let the devices be split into groups. It suits shared labs, test benches and multi-PC desks.
At a glance
- Category
- USB & KM Switches
- Video interface
- USB
- Ports
- 4 ports
Features
- Lets four host computers share and switch USB peripherals.
- Control by front-panel buttons, serial, hotkey or optional IR remote.
- Port rule slider divides peripherals into two or three groups.
- Slide switch enables or disables USB keyboard emulation.
- Supports USB 3.2 Gen 1 SuperSpeed hosts and is compatible with USB 3.2 Gen 1, 2.0 and 1.1 data rates.
- Front-panel LEDs show connection and status for each host and peripheral.
- Plug and play with no drivers or software; works with Windows, Mac and Linux.
- Suits devices such as webcams, printers and scanners.
Specifications
| Model Name | USW-K334 |
|---|---|

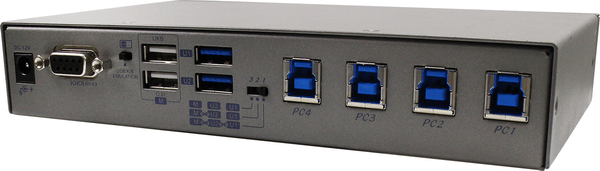

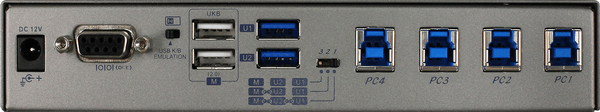

| Input Port | USB 3.2 Gen 1 Type B x 4 DB-9 Female x 1 |
| Output Port | USB-A x 2(USB Peripheral) USB-A x 2(USB Keyboard/Mouse) |

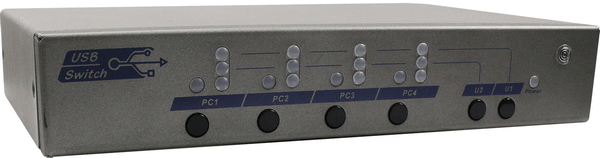

| Push Button | Port Designation x 4 USB Peripheral Selection x 2 |
| Slide Switch | USB Keyboard Emulation x 1 USB Peripherals Port Rule Selection x 1 |

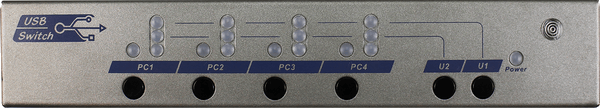

| LED Indicator (Power / Status) | Power/System Status Triple-color LED x 1 PC Port Status Single-color LED x 4 Master Port Status Dual-color LED x 4 USB Peripheral Status U1: Dual-color LED x 4 U2: Dual-color LED x 4 |
| Compatibility | USB 3.2 Gen 1 / 2.0 / 1.1 |
| IR Remote Control | 1 |
| Serial Control | 1 |
| Enclosure | Metal |
| Power Supply | DC 9~12V |
| H x W x D (mm) | 34 x 190 x 118 |
Specifications are subject to change. Please confirm critical values with us before ordering.
