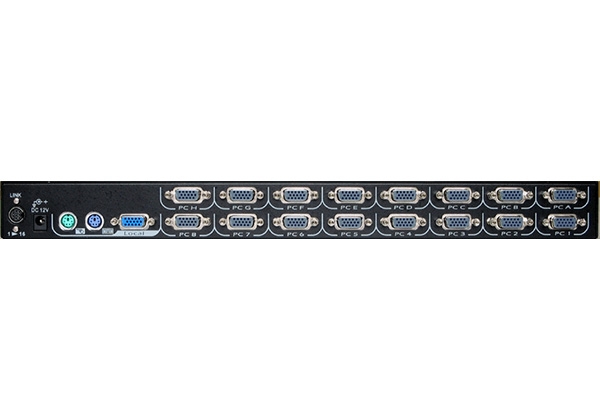

16-Port VGA KVM Switch Module, USB and PS/2
1U 16-port VGA KVM module for PS/2 and USB computers, cascadable to 136 systems.
IUM-116D
- Connects 16 computers with VGA video through USB combo ports, supporting PS/2 PCs, USB PCs, USB Sun and USB Mac.
- Control by OSD, hotkeys or push buttons (buttons when used with a KVM drawer).
- Video up to 1920 x 1440 at 60 Hz (4:4:4), DDC2B compatible.
- Computers can be named and selected by name; auto-scan cycles through them.
- Keyboard state is saved and restored when switching.
- Cascades up to 136 computers and works with all 19-inch rack-mount PS/2 KVM switches.
- Supports Microsoft IntelliMouse (Pro), PS/2 and serial mouse, and Sun and HP servers.
- 3-in-1 KVM cables; OS independent; plug and play; 1U metal enclosure.
USB HIDHotkey Control
Overview
16-Port VGA KVM Switch Module, USB and PS/2
The IUM-116D is a 1U KVM module that connects 16 computers to one console, with OSD and hotkey control. It works with PS/2 and USB PCs plus USB Sun and Mac systems, and 3-in-1 cables keep wiring tidy. It is meant for server racks and equipment rooms.
At a glance
- Category
- Rack Console & KVM Modules
- Video interface
- VGA
- Ports
- 16 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 ), DDC2B
Features
- Connects 16 computers with VGA video through USB combo ports, supporting PS/2 PCs, USB PCs, USB Sun and USB Mac.
- Control by OSD, hotkeys or push buttons (buttons when used with a KVM drawer).
- Video up to 1920 x 1440 at 60 Hz (4:4:4), DDC2B compatible.
- Computers can be named and selected by name; auto-scan cycles through them.
- Keyboard state is saved and restored when switching.
- Cascades up to 136 computers and works with all 19-inch rack-mount PS/2 KVM switches.
- Supports Microsoft IntelliMouse (Pro), PS/2 and serial mouse, and Sun and HP servers.
- 3-in-1 KVM cables; OS independent; plug and play; 1U metal enclosure.
Specifications
| Model Name | IUM-116D |
|---|---|
| Computer/Server Ports (input) | VGA x 16 ( USB Combo Port ) |
| Console Ports (output) | C-36 VGA x 1 PS/2 x 2 (Keyboard & Ｍouse) |
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ), DDC2B |
| Push Buttons | 8, Available When Connected to a KVM Drawer |
| LCD KVM drawer connector | C-36 |
| Control Methods | Hotkey / OSD / Push Button |
| Applicable to computer | PS/2 PC, USB PC, USB-Sun, USB-Mac |
| Hot Plug-and-Play | Yes |
| Max Cascade Computers | 136 |
| On-Screen Display (OSD) | Yes |
| Size | 1U |
| Operation Environment | DC 9~12V |
| Storage Temperature | 0~40°C, Humidity<80% |
| Power Supply | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 44 x 404 x 114 |
Specifications are subject to change. Please confirm critical values with us before ordering.
