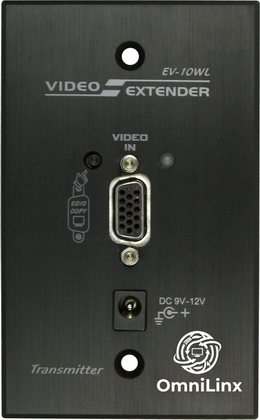

Wall-Plate VGA Video Extender Transmitter over CAT.x, 165 m
Single-gang wall-plate VGA transmitter that extends video up to 165 m over Cat5.
EV-10WL
- Extends VGA video up to 165 m over CAT5, CAT5e or CAT6 UTP cable between the transmitter and receiver.
- Supports Full HD 1920 x 1080 and WUXGA 1920 x 1200, with common resolutions from XGA upward.
- Plug-and-play on Windows, Mac, Sun and Linux with no drivers or software.
- EDID Copy reads the display's EDID and presents it to the computer; a default profile is used when none is available.
- EQ (sharpness) adjustment optimises signal clarity.
- Power by DC jack on the front panel or by terminal block at the rear; phantom power allows either unit to be powered, with 12V at the receiver recommended.
- Single-gang plastic enclosure with HDB15 female input and RJ-45 output.
Overview
Wall-Plate VGA Video Extender Transmitter over CAT.x, 165 m
The EV-10WL fits into a single-gang wall box and sends VGA over one UTP cable to a receiver up to 165 m away. EDID copy and an EQ adjustment help keep the image correct and sharp. It suits retail, exhibits, courtrooms and public displays.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- VGA
- Max. resolution
- Full HD (1920 x 1080), WUXGA (1920 x 1200
- Distance
- 165M
Features
- Extends VGA video up to 165 m over CAT5, CAT5e or CAT6 UTP cable between the transmitter and receiver.
- Supports Full HD 1920 x 1080 and WUXGA 1920 x 1200, with common resolutions from XGA upward.
- Plug-and-play on Windows, Mac, Sun and Linux with no drivers or software.
- EDID Copy reads the display's EDID and presents it to the computer; a default profile is used when none is available.
- EQ (sharpness) adjustment optimises signal clarity.
- Power by DC jack on the front panel or by terminal block at the rear; phantom power allows either unit to be powered, with 12V at the receiver recommended.
- Single-gang plastic enclosure with HDB15 female input and RJ-45 output.
Specifications
| Model Name | EV-10WL |
|---|---|
| Video Resolution (max.) | Full HD (1920 x 1080), WUXGA (1920 x 1200 |
| Input / Output | HDB15-F x1 / RJ-45 |
| LED(Power/EDID Copy x1) | x 1 |
| Extension Distance | 165M |
| Enclosure | Plastic |
| Power Supply | DC 9-12V |
Specifications are subject to change. Please confirm critical values with us before ordering.

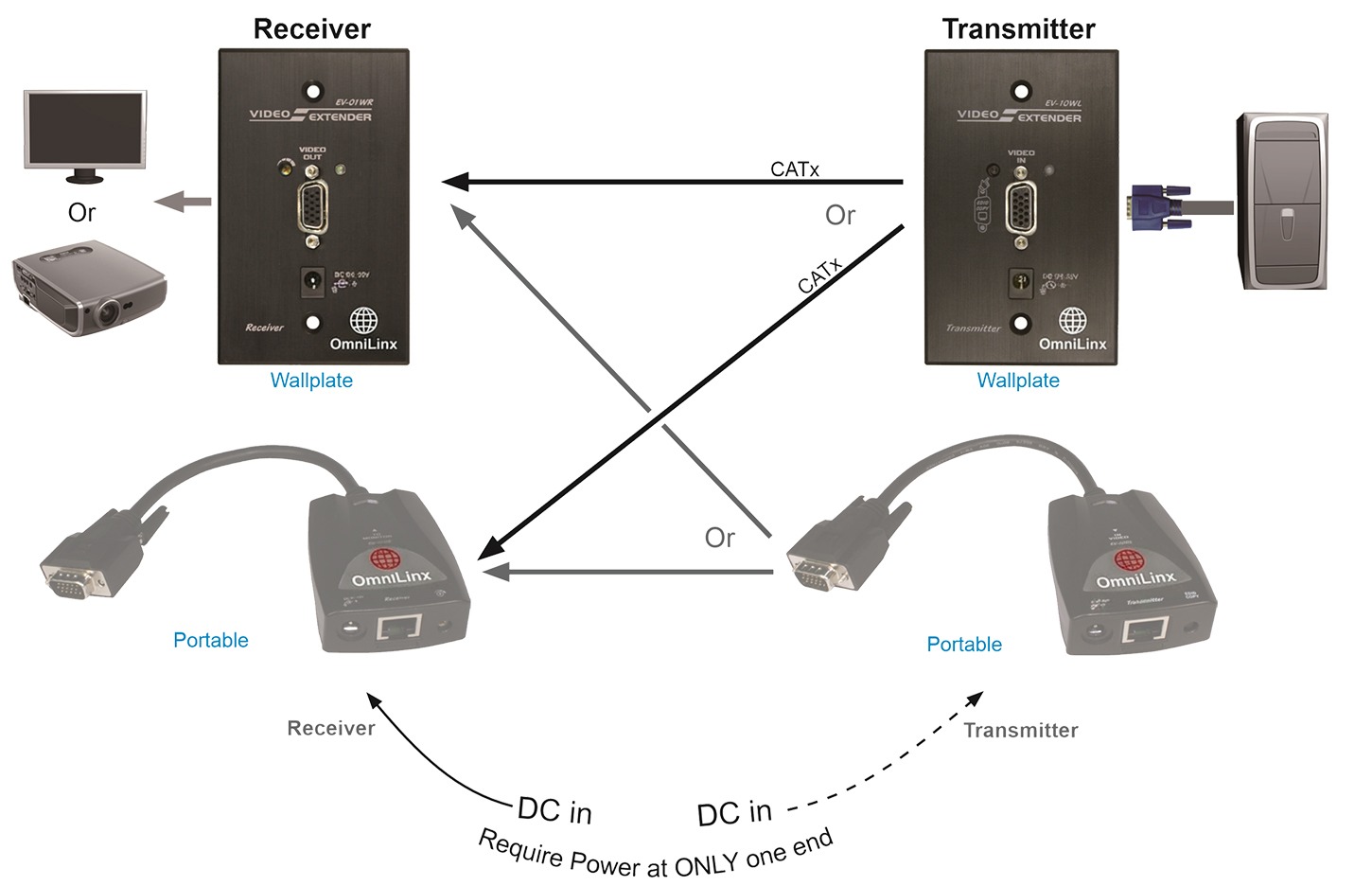

Connection
