True 4K HDMI 2.0 Video Booster
Compact HDMI 2.0 booster that restores signal over long cable runs, up to 4K 60 Hz.
VBSTM-K06
- Compensates for signal loss on long HDMI 2.0 cable runs.
- Reach with the booster in line: 18 m (8 m + 10 m) at 4K 60 Hz, 25 m (10 m + 15 m) at 4K 30 Hz, and 35 m (15 m + 20 m) at 1080p.
- Supports resolutions up to 4096 x 2160 and 3840 x 2160 at 60 Hz (4:4:4).
- TMDS clock rate up to 600 MHz.
- HDCP 2.2 and 1.4 compliant.
- Automatic EQ adjusts sharpness.
- Compact metal and aluminum body, powered by 5 V DC via Mini-USB.
- Suited to office, home entertainment, digital signage and education.
4K@60Hz 4:4:44K@60Hz 4:2:04K@30HzHDCP 2.2HDCP 1.4
Overview

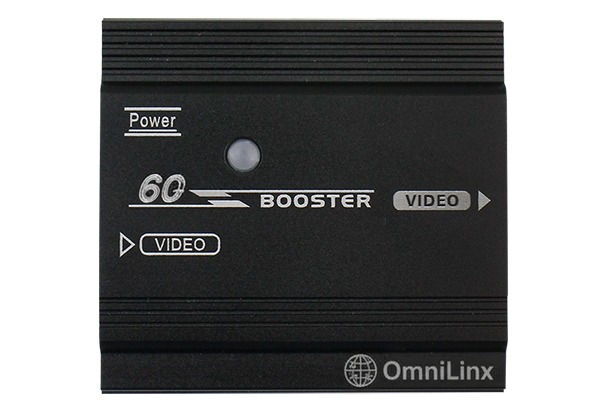

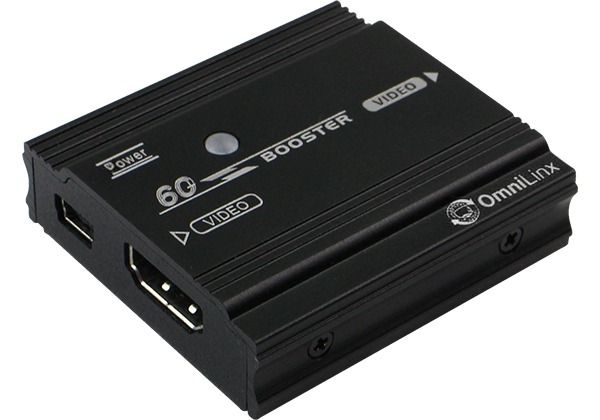

True 4K HDMI 2.0 Video Booster
The VBSTM-K06 is an inline HDMI signal booster for installations where cable length would otherwise degrade the picture. It supports 4K at 60 Hz (4:4:4) and HDCP 2.2/1.4. Its small body fits narrow spaces, making it useful in offices, signage and education.
At a glance
- Category
- EDID, Boosters & Converters
- Video interface
- HDMI
- Max. resolution
- 4096 x 2160@60Hz ( 4:4:4 )
- Distance
- 18M ( 8M+10M ) for 4K 60 Hz ( 4:4:4 ), 25M ( 10M+15M ) for 4K 30 Hz ( 4:4:4 ), 35M ( 15M+20M ) for 1080P
- HDCP
- 2.2 / 1.4
Features
- Compensates for signal loss on long HDMI 2.0 cable runs.
- Reach with the booster in line: 18 m (8 m + 10 m) at 4K 60 Hz, 25 m (10 m + 15 m) at 4K 30 Hz, and 35 m (15 m + 20 m) at 1080p.
- Supports resolutions up to 4096 x 2160 and 3840 x 2160 at 60 Hz (4:4:4).
- TMDS clock rate up to 600 MHz.
- HDCP 2.2 and 1.4 compliant.
- Automatic EQ adjusts sharpness.
- Compact metal and aluminum body, powered by 5 V DC via Mini-USB.
- Suited to office, home entertainment, digital signage and education.
Specifications
| Model Name | VBSTM-K06 |
|---|---|

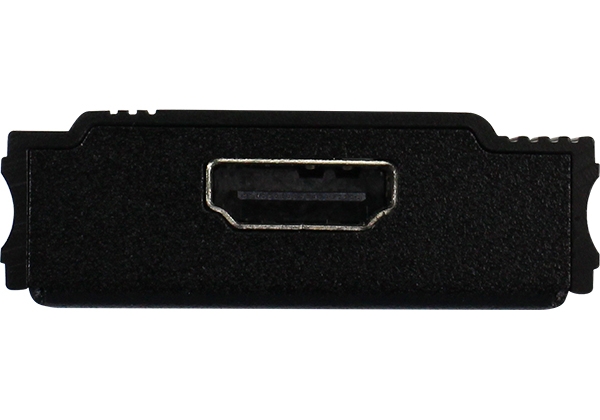

| Video Input | HDMI x 1 |
| Video Output | HDMI x 1 |
| MAX. Video Resolution | 4096 x 2160@60Hz ( 4:4:4 ) 3840 x 2160@60Hz ( 4:4:4 ) |
| MAX. Extension Distance | 18M ( 8M+10M ) for 4K 60 Hz ( 4:4:4 ) 25M ( 10M+15M ) for 4K 30 Hz ( 4:4:4 ) 35M ( 15M+20M ) for 1080P |
| MAX. TMDS Clock Rate | 600MHz |
| LED Indicator | Status LED |
| HDCP Compliance | 2.2 / 1.4 |

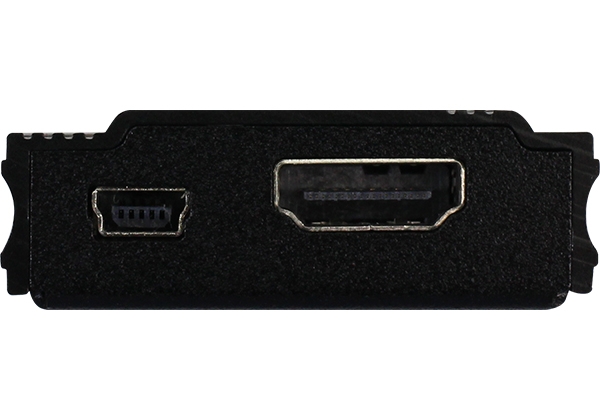

| Power Supply | DC 5V ( Mini-USB ) |
| Operating Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal + Aluminum |
| H x W x D (mm) | 15 x 47 x 50 |
| Weight (g) | 56 |
Specifications are subject to change. Please confirm critical values with us before ordering.

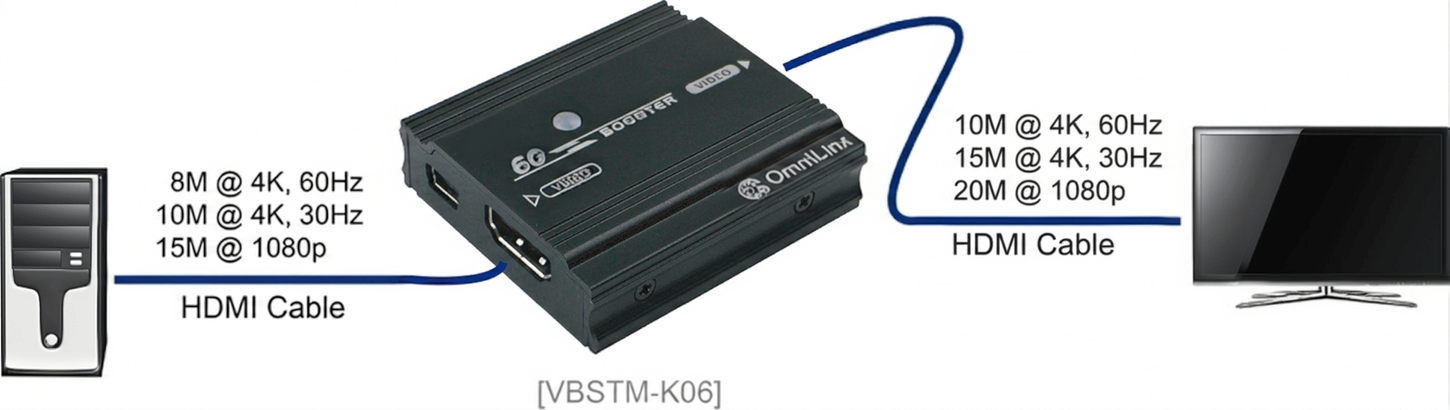

Connection
