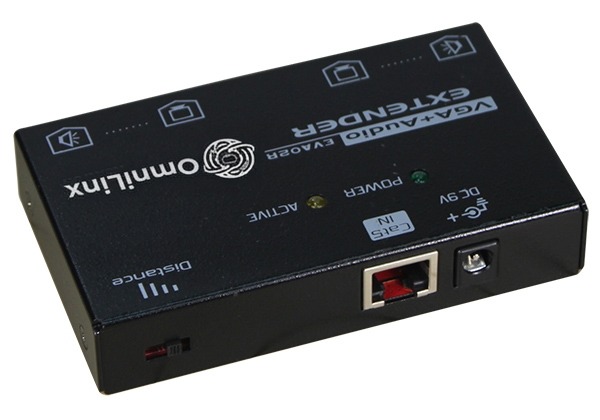

VGA and Audio Receiver over CAT.x, 1280x1024 at 150 m
Receiver unit that delivers VGA and audio over Cat5 to two local outputs.
EVA-02R
- Receives VGA video and audio sent over CAT5 unshielded twisted pair cable.
- Supports resolutions up to 1280 x 1024 at distances up to 150 m.

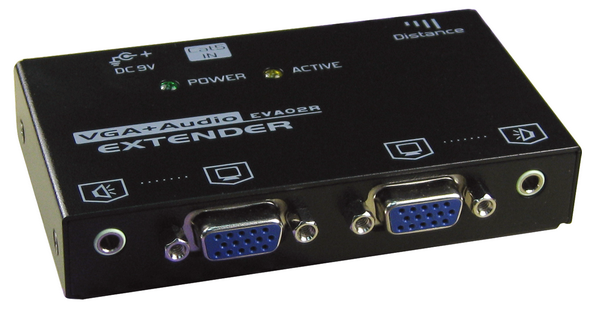

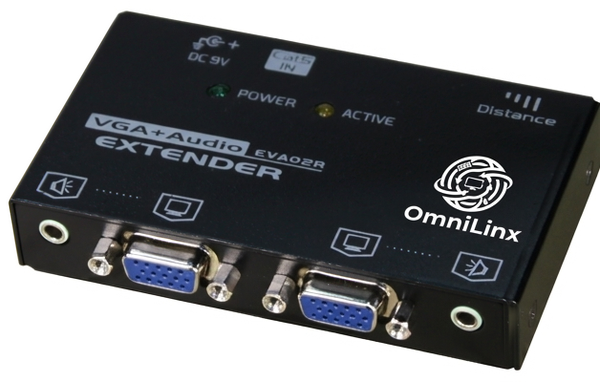

- Provides two VGA outputs with audio, so the signal can feed a pair of displays.

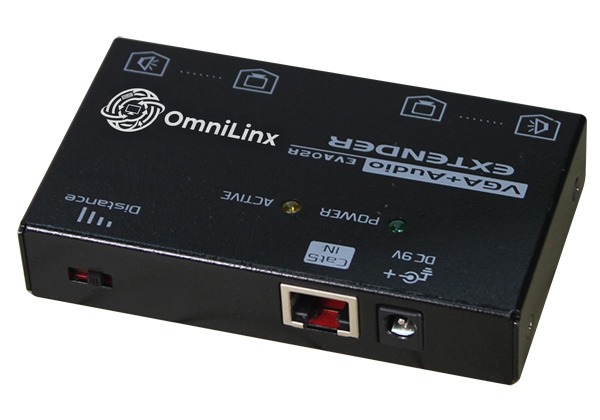

- Gain (equalization) selector on the unit tunes signal clarity to the cable length.
- Common-mode noise suppression circuit helps keep the VGA image clean over inexpensive unshielded cable.
- Designed to pair with the EVA-12L transmitter, or the EVA-128L 8-port VGA and audio extender splitter.
Overview
VGA and Audio Receiver over CAT.x, 1280x1024 at 150 m
The EVA-02R is the receiving end of a VGA and audio extension link over CAT5 cable. It accepts the signal from a compatible transmitter and passes it to two VGA and audio outputs. A gain control lets the installer tune picture clarity to the length of the cable run.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- VGA
Features
- Receives VGA video and audio sent over CAT5 unshielded twisted pair cable.
- Supports resolutions up to 1280 x 1024 at distances up to 150 m.
- Provides two VGA outputs with audio, so the signal can feed a pair of displays.
- Gain (equalization) selector on the unit tunes signal clarity to the cable length.
- Common-mode noise suppression circuit helps keep the VGA image clean over inexpensive unshielded cable.
- Designed to pair with the EVA-12L transmitter, or the EVA-128L 8-port VGA and audio extender splitter.
