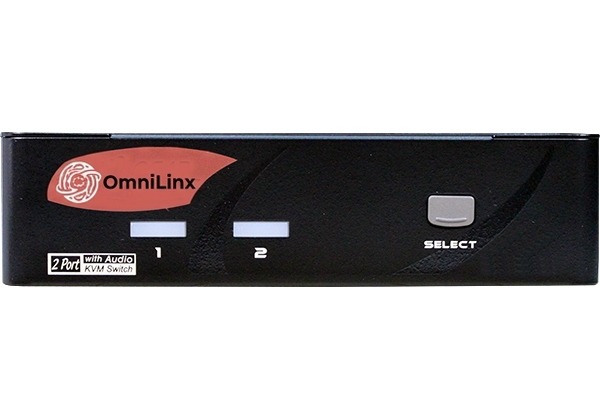

2-Port HDMI KVM Switch with USB 2.0 and Two-Way Audio
Share a keyboard, mouse, HDMI monitor, USB devices and audio between two computers.
MAAG-112
- Two HDMI computers share one keyboard, mouse and monitor, plus four USB peripheral connections for keyboard, mouse and other USB 2.0 devices.
- Maximum resolution 1920x1200 at 60Hz (4:4:4) and 1920x1080 at 60Hz; HDCP 1.4 compliant and Blu-ray ready.
- Two-way analogue audio through 3.5mm speaker and microphone jacks; audio embedded in HDMI is also supported when the computer sends it over the video port.
- Select a computer with the front-panel button or a keyboard hotkey, and hear a buzzer on every switch.
- Auto scan at 3, 8, 15 or 30 second intervals.
- Detects hot plug and unplug events and link-status failures.
- Follows VESA and CEA standards, and is plug-and-play with no software or drivers.
- Metal housing, DC 9-12V power, 40 x 160 x 100 mm and 580 g.
USB 2.0USB HIDHotkey ControlHDCP 1.4
Overview
2-Port HDMI KVM Switch with USB 2.0 and Two-Way Audio
The MAAG-112 is a compact two-computer HDMI KVM switch for a single-monitor desk. It shares a USB keyboard, mouse, further USB 2.0 devices and a speaker and microphone pair between both machines. It needs no drivers or software and is aimed at office, lab and home-office workstations.
At a glance
- Category
- KVM Switches
- Video interface
- HDMI
- Ports
- 2 ports
- Max. resolution
- 1920x1200@60Hz (4:4:4)
- HDCP
- HDCP 1.4
Features
- Two HDMI computers share one keyboard, mouse and monitor, plus four USB peripheral connections for keyboard, mouse and other USB 2.0 devices.
- Maximum resolution 1920x1200 at 60Hz (4:4:4) and 1920x1080 at 60Hz; HDCP 1.4 compliant and Blu-ray ready.
- Two-way analogue audio through 3.5mm speaker and microphone jacks; audio embedded in HDMI is also supported when the computer sends it over the video port.
- Select a computer with the front-panel button or a keyboard hotkey, and hear a buzzer on every switch.
- Auto scan at 3, 8, 15 or 30 second intervals.
- Detects hot plug and unplug events and link-status failures.
- Follows VESA and CEA standards, and is plug-and-play with no software or drivers.
- Metal housing, DC 9-12V power, 40 x 160 x 100 mm and 580 g.
Specifications
| Model Name | MAAG-112 |
|---|---|
| Computer/Server Ports (input) | HDMI x 4 ( Single Display x 4 PCs ) USB 2.0 Type B x 4 Audio Jack in x 2 Audio Jack out x 2 |
| Console Ports (output) | HDMI x 1 ( Single Display ) USB 2.0 Type A x 2 ( Rear ) USB HID Type A x 2 ( Rear ) Audio Jack in x 1 Audio Jack out x 1 |
| Video Resolution (Max.) | 1920x1200@60Hz (4:4:4) 1920x1080@60Hz (4:4:4) |
| Push Buttons | Port Selection x 1 |
| HDCP Compliance | HDCP 1.4 |
| Control Methods | Hotkey / Push Button |
| LED Indicator (Power / Status) | Computer Ready x 2 (Green) Computer Selected x 2 (Red) Power x 1 |
| Automatic scan interval | 3, 8, 15, 30 seconds |
| Power Supply | DC 9~12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 40 x 160 x 100 |
| Weight (g) | 580 |
Specifications are subject to change. Please confirm critical values with us before ordering.
Connection
