4-Port KM Switch with USB 3.2 Gen 1, Mouse Roaming and USB Audio
Four-computer keyboard/mouse switch with mouse roaming, USB 3.2 Gen 1 sharing and USB audio.
USW-KM314
- Shares USB peripherals among four computers: three USB HID ports and two USB 3.2 Gen 1 ports.

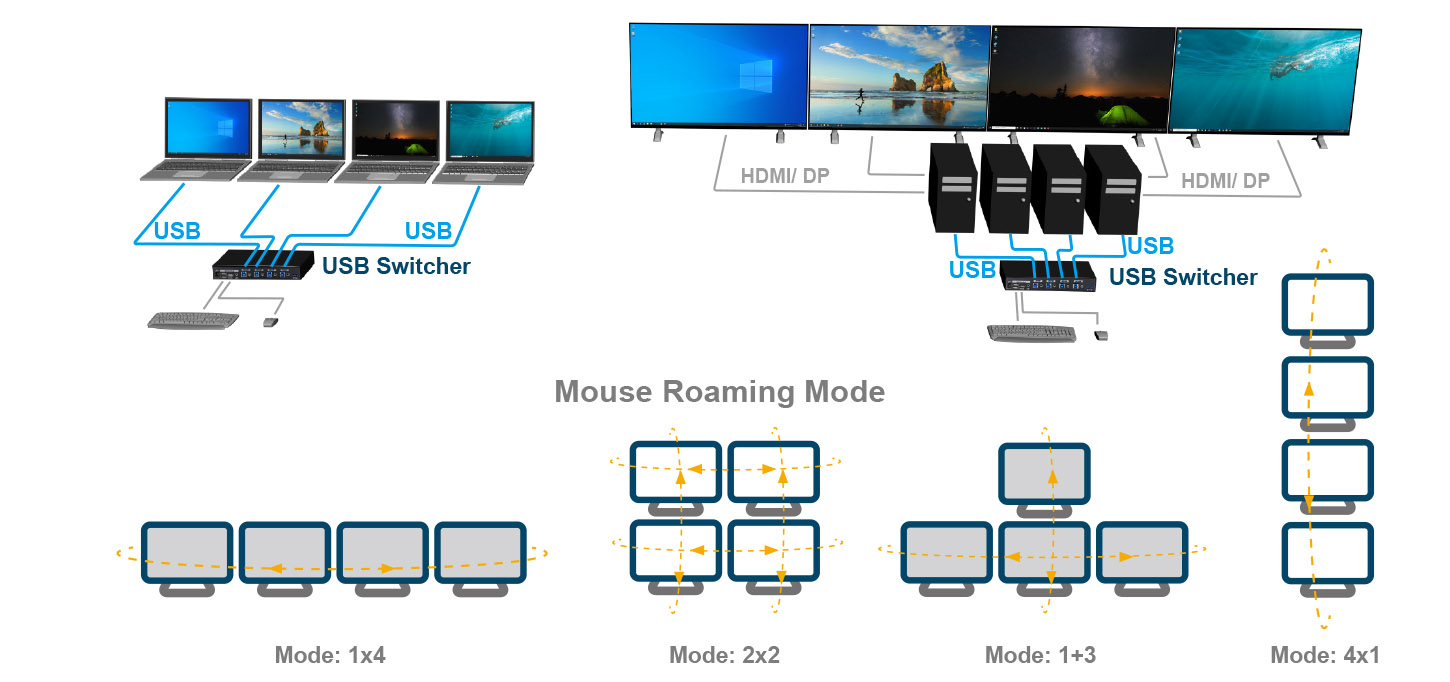

- Mouse roaming switches to the previous or next PC by moving the cursor over a screen border.

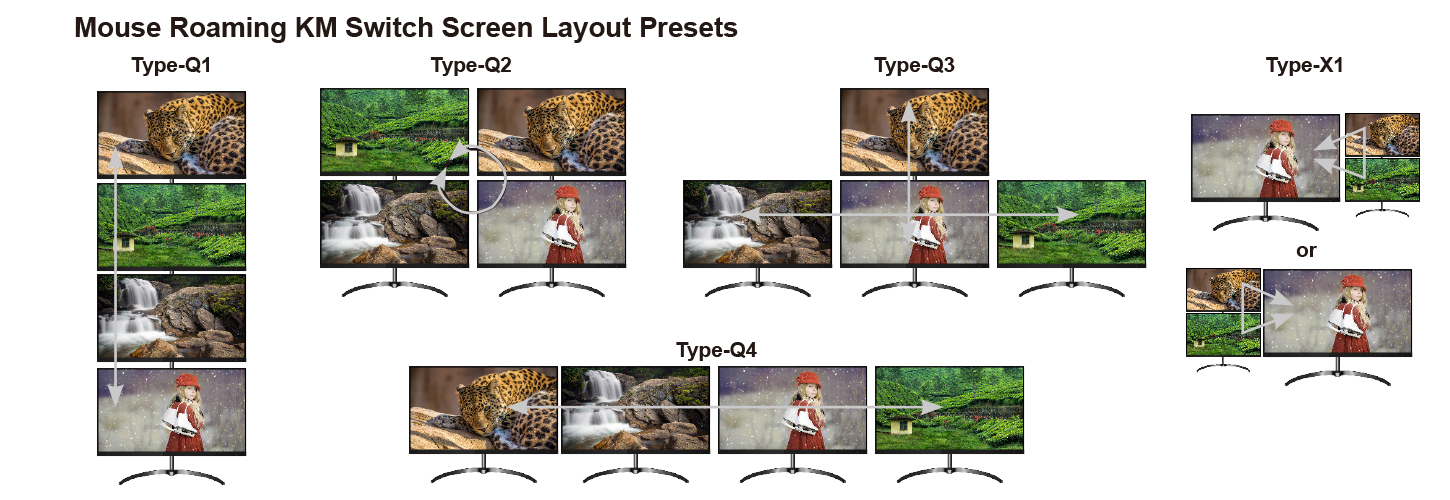

- Preset screen layouts: 1 x 4, 2 x 2, 1 + 3 or 4 x 1.
- Control by front-panel buttons, mouse roaming or hotkeys.
- Absolute-coordinate mouse technology keeps switching smooth across mouse sensitivities.
- Plug-and-play keyboard and mouse; no software needed on Windows, and mixed Windows versions can be used together.
- All four PCs keep running at full processing power simultaneously.
- USB audio support, with a front USB port for easy access.
USB 3.2 Gen 1USB 2.0USB HIDHotkey ControlRoaming Mouse
Overview

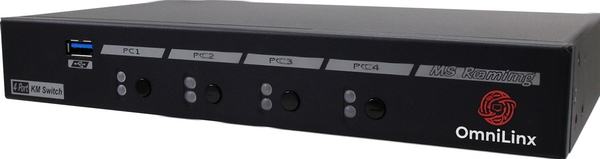

4-Port KM Switch with USB 3.2 Gen 1, Mouse Roaming and USB Audio

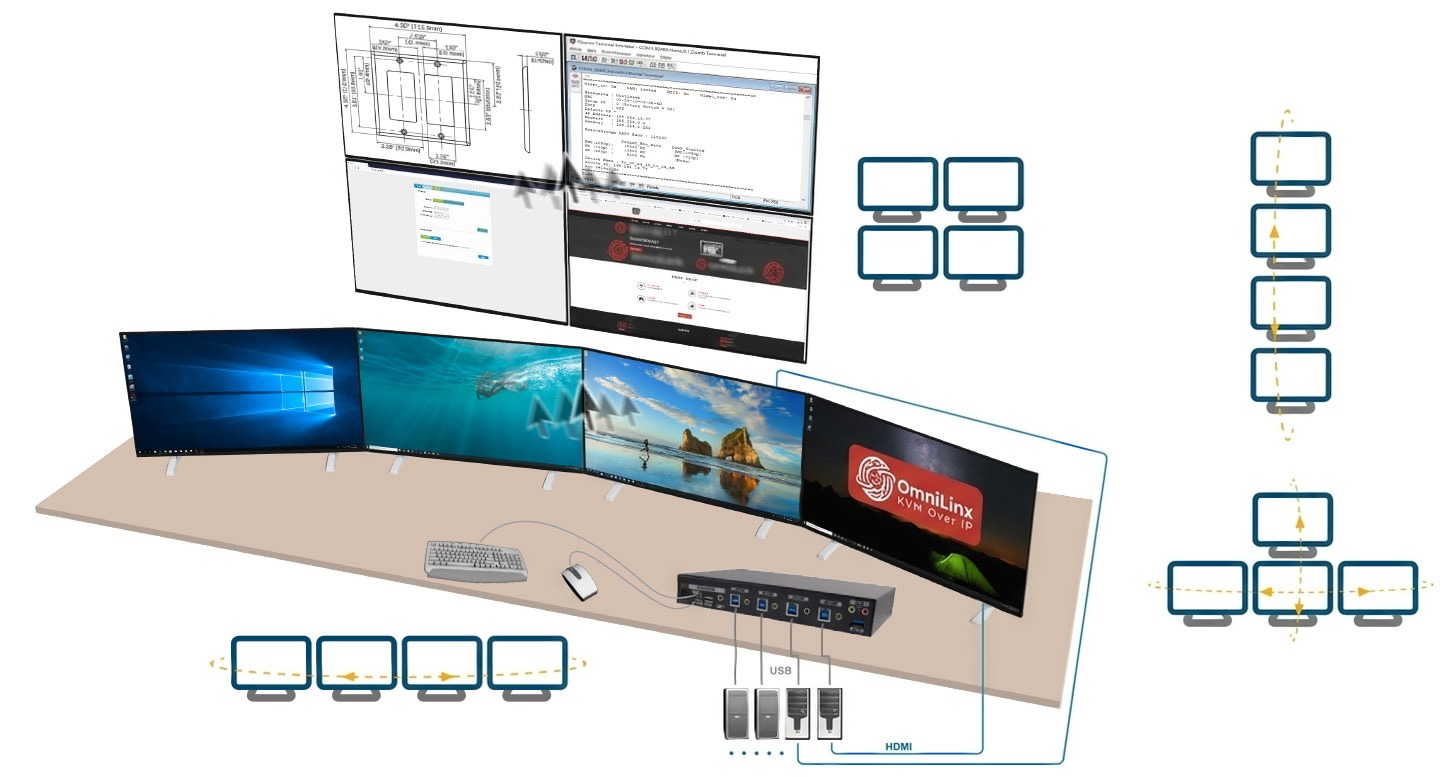

The USW-KM314 lets one keyboard and mouse control four PCs, and the cursor can move between machines by crossing the screen edge. It shares three USB HID devices and two USB 3.2 Gen 1 ports, and handles audio over USB. It is designed for multi-PC desks where all computers must keep processing.
At a glance
- Category
- USB & KM Switches
- Video interface
- USB
- Ports
- 4 ports
Features
- Shares USB peripherals among four computers: three USB HID ports and two USB 3.2 Gen 1 ports.
- Mouse roaming switches to the previous or next PC by moving the cursor over a screen border.
- Preset screen layouts: 1 x 4, 2 x 2, 1 + 3 or 4 x 1.
- Control by front-panel buttons, mouse roaming or hotkeys.
- Absolute-coordinate mouse technology keeps switching smooth across mouse sensitivities.
- Plug-and-play keyboard and mouse; no software needed on Windows, and mixed Windows versions can be used together.
- All four PCs keep running at full processing power simultaneously.
- USB audio support, with a front USB port for easy access.
Specifications
| Model Name | USW-KM314 |
|---|---|
| Computer/Server Ports (input) | USB 3.2 Gen 1 Type B x 4 USB Audio Analog in x1 3.5mm Audio in x 4 |
| Console Ports (output) | USB 3.2 Gen 1 Type A x 2 (Front & Rear) USB HID Type A x 3 USB Audio Analog out x1 3.5mm Audio out x 1 |
| Push Buttons | 4 (For Selection) |
| LED Indicator (Power / Status) | 4 Computer Selected LED, (Red) 4 Computer Ready LED, (Blue) |
| Compatibility | USB 3.2 Gen 1/ USB 2.0 / 1.1 |
| Mouse Roaming | Yes |
| Power Supply | DC 9~12V |
| Operation Environment | 0~50°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 34 x 220 x 130 |
| Weight (g) | 850 |
Specifications are subject to change. Please confirm critical values with us before ordering.
