8K 60 Hz DisplayPort 1.4 Cable, 1.2 m
1.2 m DisplayPort 1.4 cable rated for 32.4 Gbps and 8K at 60 Hz.
CBS-120VPGH
- DisplayPort 1.4 compliant, with 32.4 Gbps bandwidth.
- Supports 8K at 60 Hz, 5K at 120 Hz and 4K at 144 Hz.
- Multi-Stream Transport support.
- Dynamic HDR support.
- Male-to-male DisplayPort connectors, 1.2 m length.
- PVC and ABS overmold; RoHS and REACH compliant.
DSCVRR8K4K@60Hz 4:4:44K@60Hz 4:2:04K@30HzHDCP 2.2HDCP 1.4
Overview

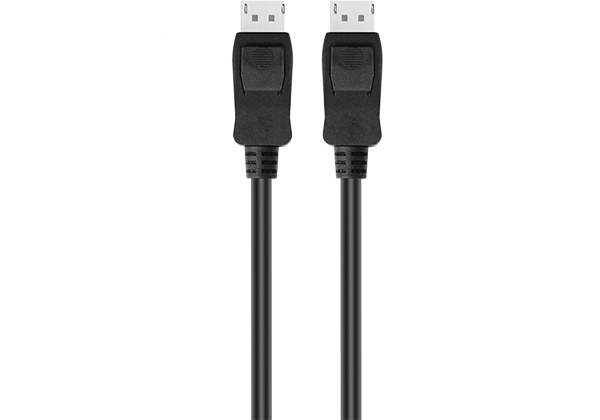

8K 60 Hz DisplayPort 1.4 Cable, 1.2 m
The CBS-120VPGH is a male-to-male DisplayPort 1.4 cable, 1.2 m long, for high-resolution monitors and graphics sources. It supports 8K at 60 Hz as well as high refresh rates at lower resolutions. It suits workstation, design and gaming setups.
At a glance
- Category
- Cables & Accessories
- Video interface
- DisplayPort
- Max. resolution
- 8K@60Hz ( 4:4:4 )
Features
- DisplayPort 1.4 compliant, with 32.4 Gbps bandwidth.
- Supports 8K at 60 Hz, 5K at 120 Hz and 4K at 144 Hz.
- Multi-Stream Transport support.
- Dynamic HDR support.
- Male-to-male DisplayPort connectors, 1.2 m length.
- PVC and ABS overmold; RoHS and REACH compliant.
Specifications
| Model Name | CBS-120VPGH |
|---|---|
| Video Resolution (Max.) | 8K@60Hz ( 4:4:4 ) |
| Input Port | DisplayPort Male |
| Output Port | DisplayPort Male |
| Bandwidth | 32.4Gbps |
| Support | Multi-Stream Transport |
| Overmold | PVC、ABS |
| Length | 1.2 Meters |
| Operation Environment | 0~60°C, Humidity<80% |
| Storage Temperature | -20~65°C |
| Weight (g) | 105 |
Specifications are subject to change. Please confirm critical values with us before ordering.
