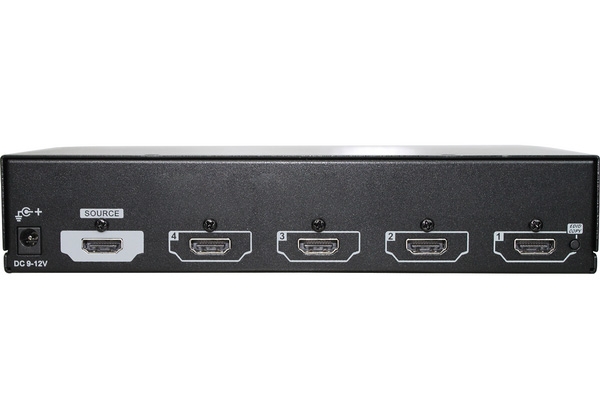

4-Port 4K HDMI Splitter with EDID and HDCP
Duplicates one HDMI source to four HDMI displays at up to 4K 30Hz.
VKSM-104
- One HDMI input to four HDMI outputs.
- Video up to 4K at 30Hz (4:4:4); also UHD 3840 x 2160, 1080p, WUXGA and UXGA.
- EDID Copy button reads EDID from a display, and the unit can also use its own internal EDID.
- HDCP 1.4 compliant, with 3D video support and Blu-ray readiness.
- Automatic power saving when the input signal is lost.
- Cascading supports additional outputs.

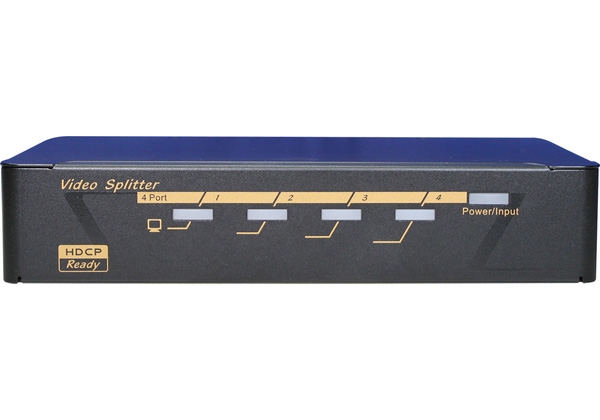

- A multicolour status LED and one LED per output show signal activity.
- Rack-mountable metal case, DC 12V power, 42 x 218 x 130 mm.
4K@60Hz 4:2:04K@30HzEDID ManagementHDCP 1.4
Overview
4-Port 4K HDMI Splitter with EDID and HDCP
The VKSM-104 distributes one HDMI input to four HDMI outputs, and it can copy EDID from a connected display so every screen receives a suitable signal. It is HDCP compliant and rack-mountable, and it can be cascaded for more outputs. It fits signage, showrooms and meeting-room installations.
At a glance
- Category
- Video Switches & Splitters
- Video interface
- HDMI
- Ports
- 4 ports
- Max. resolution
- 4K@30Hz (4:4:4)
- HDCP
- HDCP 1.4
Features
- One HDMI input to four HDMI outputs.
- Video up to 4K at 30Hz (4:4:4); also UHD 3840 x 2160, 1080p, WUXGA and UXGA.
- EDID Copy button reads EDID from a display, and the unit can also use its own internal EDID.
- HDCP 1.4 compliant, with 3D video support and Blu-ray readiness.
- Automatic power saving when the input signal is lost.
- Cascading supports additional outputs.
- A multicolour status LED and one LED per output show signal activity.
- Rack-mountable metal case, DC 12V power, 42 x 218 x 130 mm.
Specifications
| Model Name | VKSM-104 |
|---|---|
| Video Resolution (Max.) | 4K@30Hz (4:4:4) |
| Video Input | HDMI x 1 |
| Video Output | HDMI x 4 |
| Push Buttons | EDID Copy x 1 |
| LED Indicator | Status LED x 1 (Multi-Color) Video Output x 4 |
| HDCP Compliance | HDCP 1.4 |
| Power Supply | DC 12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| Dimension H x W x D (mm) | 42 x 218 x 130 |
| Weight (g) | 910 |
Specifications are subject to change. Please confirm critical values with us before ordering.
Connection
