4K HDMI HDBaseT Repeater with Auto Switch, IR, LAN and Serial, 100 m
Four-input auto-switching HDBaseT repeater that feeds a local display and a remote HDBaseT link.
EVBMN-1492X
- Auto-switches between four inputs (three HDMI, one HDBaseT) and feeds both the local HDMI display and the remote HDBaseT output.
- HDBaseT input lets the unit act as a repeater to lengthen the overall distance.
- Reach is 100 m at 1080p and 70 m at 4K over CAT.5e/6/7.
- Auto-switch logic means first-time users need no setup procedure.
- Video inputs support resolutions up to 4K at 30 Hz (4:4:4); HDCP 1.4 compliant.
- Uncompressed HDBaseT video with low latency.
- Audio and video EDID management, with EDID copy for local and remote displays.
- Bidirectional serial extension with selectable routing, IR extension and LAN extension; PoC power.
LAN Extension4K@60Hz 4:2:04K@30HzBidirectional IR ExtensionRS-232 ExtensionRS-232 ControlIR ControlEDID ManagementHDCP 1.4

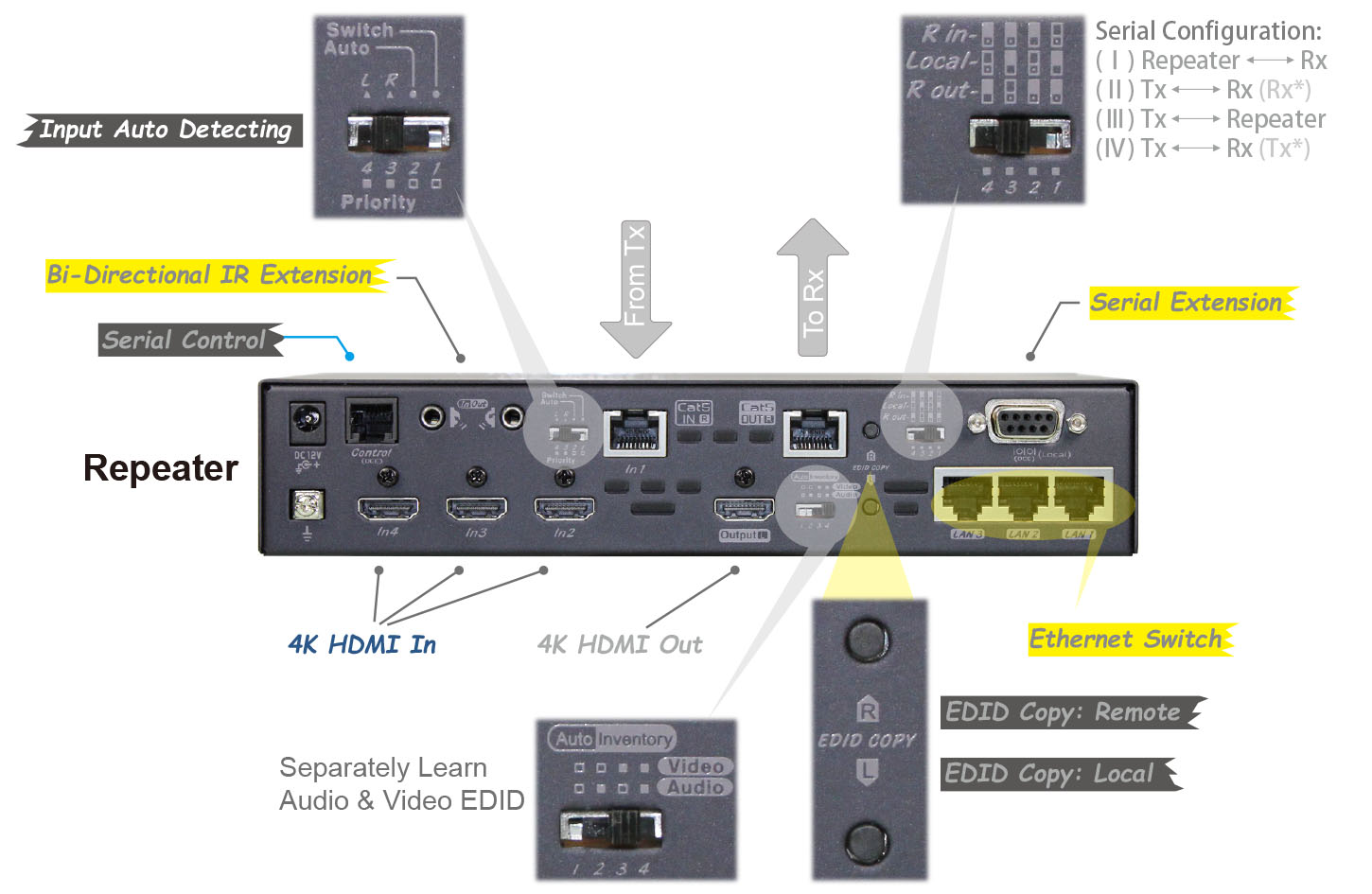

Overview
4K HDMI HDBaseT Repeater with Auto Switch, IR, LAN and Serial, 100 m
The EVBMN-1492X selects among three HDMI inputs and one HDBaseT input, then outputs to a local HDMI display and a remote HDBaseT receiver. Because it accepts HDBaseT in, it can also extend an existing run beyond a single cable limit. IR, serial and LAN pass-through make it a fit for boardrooms, classrooms and small offices.
At a glance
- Category
- HDBaseT Extenders
- Video interface
- HDMI
- Max. resolution
- 3840x2160@30Hz ( 4:4:4 )
- Distance
- 70M@4K, 100M@1080P
- HDCP
- HDCP 1.4
Features
- Auto-switches between four inputs (three HDMI, one HDBaseT) and feeds both the local HDMI display and the remote HDBaseT output.
- HDBaseT input lets the unit act as a repeater to lengthen the overall distance.
- Reach is 100 m at 1080p and 70 m at 4K over CAT.5e/6/7.
- Auto-switch logic means first-time users need no setup procedure.
- Video inputs support resolutions up to 4K at 30 Hz (4:4:4); HDCP 1.4 compliant.
- Uncompressed HDBaseT video with low latency.
- Audio and video EDID management, with EDID copy for local and remote displays.
- Bidirectional serial extension with selectable routing, IR extension and LAN extension; PoC power.
Specifications
| Model Name | Repeater Unit |
|---|---|
| EVBMN-1492X | |
| MAX.Resolution | 3840x2160@30Hz ( 4:4:4 ) 3840x2160@60Hz ( 4:2:0 ) |
| Video Inputs | HDMI x 3 RJ45 x 1 ( HDBaseT ) |
| Video Outputs | HDMI x 1 ( Local ) RJ45 x 1 ( HDBaseT ) |
| IR Extension | 3.5mm IR Jack x 1 ( In ) 3.5mm IR Jack x 1 ( Out ) |
| IR Control | IR Sensor x 1 ( Front ) |
| Serial Extension | DB9 x 1 ( DCE ) |
| Serial Control | RJ11 x 1 |
| LAN Extension | RJ45 x 3 |
| Slide Switch | EDID Setting x 1 ( Audio / Video / Inventory ) Input Auto Detecting Function x 1 ( 4 Mode ) Serial Configuration x 1 ( 4 Mode ) |
| Push Button | Function x 1 Source Selection x 4 EDID Copy: Local x 1 + Remote x 1 |
| LED Indicator | Status LED x 1 Input LED x 4 Ouptut LED x 2 |
| HDCP Compliance | HDCP 1.4 |
| HDBaseT Interface | RJ45 x 1 ( CAT.5e/6/7 ) |
| Extension Distance | 70M@4K 100M@1080P |
| Power Supply | DC 12V ( PoC ) |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 35 x 190 x 125 |
| Weight (g) | 1050 |
Specifications are subject to change. Please confirm critical values with us before ordering.

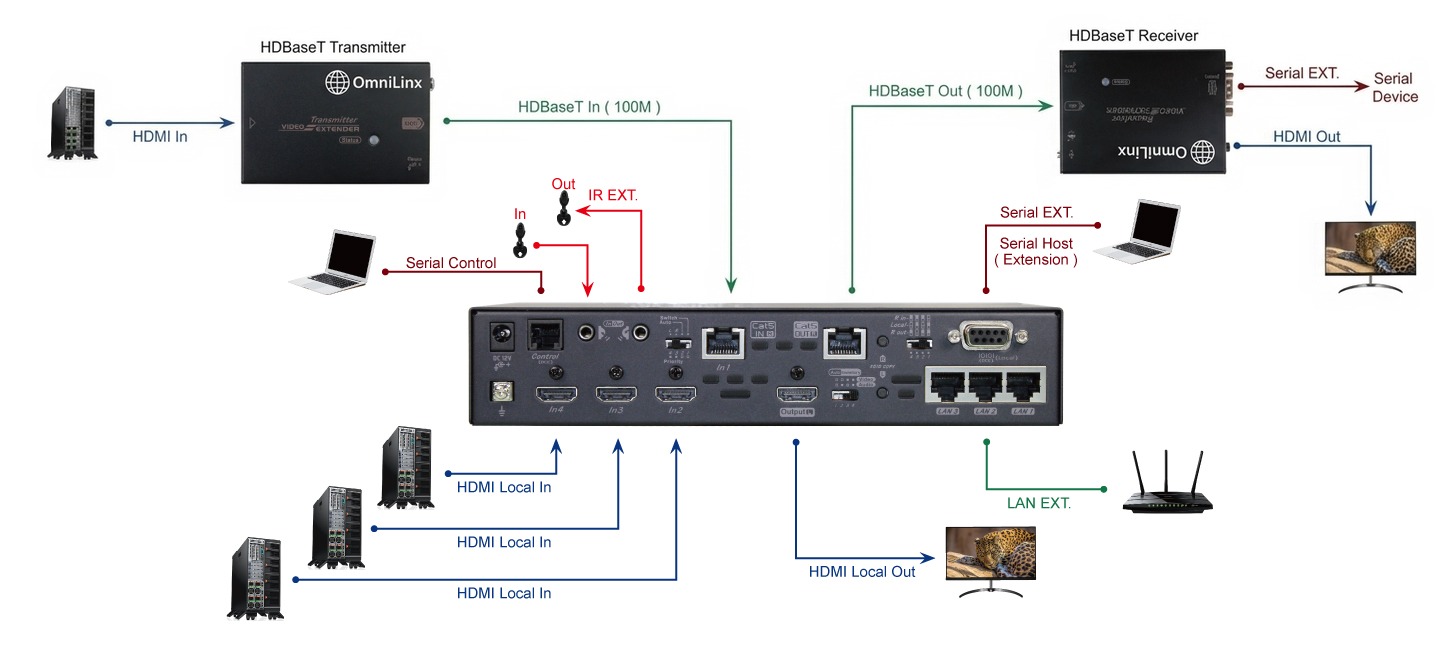

Connection
