HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter and Local Out, 100 m (PoC)
Two-input HDMI switcher that feeds four HDBaseT outputs plus a local display over 100 m.
EVBM-1094L
- Auto-selects between two video inputs and sends the picture to a local display and four remote displays over HDBaseT.
- Auto-switch behaviour requires no learning for first-time users.
- Uncompressed HDBaseT video with low latency.
- Inputs support resolutions up to 1080p at 60 Hz (4:4:4); HDCP 1.4 compliant.
- Up to 100 m at 1080p on each of the four RJ45 HDBaseT outputs.
- PoC allows power to flow from transmitter to receiver or the reverse.

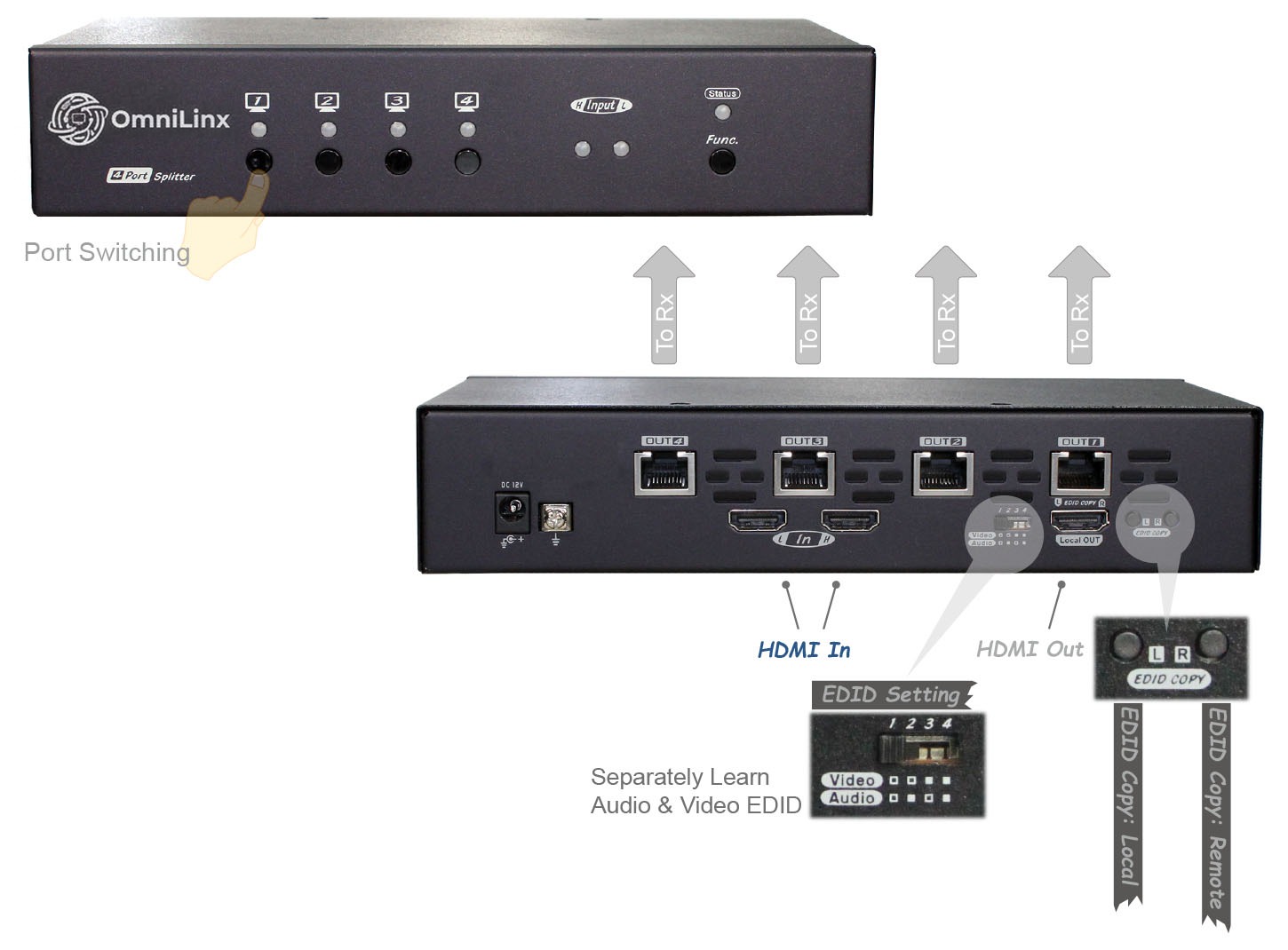

- Front IR sensor, RJ11 serial control, EDID copy buttons and input auto-detect slide switch.
IR ControlEDID ManagementHDCP 1.4
Overview

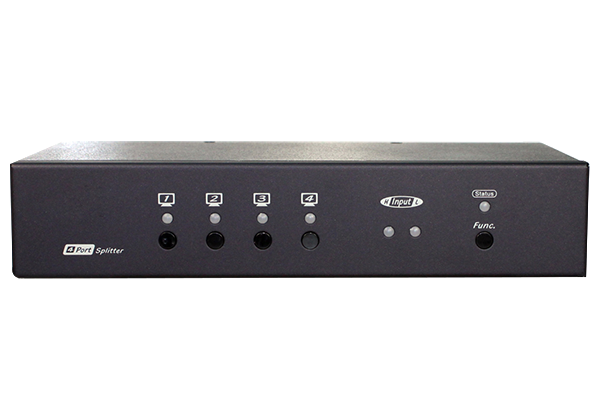

HDMI HDBaseT Transmitter, 2-Input Switch with 4-Way Splitter and Local Out, 100 m (PoC)
The EVBM-1094L auto-switches between two HDMI sources and distributes the picture to one local display and four remote HDBaseT receivers. Uncompressed 1080p video runs up to 100 m per CAT.5e/6/7 link. It is designed for offices, boardrooms and classrooms where one source must reach several screens.
At a glance
- Category
- HDBaseT Extenders
- Video interface
- HDMI
- Ports
- 2 ports
- Max. resolution
- Full HD (1080p@60Hz)
- Distance
- 100M@1080P
- HDCP
- HDCP 1.4
Features
- Auto-selects between two video inputs and sends the picture to a local display and four remote displays over HDBaseT.
- Auto-switch behaviour requires no learning for first-time users.
- Uncompressed HDBaseT video with low latency.
- Inputs support resolutions up to 1080p at 60 Hz (4:4:4); HDCP 1.4 compliant.
- Up to 100 m at 1080p on each of the four RJ45 HDBaseT outputs.
- PoC allows power to flow from transmitter to receiver or the reverse.
- Front IR sensor, RJ11 serial control, EDID copy buttons and input auto-detect slide switch.
Specifications
| Model Name | Transmitter |
|---|---|
| EVBM-1094L | |
| MAX.Resolution | Full HD (1080p@60Hz) |
| Video Input | HDMI x 4 |

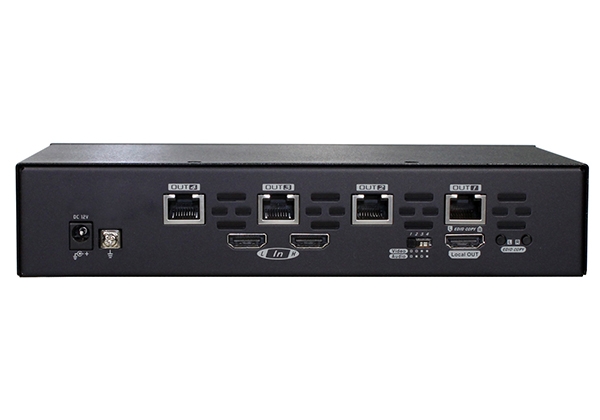

| Video Output | RJ-45 x 4 HDMI x 1 |
| IR Control | IR Sensor x 1 (Front) |
| Serial Control | RJ11 x 1 |
| Slide Switch | Input Auto Detecting Function x 1 ( 4 Mode ) EDID Setting x 1 |
| Push Buttons | Video Switch x 4 Func x 1 EDID Copy x 2 |
| LED Indicator | Status LED x 1 Input LED x 4 Output LED x 4 |
| HDCP Compliance | HDCP 1.4 |
| HDBaseT Interface | RJ45 x 4 ( CAT.5e/6/7 ) |
| Extension Range | 100M@1080P |
| Power Supply | DC 12V ( PoC ) |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 35 x 190 x 125 |
| Weight (g) | 1250 |
Specifications are subject to change. Please confirm critical values with us before ordering.

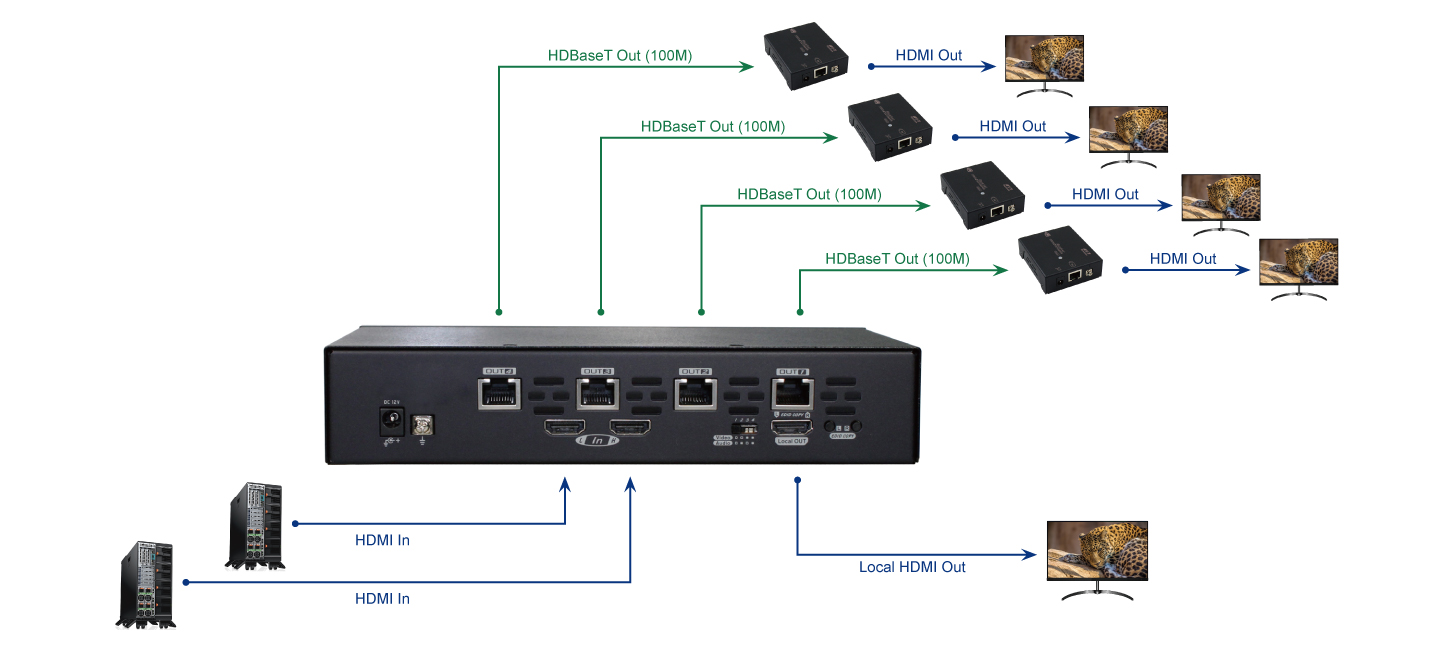

Connection
