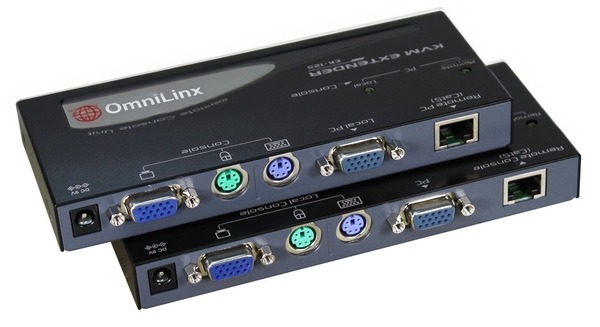

Dual-Console VGA KVM Extender over CAT.x, 150 m, PS/2 and USB
VGA KVM extender that places a keyboard, mouse and monitor up to 150 m from the computer over CAT5 cable.
EKP-222
- Connects the computer unit and console station through CAT5 UTP cable with RJ45 connectors.
- Places keyboard, mouse and monitor up to 150 m from the computer.
- Accepts either a PS/2 or a USB console.
- Hotkeys adjust video compensation to suit the cable length in use, and also synchronise the video resolution between the attached computers.
- Lets two users work on one or two computers from local and remote positions.
- Audible beeps confirm key commands, with status indications on the unit.
- Works with most mice, including Microsoft IntelliMouse (Pro), Explorer and optical models.
- Compatible with XGA, VGA and SVGA video systems.
Overview
Dual-Console VGA KVM Extender over CAT.x, 150 m, PS/2 and USB
The EKP-222 links a computer unit to a console station over standard Category 5 UTP cabling, moving the user's desk away from the machine. A dual-station design lets two users, one local and one remote, share one or two computers. It fits control rooms, labs and offices that want computers kept out of the work area.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- VGA
- Max. resolution
- 1024 x 768 @ 150m
Features
- Connects the computer unit and console station through CAT5 UTP cable with RJ45 connectors.
- Places keyboard, mouse and monitor up to 150 m from the computer.
- Accepts either a PS/2 or a USB console.
- Hotkeys adjust video compensation to suit the cable length in use, and also synchronise the video resolution between the attached computers.
- Lets two users work on one or two computers from local and remote positions.
- Audible beeps confirm key commands, with status indications on the unit.
- Works with most mice, including Microsoft IntelliMouse (Pro), Explorer and optical models.
- Compatible with XGA, VGA and SVGA video systems.
Specifications
| Model Name | EKP-222 |
|---|---|
| Connection | CAT5-RJ45-Female |
| Console (Station) Unit Connectors | Console Keyboard: miniDIN6, Female x 1 Mouse: miniDIN6, Female x 1 Monitor: HDB15 Female x 1 (Blue) Computer HDB15 Female x 1 (Blue) PS/2 Interface |
| Computer Unit Connectors | Console Keyboard: miniDIN6, Female x 1 Mouse: miniDIN6, Female x 1 Monitor: HDB15 Female x 1 (Blue) Computer HDB15 Female x 1 (Blue) for PS/2 Interface |
| Push Button | Control Status Selection |
| Video Resolution | 1024 x 768 @ 150m |
| Weight (g) | 305 - 315 |
| Power Consumption (Max.) | External Power Adapter DC 9V, 500mA |
| Dimensions H x W x D (mm) | 20 x 156 x 65 |
Specifications are subject to change. Please confirm critical values with us before ordering.

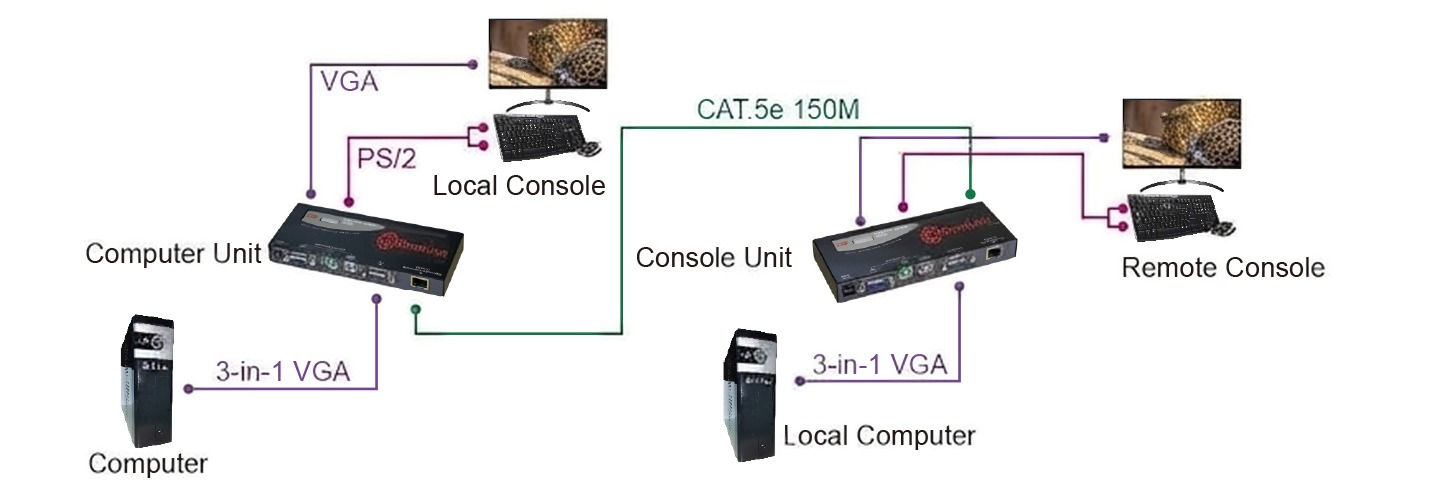

Connection
