HDMI over IP Extender Transmitter, H.264, with Serial and IR
Compressed HDMI transmitter that sends video across a standard 100 Mbps Ethernet network.
IPVXM-010L
- Sends H.264-compressed HDMI video over a 100 Mbps or faster LAN.
- Handles 1080p, 1080i, 720p and 720i, with a maximum of Full HD 1920 x 1080 and WUXGA 1920 x 1200 at 60 Hz.
- HDCP 1.4 compliant and Blu-ray ready, with 2-channel HDMI audio.
- A rotary DIP switch offers 99 channel settings for pairing transmitters with receivers, so up to 99 units can coexist on a system.
- Automatic EDID configuration, plus an EDID copy function.
- Control through Web (LAN), RS-232 pass-through, bidirectional 38-56 kHz IR and a GUI.
- Reach is network-based: up to three levels of switch hubs can be daisy-chained, with 100 m per hub link.
- An optional VESA mounting bracket allows attachment to a VESA-mounted display.
H.264RS-232 ControlIR ControlEDID ManagementHDCP 1.4
Overview
HDMI over IP Extender Transmitter, H.264, with Serial and IR

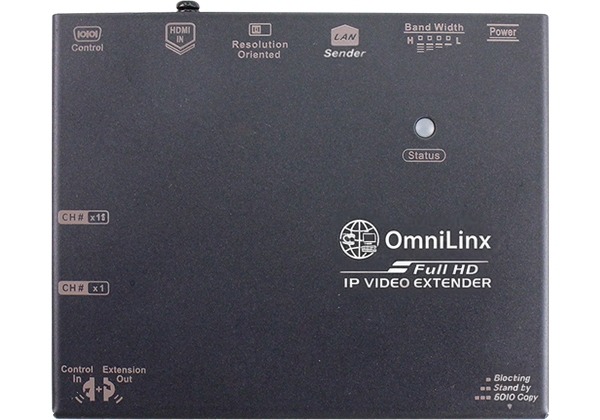

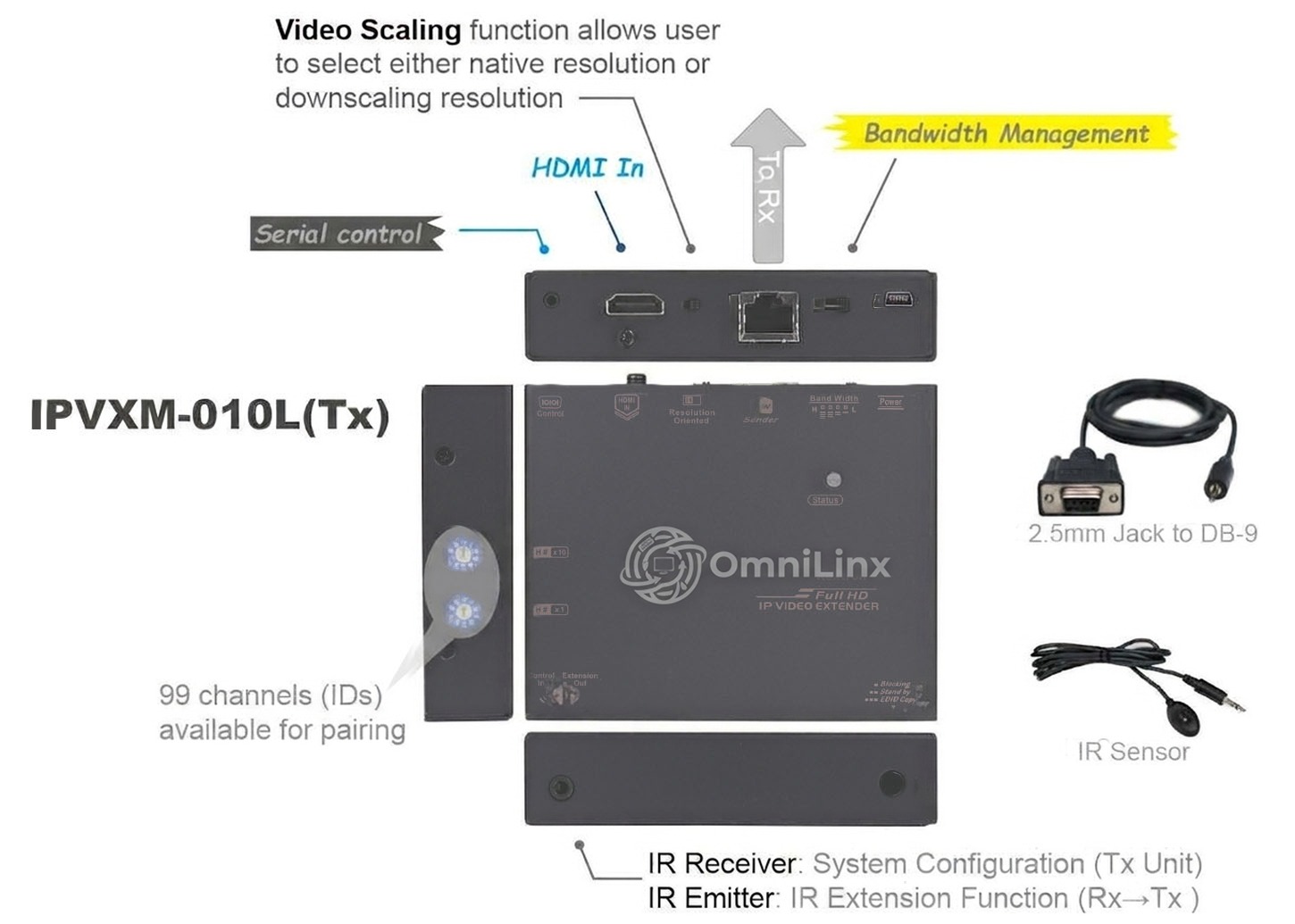

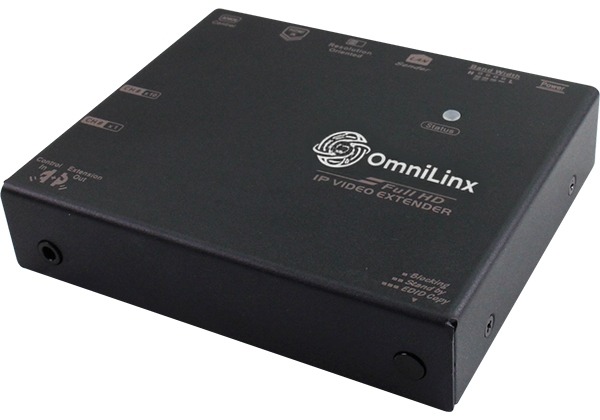

The IPVXM-010L is the transmitter unit of an HDMI-over-IP extension system. It encodes video as H.264 and carries it over ordinary Ethernet, so existing network infrastructure can serve as the signal path. It suits classrooms, retail displays and small AV installations where several screens share one LAN.
At a glance
- Category
- KVM & Video Extenders
- Video interface
- HDMI
- Max. resolution
- Full HD (1920 x 1080) @ 60 Hz
- Distance
- Ethernet-based network, (3 levels of Switch Hub can be Daisy-chained for system expansion, and, each switch hub can have 100 meters extension.)
Features
- Sends H.264-compressed HDMI video over a 100 Mbps or faster LAN.
- Handles 1080p, 1080i, 720p and 720i, with a maximum of Full HD 1920 x 1080 and WUXGA 1920 x 1200 at 60 Hz.
- HDCP 1.4 compliant and Blu-ray ready, with 2-channel HDMI audio.
- A rotary DIP switch offers 99 channel settings for pairing transmitters with receivers, so up to 99 units can coexist on a system.
- Automatic EDID configuration, plus an EDID copy function.
- Control through Web (LAN), RS-232 pass-through, bidirectional 38-56 kHz IR and a GUI.
- Reach is network-based: up to three levels of switch hubs can be daisy-chained, with 100 m per hub link.
- An optional VESA mounting bracket allows attachment to a VESA-mounted display.
Specifications
| Model Name | IPVXM-010L ( Transmitter ) |
|---|---|
| Video Resolution (Max.) | Full HD (1920 x 1080) @ 60 Hz WUXGA (1920 x 1200) @ 60 Hz |
| Video Input | HDMI x 1 |
| Video Output | N/A |
| IR Extension | Yes ( Rx to Tx ) |
| LEDs (Power / Connection Status) | x 1 |
| Control Methods | Web (LAN), Serial, IR, GUI |
| System Expandability (Maximum Number) | 99 |
| LAN Type | 100MB above LAN |
| Maximum Distance | Ethernet-based network (3 levels of Switch Hub can be Daisy-chained for system expansion, and each switch hub can have 100 meters extension.) |
| Power Supply | DC 5V,1 A (Mini USB) |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| H x W x D (mm) | 23 x 88 x 107 |
| Weight (g) | 340 ~ 360 |
Specifications are subject to change. Please confirm critical values with us before ordering.
