4-Port VGA Switch with Dual VGA Output
Selects one of four VGA sources and sends it to two VGA outputs.
VSA-401
- Four VGA inputs, two VGA outputs.
- Resolutions up to 1920x1440 at 60Hz, with 1920x1200 and 1920x1080 also supported (4:4:4).
- Works with VGA, SVGA and multi-sync monitors.
- Selection by front-panel buttons or hotkeys from a PS/2 keyboard or keypad.
- Auto scan detects the connected computers.
- LEDs show power and the active input.
- Metal housing, DC 9-12V power, 220 x 95 x 41 mm and 730 g.

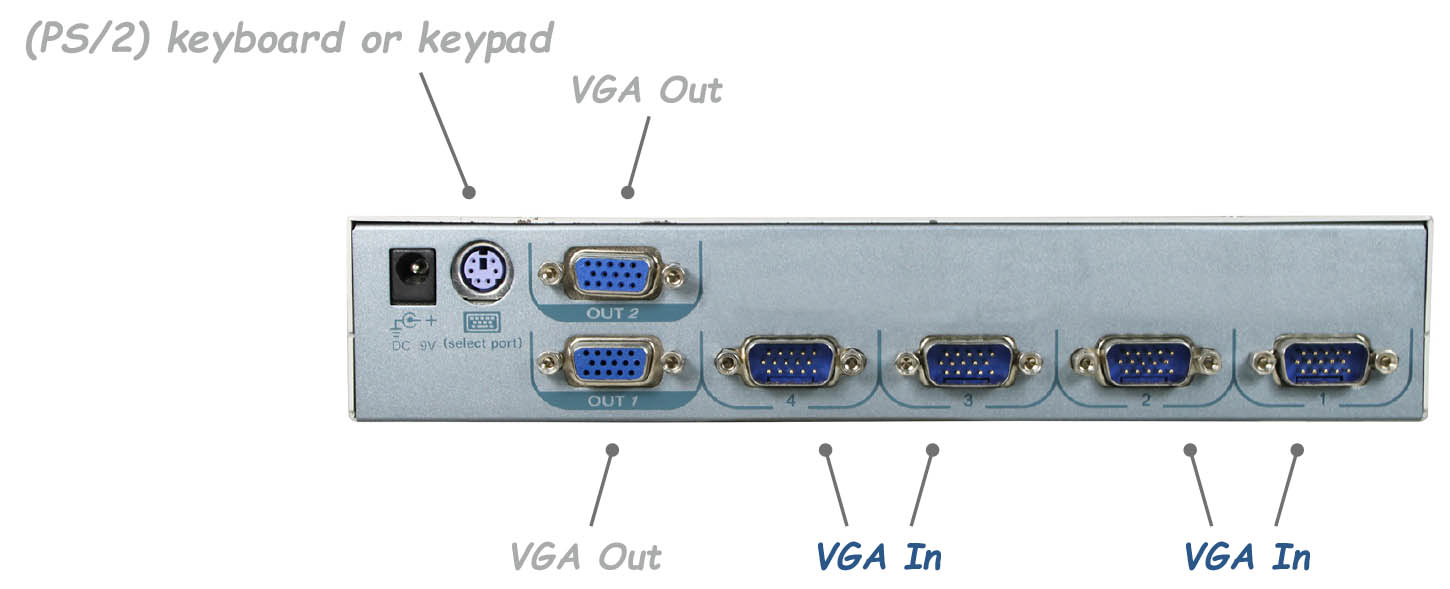

Overview

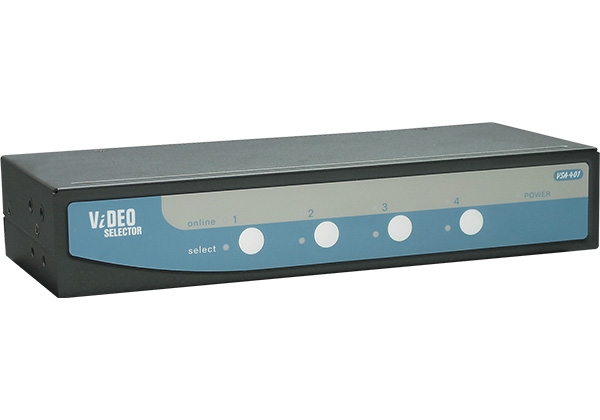

4-Port VGA Switch with Dual VGA Output
The VSA-401 accepts four VGA sources and displays the chosen one on two VGA outputs, such as a monitor and a projector. Selection works by front buttons, or by hotkey from a PS/2 keyboard or keypad. It suits meeting rooms, classrooms and presentation setups.
At a glance
- Category
- Video Switches & Splitters
- Video interface
- VGA
- Ports
- 4 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 )
Features
- Four VGA inputs, two VGA outputs.
- Resolutions up to 1920x1440 at 60Hz, with 1920x1200 and 1920x1080 also supported (4:4:4).
- Works with VGA, SVGA and multi-sync monitors.
- Selection by front-panel buttons or hotkeys from a PS/2 keyboard or keypad.
- Auto scan detects the connected computers.
- LEDs show power and the active input.
- Metal housing, DC 9-12V power, 220 x 95 x 41 mm and 730 g.
Specifications
| Model Name | VSA-401 |
|---|---|
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ) 1920x1200@60Hz ( 4:4:4 ) 1920x1080@60Hz ( 4:4:4 ) |
| Video Input | VGA x 4 |
| Video Output | VGA x 2 |
| Push Button | Port Selection x 4 |
| LED Indicator | Power x 1 Port Selection x 4 |
| Power Supply | DC 9~12V |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| Dimension H x W x D (mm) | 220 x 95 x 41 |
| Weight (g) | 730 |
Specifications are subject to change. Please confirm critical values with us before ordering.
Connection
