2-Port VGA KVM Switch with USB, Audio and Hotkey Control
Compact two-computer VGA KVM switch with audio and bus-powered operation.
UMHA-2
- Switches two VGA computers, connected over USB or PS/2, with a single keyboard, mouse and monitor.
- Resolution up to 1920x1440 at 60Hz (4:4:4), DDC2B compatible.
- Audio and microphone selection follows the active computer.
- Keyboard and mouse emulation supports reliable PC boot, and the keyboard and mouse are hot-pluggable.
- Selection by hotkey or push button, with auto scan between computers.
- Powered from the connected PCs, so no external adapter is needed.
- Keyboard state is saved and restored on each switch; the unit is independent of operating system and applications.
- Works with common wheel and optical mice.
- Secure-fit cables are included, in sets of two or four 1-to-2 USB cables depending on the model.
- All cables connect at the rear; the metal case measures 20 x 70 x 155 mm.
USB HIDHotkey Control
Overview

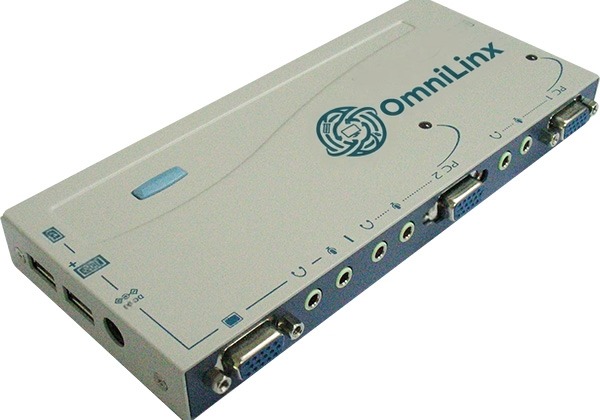

2-Port VGA KVM Switch with USB, Audio and Hotkey Control
The UMHA-2 is a small KVM switch that shares one keyboard, mouse, VGA monitor and stereo audio and microphone between two computers. Cabling goes to the rear for a tidy desk, and it draws power from the attached computers. It is intended for small desks and lab benches that need a simple, low-cost switch.
At a glance
- Category
- KVM Switches
- Video interface
- VGA
- Ports
- 2 ports
- Max. resolution
- 1920x1440@60Hz ( 4:4:4 ), DDC2B
Features
- Switches two VGA computers, connected over USB or PS/2, with a single keyboard, mouse and monitor.
- Resolution up to 1920x1440 at 60Hz (4:4:4), DDC2B compatible.
- Audio and microphone selection follows the active computer.
- Keyboard and mouse emulation supports reliable PC boot, and the keyboard and mouse are hot-pluggable.
- Selection by hotkey or push button, with auto scan between computers.
- Powered from the connected PCs, so no external adapter is needed.
- Keyboard state is saved and restored on each switch; the unit is independent of operating system and applications.
- Works with common wheel and optical mice.
- Secure-fit cables are included, in sets of two or four 1-to-2 USB cables depending on the model.
- All cables connect at the rear; the metal case measures 20 x 70 x 155 mm.
Specifications
| Model Name | UMHA-2 |
|---|---|
| Computer/Server Ports (input) | VGA x 2 ( USB Combo Port ) Audio in x 2 Audio out x 2 |
| Console Ports (output) | VGA x 1 USB HID Type A x 2 Audio in x 1 Audio out x 1 |
| Video Resolution (Max.) | 1920x1440@60Hz ( 4:4:4 ), DDC2B |
| Push Buttons | Port Selection x 1 |
| Control Methods | Hotkey / Push Button |
| Hot Plug-and-Play | Yes |
| LED Indicators | x 2 |
| Operation Environment | DC 9V |
| Storage Temperature | 0~40°C, Humidity<80% |
| Power Supply | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 20 x 70 x 155 |
Specifications are subject to change. Please confirm critical values with us before ordering.

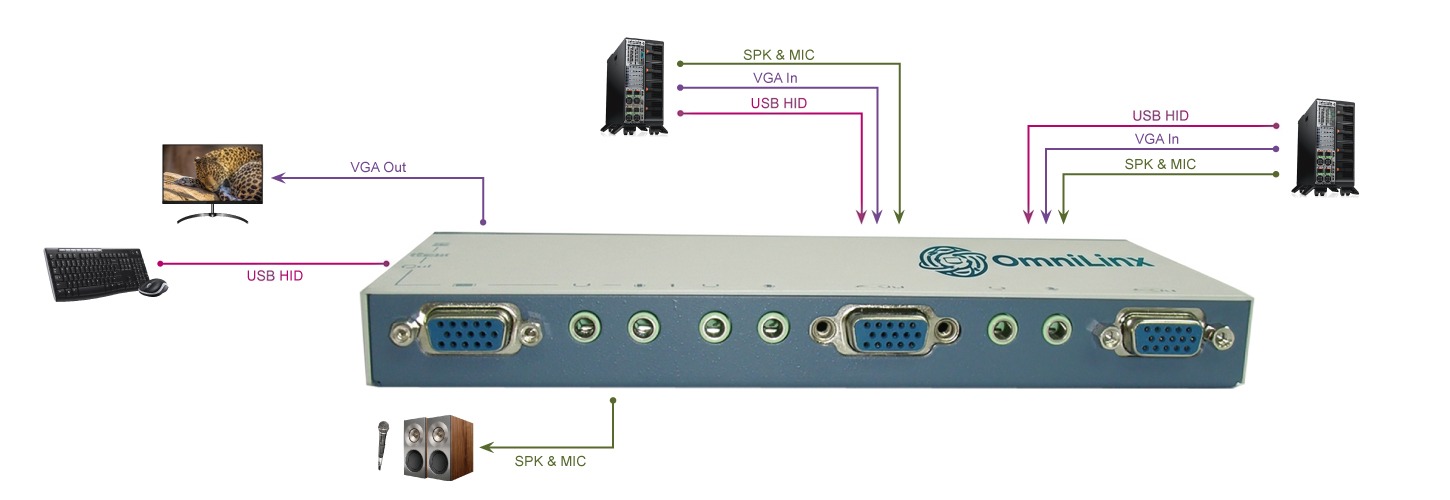

Connection
