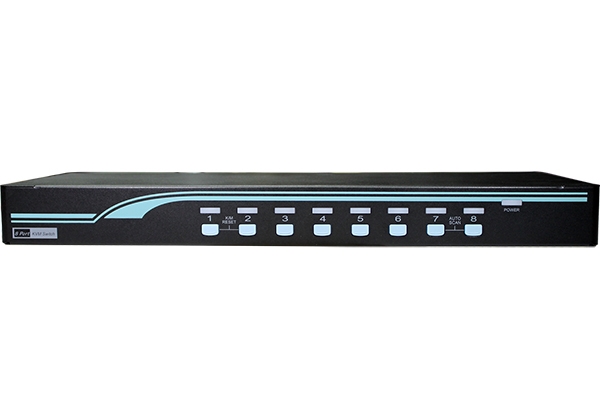

8-Port DVI KVM Switch with OSD, USB and Built-In Power
1U rack KVM switch for eight DVI computers with on-screen menu and internal power supply.
DUNV-108QD
- Eight DVI computers over USB, switched from one USB keyboard, mouse and monitor.
- Console video output on DVI, with an additional VGA output.
- Video up to 1920x1200 at 60Hz (4:4:4) and 1920x1080 at 60Hz; HDCP 1.4; compatible with common resolutions from XGA to WUXGA.
- OSD for naming and selecting computers, status checks and auto scan, with programmable scan filters.
- Password protection per computer; settings and names are kept in non-volatile memory.
- Hotkey and front-panel control, with auto scan intervals of 3, 8, 15 or 30 seconds.
- EDID function supports DVI and VGA monitors and simplifies setup; DDC2B compatible.
- Keyboard and mouse are hot-pluggable, keyboard state is saved and restored, and Sun keyboard emulation is included.
- Built-in power supply for AC 100-240V, in a metal 44 x 438 x 180 mm case.
USB HIDHotkey ControlEDID ManagementHDCP 1.4
Overview
8-Port DVI KVM Switch with OSD, USB and Built-In Power
The DUNV-108QD connects eight DVI computers to one USB keyboard, mouse and monitor. An on-screen display provides naming, selection and password protection, and an internal power supply removes the need for an adapter. Its EDID handling supports both DVI and VGA monitors, so it fits server rooms and control racks.
At a glance
- Category
- KVM Switches
- Video interface
- DVI
- Ports
- 8 ports
- Max. resolution
- 1920 x 1200 @ 60Hz (4:4:4)
- HDCP
- HDCP 1.4
Features
- Eight DVI computers over USB, switched from one USB keyboard, mouse and monitor.
- Console video output on DVI, with an additional VGA output.
- Video up to 1920x1200 at 60Hz (4:4:4) and 1920x1080 at 60Hz; HDCP 1.4; compatible with common resolutions from XGA to WUXGA.
- OSD for naming and selecting computers, status checks and auto scan, with programmable scan filters.
- Password protection per computer; settings and names are kept in non-volatile memory.
- Hotkey and front-panel control, with auto scan intervals of 3, 8, 15 or 30 seconds.
- EDID function supports DVI and VGA monitors and simplifies setup; DDC2B compatible.
- Keyboard and mouse are hot-pluggable, keyboard state is saved and restored, and Sun keyboard emulation is included.
- Built-in power supply for AC 100-240V, in a metal 44 x 438 x 180 mm case.
Specifications
| Model Name | DUNV-108QD |
|---|---|

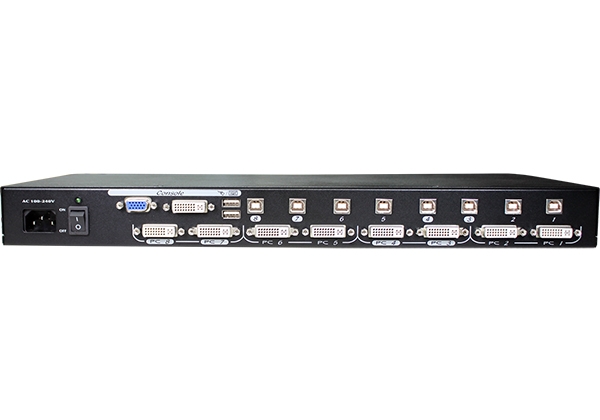

| Computer/Server Ports (input) | DVI x 8 ( Single Display x 8 PCs ) USB Type B x 8 |
| Console Ports (output) | DVI x 1 ( Single Display ) VGA X 1 ( Single Display ) USB HID Type A x 2 |
| Video Resolution (Max.) | 1920 x 1200 @ 60Hz (4:4:4) 1920 x 1080 @ 60Hz (4:4:4) |
| Push Buttons | Port Selection x 8 |
| HDCP Compliance | HDCP 1.4 |
| Control Methods | Hotkey / Push Button |
| LED Indicator (Power / Status) | Power x 1 Status x 8 |
| Automatic scan interval | 3, 8, 15, 30 seconds |
| Power Supply | Built-In Power ( AC 100-240V ) |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 44 x 438 x 180 |
| Weight (g) | 2600 |
Specifications are subject to change. Please confirm critical values with us before ordering.
