4-Port Dual-Link DVI KVM Switch with Serial and Audio
Four-computer dual-link DVI KVM switch that also switches RS-232 devices and stereo audio.
DUKGS-114Q
- Four DVI computers share one USB keyboard, mouse and monitor, plus an RS-232 serial device.
- Dual-link DVI video up to 2560 x 1600 at 60Hz (4:4:4), covering WUXGA and WQXGA; also 1920x1080 at 60Hz. HDCP 1.4.
- Serial ports on every computer and on the console side let RS-232 devices follow the selected computer.
- 3.5mm stereo audio in and out, plus a USB console.
- Select by front-panel button or hotkey; a buzzer confirms each switch, and auto scan starts from the front buttons.
- Scan intervals of 3, 8, 15 or 30 seconds.
- A rear FUNC button adjusts the video signal strength.
- No drivers needed, plug-and-play keyboard and mouse, Windows and Mac hosts.
- Built-in AC 100-240V power supply and metal enclosure, 44 x 438 x 180 mm.
USB 2.0USB HIDHotkey ControlEDID ManagementHDCP 1.4
Overview
4-Port Dual-Link DVI KVM Switch with Serial and Audio
The DUKGS-114Q shares one USB keyboard, mouse, dual-link DVI monitor and a serial device among four computers. It handles resolutions up to 2560 x 1600 and carries stereo audio, and an internal power supply is included. The serial switching suits industrial control and lab environments.
At a glance
- Category
- KVM Switches
- Video interface
- DVI
- Ports
- 4 ports
- Max. resolution
- 2560 x 1600 @ 60Hz (4:4:4)
- HDCP
- HDCP 1.4
Features
- Four DVI computers share one USB keyboard, mouse and monitor, plus an RS-232 serial device.
- Dual-link DVI video up to 2560 x 1600 at 60Hz (4:4:4), covering WUXGA and WQXGA; also 1920x1080 at 60Hz. HDCP 1.4.
- Serial ports on every computer and on the console side let RS-232 devices follow the selected computer.
- 3.5mm stereo audio in and out, plus a USB console.

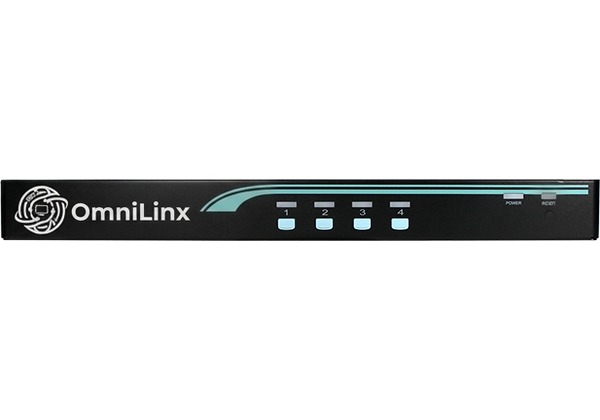

- Select by front-panel button or hotkey; a buzzer confirms each switch, and auto scan starts from the front buttons.
- Scan intervals of 3, 8, 15 or 30 seconds.
- A rear FUNC button adjusts the video signal strength.
- No drivers needed, plug-and-play keyboard and mouse, Windows and Mac hosts.
- Built-in AC 100-240V power supply and metal enclosure, 44 x 438 x 180 mm.
Specifications
| Model Name | DUKGS-114Q |
|---|---|

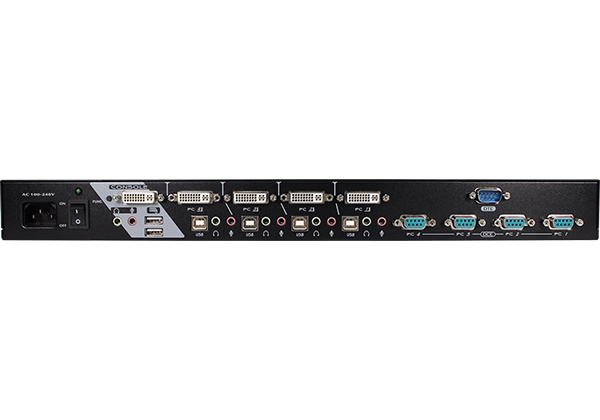

| Computer/Server Ports (input) | DVI x 4 ( Single Display x 4 PCs ) USB Type B x 4 Audio Jack in x 4 Audio Jack out x 4 RS232 x 4 |
| Console Ports (output) | DVI x 1 ( Single Display ) USB HID Type A x 2 Audio Jack in x 1 Audio Jack out x 1 RS232 x 1 |
| Video Resolution (Max.) | 2560 x 1600 @ 60Hz (4:4:4) 1920 x 1080 @ 60Hz (4:4:4) |
| Push Buttons | Port Selection x 4 |
| HDCP Compliance | HDCP 1.4 |
| Control Methods | Hotkey / Push Button |
| LED Indicator (Power / Status) | Power x 1 Status x 4 |
| Automatic scan interval | 3, 8, 15, 30 seconds |
| Power Supply | Built-In Power ( AC 100-240V ) |
| Operation Environment | 0~40°C, Humidity<80% |
| Storage Temperature | -20~60°C |
| Enclosure | Metal |
| H x W x D (mm) | 44 x 438 x 180 |
| Weight (g) | 2600 |
Specifications are subject to change. Please confirm critical values with us before ordering.
Connection
